ADDING AND REMOVING SENSORS
•
Additional sensors of various types can be
purchased for the Console.
•
Up to eight sensors can be used with each Console.
•
Each accessory is supplied with
installation and programming
instructions. The programming
information supplied pertains to the
16-sensor SSD system. Use the
following programming information
when using the accessories with the
8-sensor SSD8 system.
•
The two sensors supplied with the unit are
pre-programmed into sensor locations #1 and #2.
•

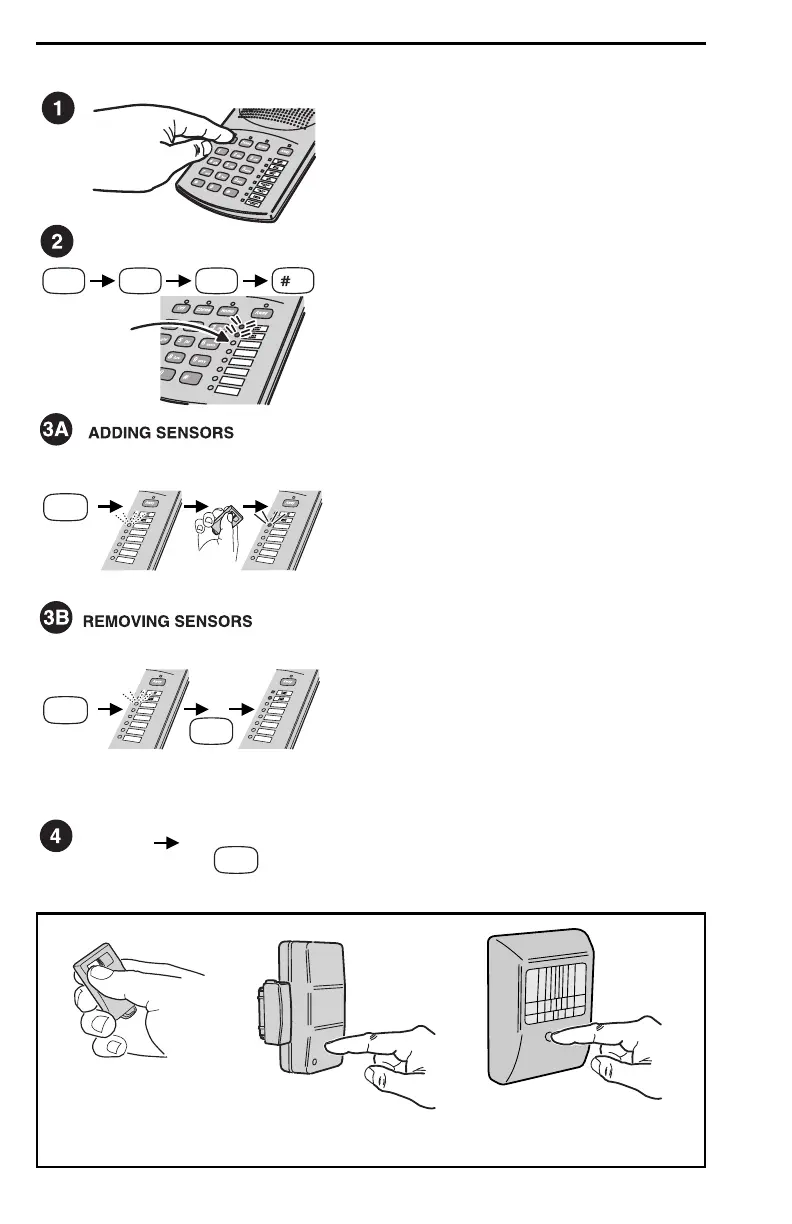

To add or remove sensors:
1. Start with the system in the Off Mode.
2. Enter your secret code and press [#]. A gong
followed by four beeps should sound. All occupied
sensor locations will have sensor status indicators lit.
3A. TO ADD SENSORS: Press the number (1-8) of
a vacant sensor location. The sensor status indicator
for that sensor number will start flashing. Activate the
sensor (details in the accessory instructions). A
“bing” should sound and the sensor status indicator
should light steady, showing that the location is now
occupied. NOTE: A double-buzz sound means that
the location is occupied, choose a vacant location.
3B. TO REMOVE SENSORS: Press the number
(1-8) of the sensor to remove. The sensor status
indicator for that sensor number will start flashing.
Press [CHIME], a “bing” should sound, and the
indicator should go out, showing that the location is
now vacant.
4. Repeat Step 3A or 3B for additional sensors.
When finished, press and hold [OFF] for 2 seconds,
a “gong” will sound and the system will return to the
Off Mode.
12 OF 16
YOUR SECRET CODE, THEN [#]
def
3
STATUS
LIGHT
BLINKS
def
3
SELECT A
SENSOR # (1-8)
STATUS
LIGHT
BLINKS
PRESS
CHIME
STATUS
LIGHT
OUT
Chime
Off
WHEN
FINISHED
PRESS & HOLD [OFF]
FOR 2 SECONDS
SELECT
OFF MODE
CHECK STATUS
INDICATORS
FOR VACANCIES
(LIGHTS THAT
ARE OFF)
SELECT A VACANT
SENSOR # (1-8)
ACTIVATE
SENSOR
STATUS
LIGHT
SOLID
ACTIVATE REMOTE BY
PRESSING LEFT BUTTON
ACTIVATE DOOR/WINDOW
SENSOR BY PRESSING CASE
ACTIVATE MOTION DETECTOR
BY PRESSING THE WALK
TEST BUTTON
