Press [ENT] to open the selection window. Select each setting and press [ENT].
Press [ACCEPT] to enter when all selections are finished.
• Factory default setting of 3. SEND POLAR DATA
1. ROTATION: CW
4.1.3.2 Reading data setting

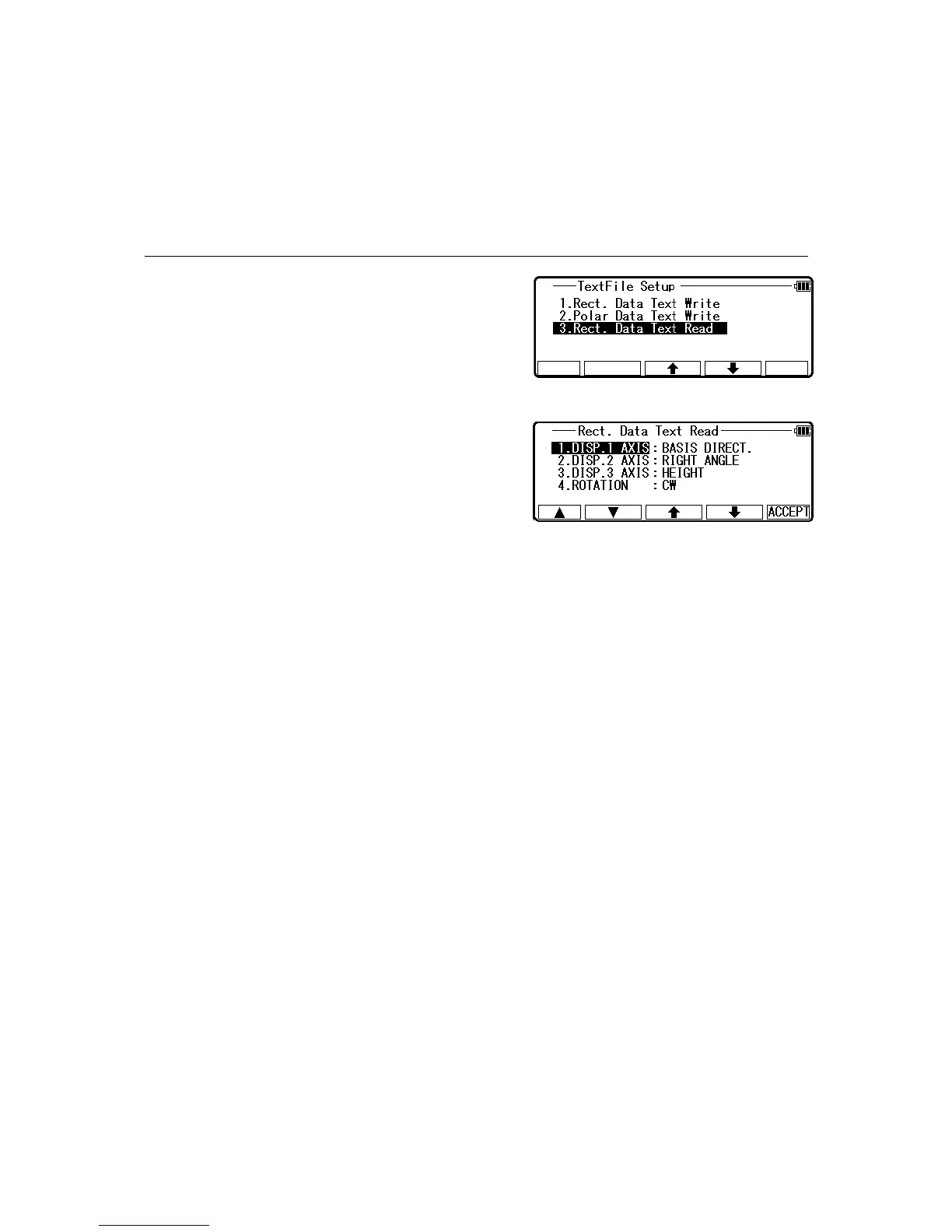

Select the 4. TextFile Setup and press [ENT] to view
the TextFile Setup screen.
Select the 3. Rect. Data Text Read and press [ENT]
to view the following screen. Press [ENT] to open
the selection window. Select each setting and press
[ENT].
Press [ACCEPT] to enter when all selections are finished.
• DISP.# AXIS: BASIS DIRECT., RIGHT ANGLE, or HEIGHT is selected when
data is transferred between the TS and PC. (cf.“5.5.2 Coordinate axis definition”)
They are used for matching coordinate system between definition in the instrument and
definition in the external device when they are different. However, it is necessary to match
the definition of the “Coord. Axis” between settings in “Rect. Data Text Read” and settings
in “Coordinate axis definition” when same coordinate systems are used.
• Factory default setting of RECEIVING
1. DISP.1 AXIS: BASIS DIRECT.
2. DISP.2 AXIS: RIGHT ANGLE
3. DISP.3 AXIS: HEIGHT
4. ROTATION: CW
28
