CHAPTER 2 MAINTENANCE LH50DU SERVICE MANUAL 19.1
CHAPTER 2 MAINTENANCE PAGE. 2-
necessary.
REAR SUSPENSION
Compress and release rear suspension. Damping
should be smooth throughout the range of travel.
Check all rear suspension components for wear or
damage.
Inspect shock for leakage

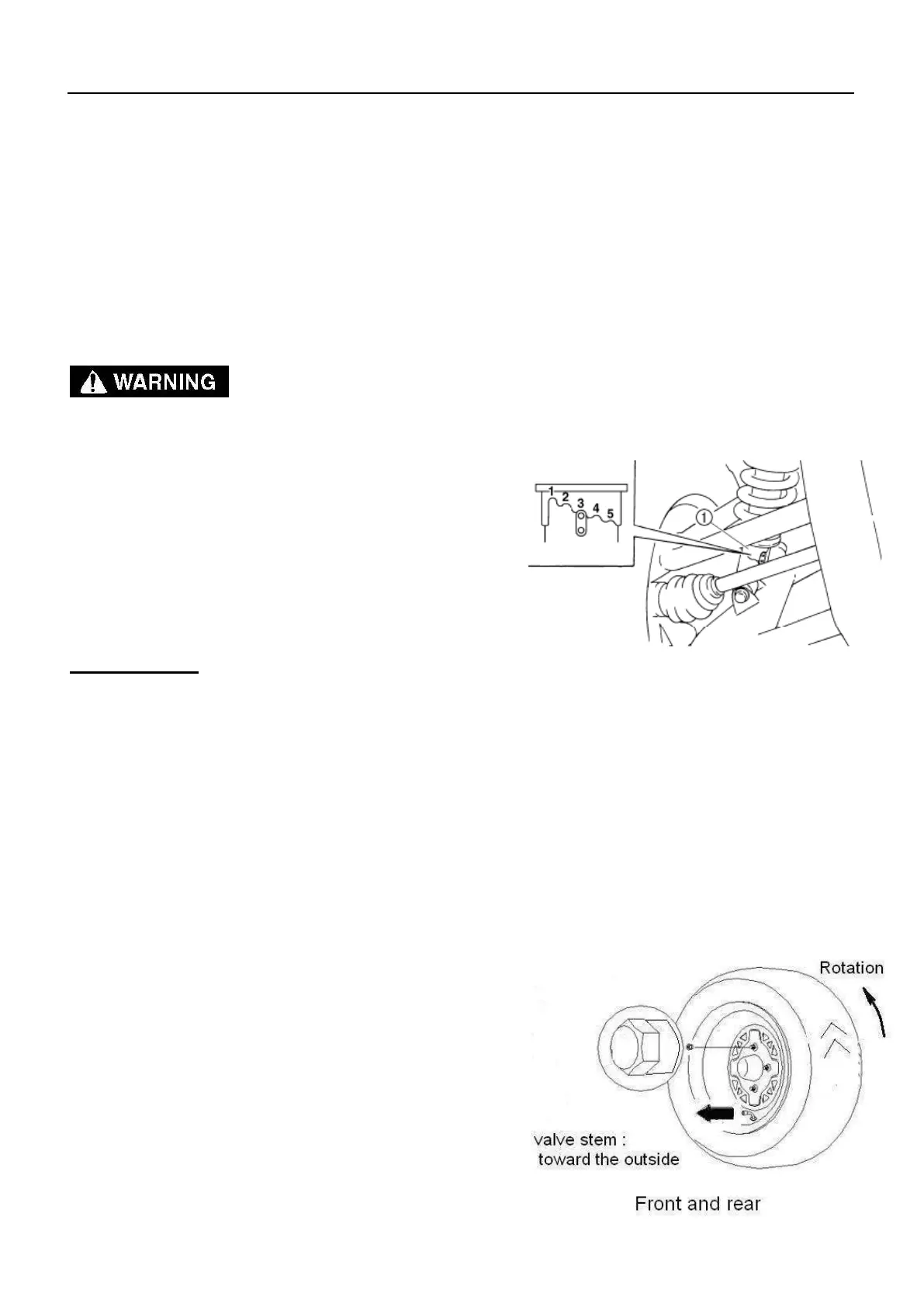

Shock spring preload can be adjusted using the
shock spanner wrench.
Always adjust both shock absorber spring preload to
the same setting. Uneven adjustment can cause
poor handling and loss of stability.
Turn the adjuster to increase or decrease the
spring preload.
Standard position: 3
Minimum (Soft) position: 1
Maximum (Hard) position: 5
2.7 WHEELS
Inspect all wheels for runout of damage.
Check wheel nuts and ensure they are tight.
Do not over tighten the wheel nuts.
WHEEL REMOVAL
1. Stop and lock the parking brake.
2. Loosen the wheel nuts slightly.
3. Elevate the side of the vehicle by placing a suitable
stand under the footrest frame.
4. Remove the wheel nuts and remove the wheel.
WHEEL INSTALLATION
1. With the transmission in gear and the parking Brake
locked, place the wheel in the correct Position on the
wheel hub. Be sure the valve stem is toward the
outside and rotation arrows on the tire point toward
rotation.
2. Attach the wheel nuts and finger tighten them.
Install as shown at left for front or rear wheels.
3. Lower the vehicle to the ground.
4. Securely tighten the wheel nuts to the proper
