CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
7. Lower the vehicle. Torque the spindle retaining
nut to 101 ft.lbs. (137 Nm). Install a new cotter
key and the hub cap.
8. Install brake caliper using new bolts. (Apply
Loctite™ 242 to threads) Tighten bolts to 18 ft.lbs
(24 Nm)

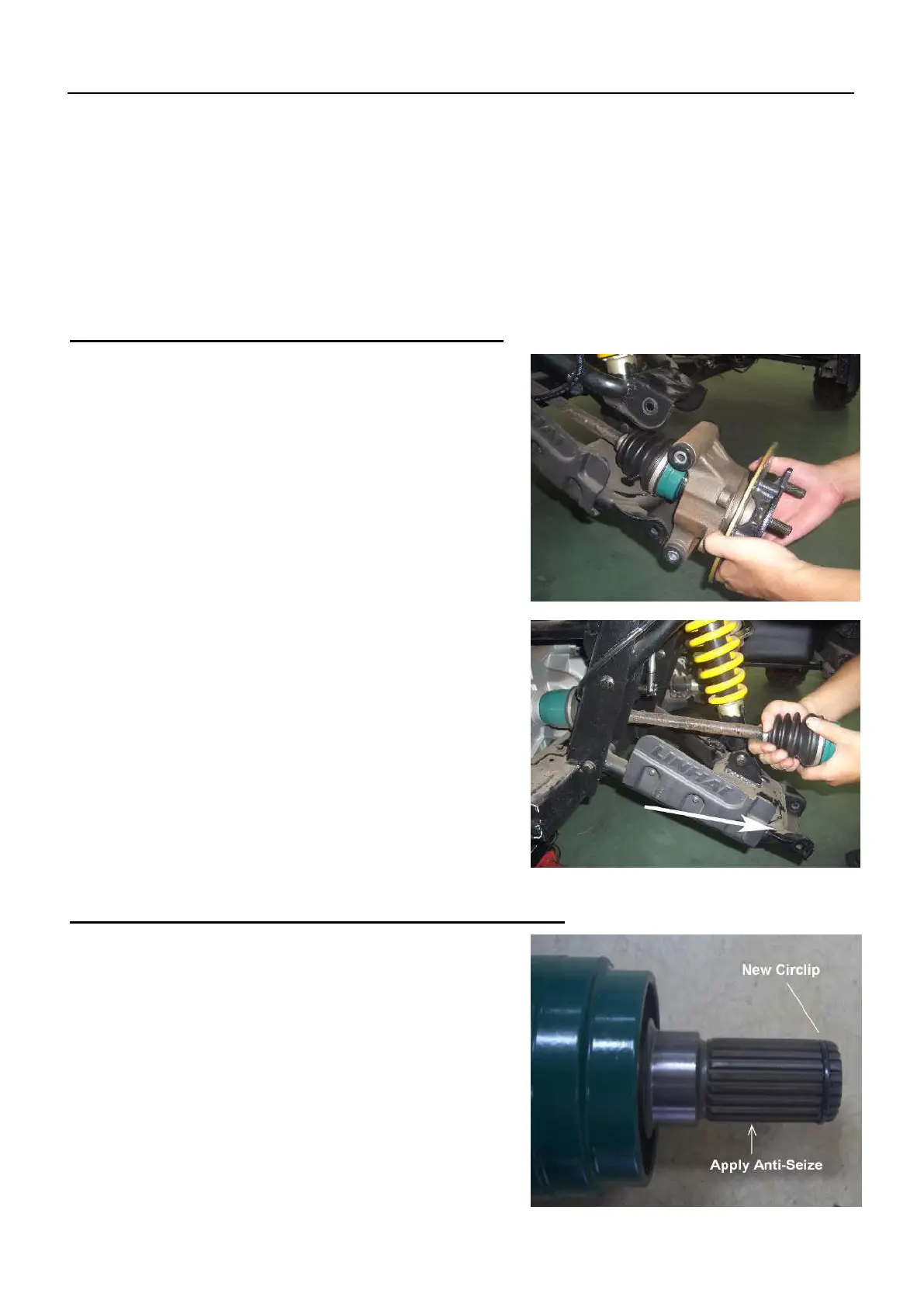

4.13 REAR DRIVE SHAFT REMOVAL
1. Repeat of the steps in the “REAR HUB AND
KNUCKLE REMOVAL” section.
2. Slide the rear drive axle out of the knuckle by
pulling the hub and knuckle assembly outward
and down.
3. Pull the rear drive axle straight out of the frame.
Use short sharp jerks to free the circlip from the
gearcase. The circlip holds the axle in the
gearcase.
4. Inspect the axle splines and cv boots for any
damage.
4.14 REAR DRIVE SHAFT INSTALLATION
1. Install a new circlip onto the rear drive shaft.
Apply Anti-Seize Compound onto the rear
driveshaft splines (both ends).
