CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-

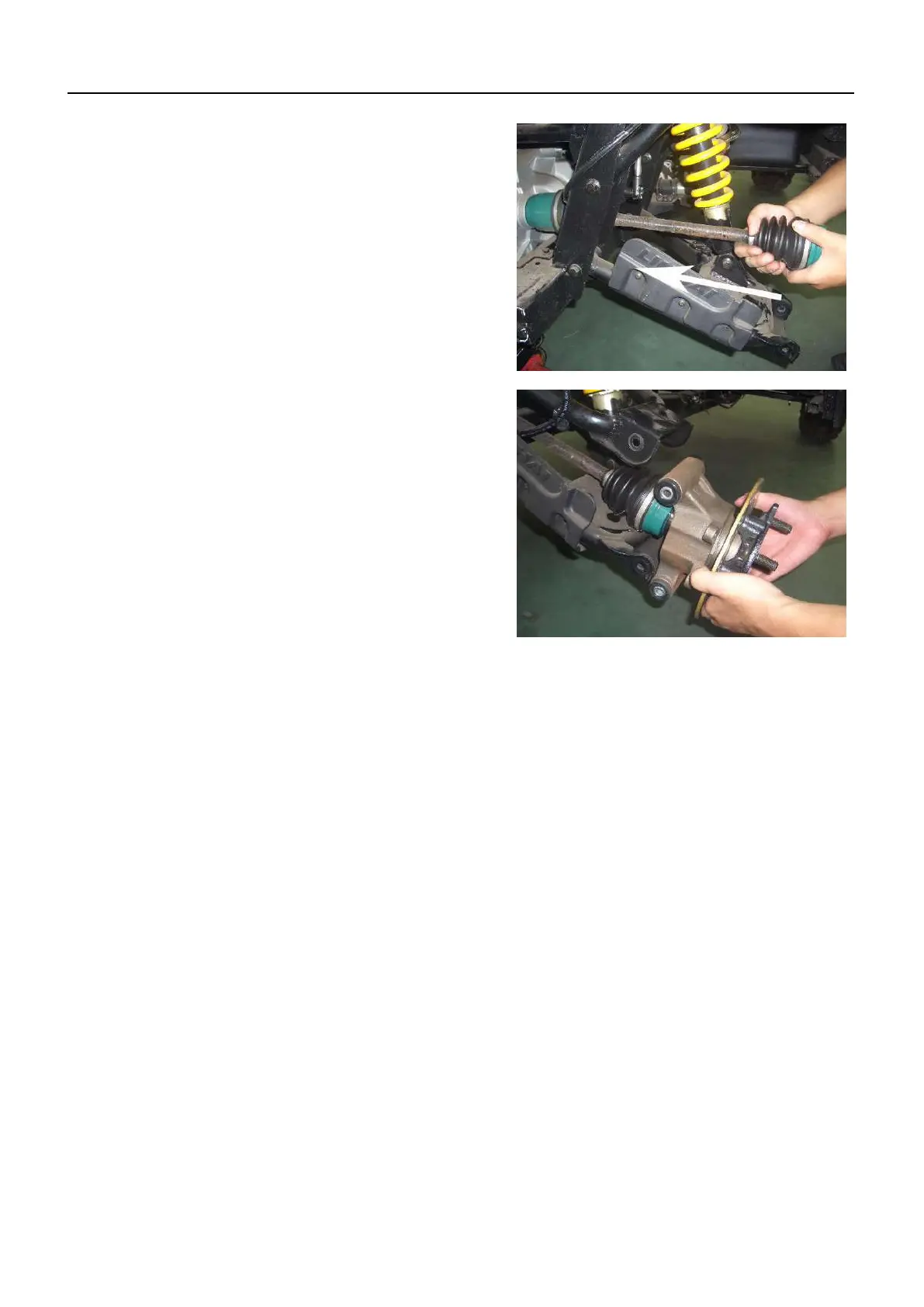

2. Reinstall the rear driveshaft into the rear
gearcase. Be sure the circlip is securely fit into
the rear gearcase. Use a rubber mallet to tap on
the outboard end of the driveshaft if necessary.
3. Slide the rear drive axle into the knuckle.
4. Lift knuckle into place and install bolt to upper
and lower control arm. Torque bolt to 44 ft.lbs (60
Nm).
5. Install the washer and the spindle retainer nut.
6. Install the wheel and wheel nuts. Torque wheel
nuts to 69ft.lbs. (95 Nm).
7. Lower the vehicle. Torque the spindle retaining
nut to 101 ft.lbs. (137 Nm). Install a new cotter
key and the hub cap.
8. Install brake caliper using new bolts. (Apply
Loctite™ 242 to threads) Tighten bolts to 18 ft.lbs
(24 Nm)
