4.15 REAR GEAR CASE DISASSEMBLY

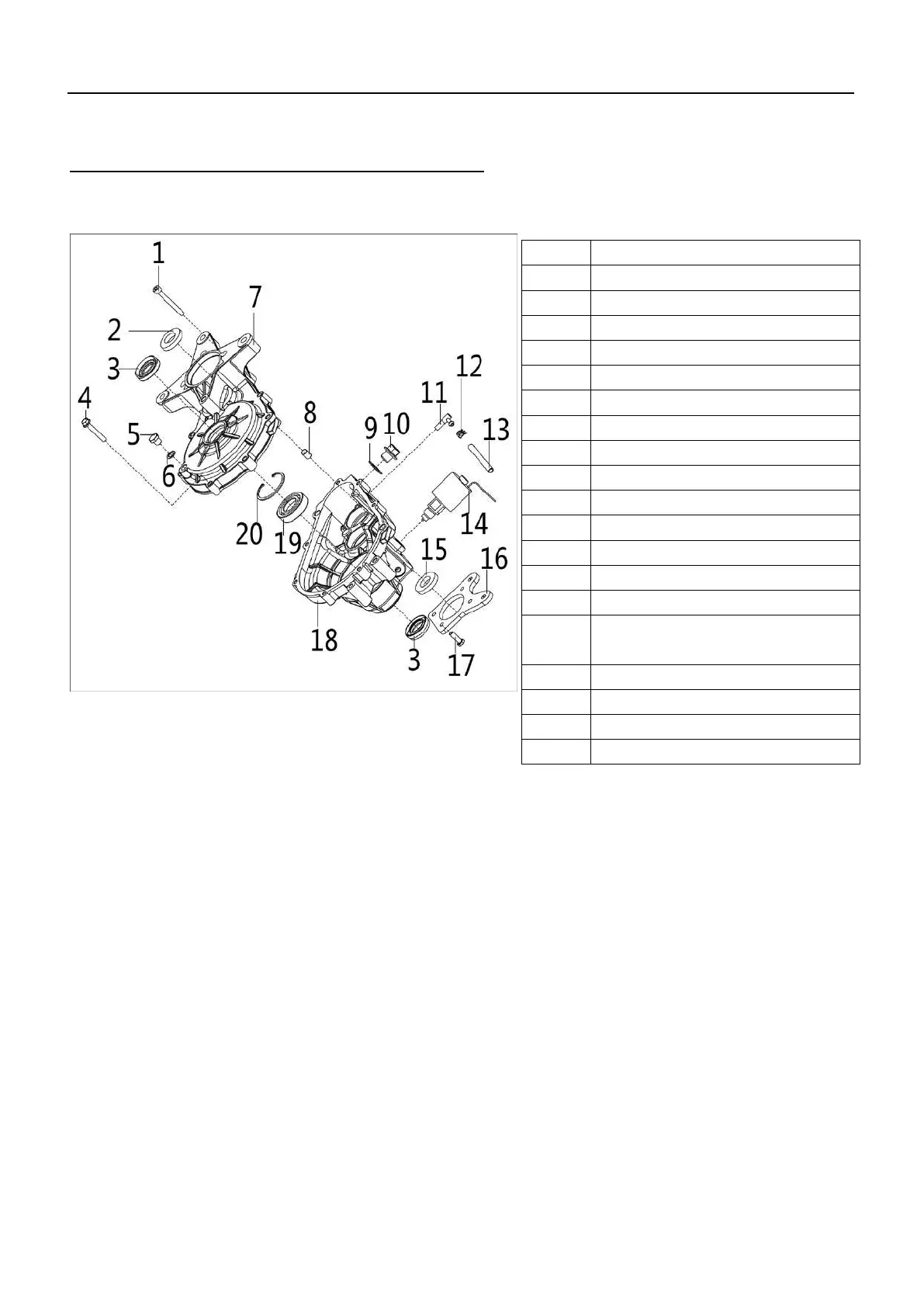

REAR GEARCASE EXPLODED VIEW
1
SOCKET HEAD BOLT M8X70
2
SEAL 25X47X7
3
SEAL 30X50X13.5
4
BOLT M8X50
5
DRAIN SCREW
6
WASHER
7
LEFT CASE
8
DOWEL PIN
9
WASHER 18
10
BOLT M18x1.5
11
VENT NOZZLE
12
CLAMPS
13
VENT PIPE
14
DIFF SOLENOID
15
SEAL 25X47X8
16
MOUNT BRACKET-PARKING
BRAKING
17
BOLT M8X20
18
RIGHT CASE
19
BEARING 206
20
CLIP 62
