CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-

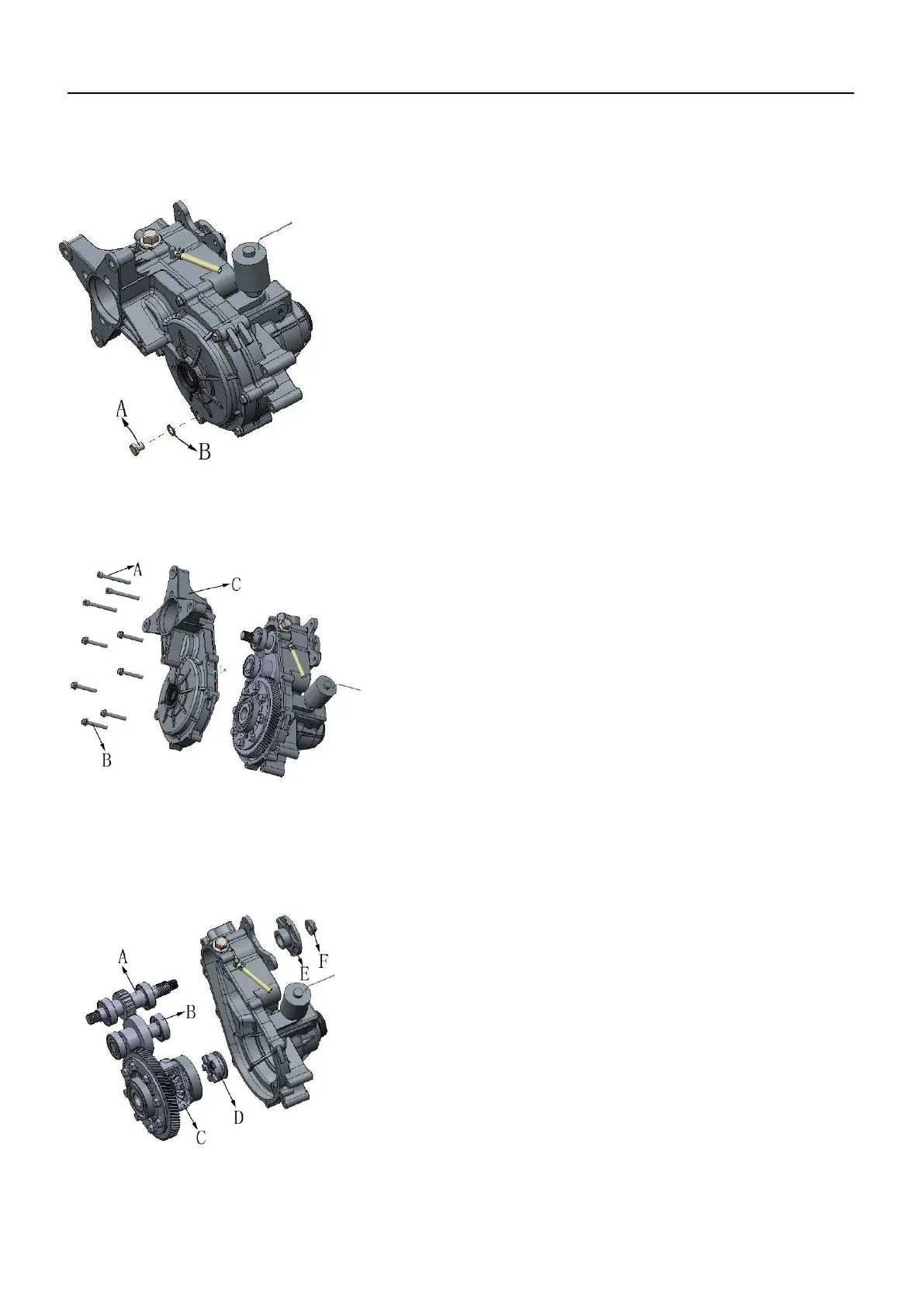

1. Remove the oil Drain Screw A and let the oil drain from the gearbox.
Important: Clean the plug carefully and
Replace the Washer B before Its assembled. →Fig 1
Fig 1
2. Remove the three Socket Head Bolts A and six Bolts B and Left Case C.
→Fig 2
Fig 2
3. Remove the Input Gear A and Mid Gear Shaft B and Diff Case Assembly C and Clutch Gear
D and Coupler E and Nut F.
→Fig3
Fig 3
To Next Page
