Linhai Crossfire E5 2022 - Page 55

CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
17

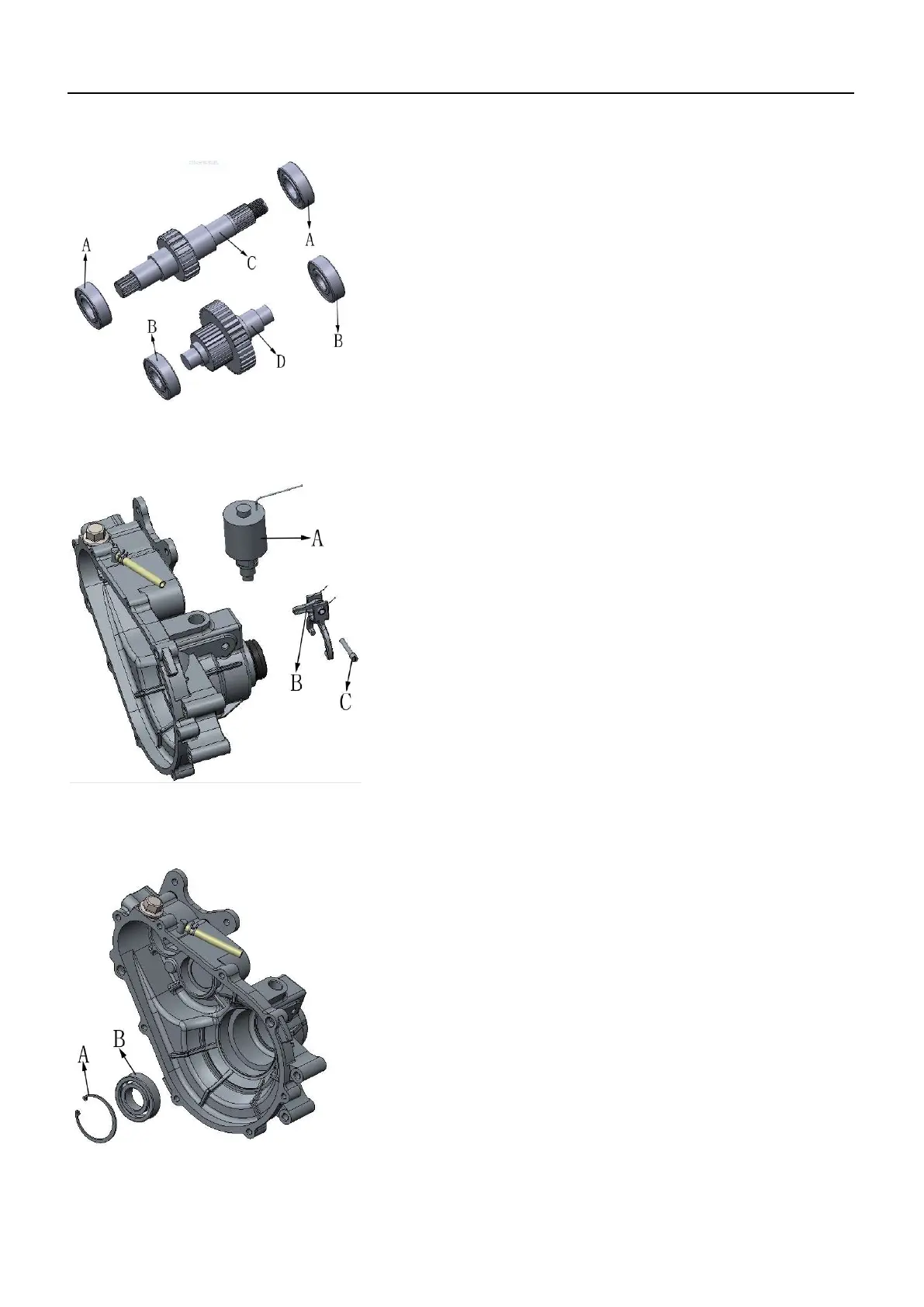

4. Remove two Bearing 6205 A, two Bearing 6304 B, Input Gear C, and Mid Gear Shaft D.
→Fig 4
Fig 4
5. Remove the Diff Solenoid A, Shift Yoke Assembly B, Shift Pin C.
→Fig 5
Fig 5
6. Remove the Clip A and Bearing 206 B.
→Fig 6
Fig 6
