CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
18

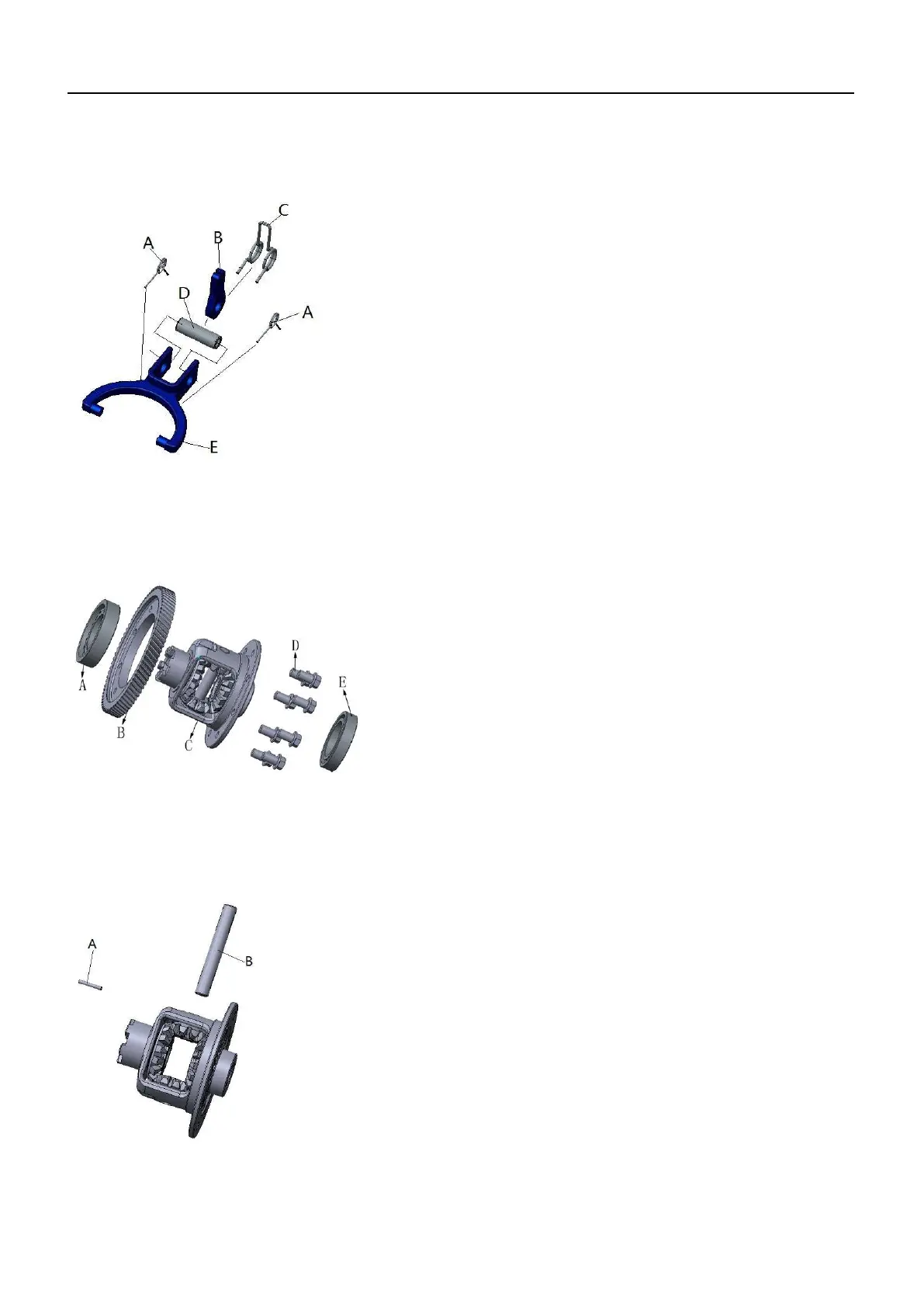

7. Remove the Shift Return Spring A and
the Shift Lever B and Shift Lever Spring C and Shift Bar D and Shift Yoke E.
→Fig 7
Fig 7
8. Remove the Bearing 6210 A and Bearing 110 E. Then, remove eight Bolts D, remove Output
Gear B from Diff Assembly C.
→Fig 8
Fig 8
9. Remove the Diff Roll Pin A. Then, remove
the Diff Cross Pin B.
→Fig 9
Fig 9
