CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
20
4.16 REAR GEAR CASE ASSEMBLY

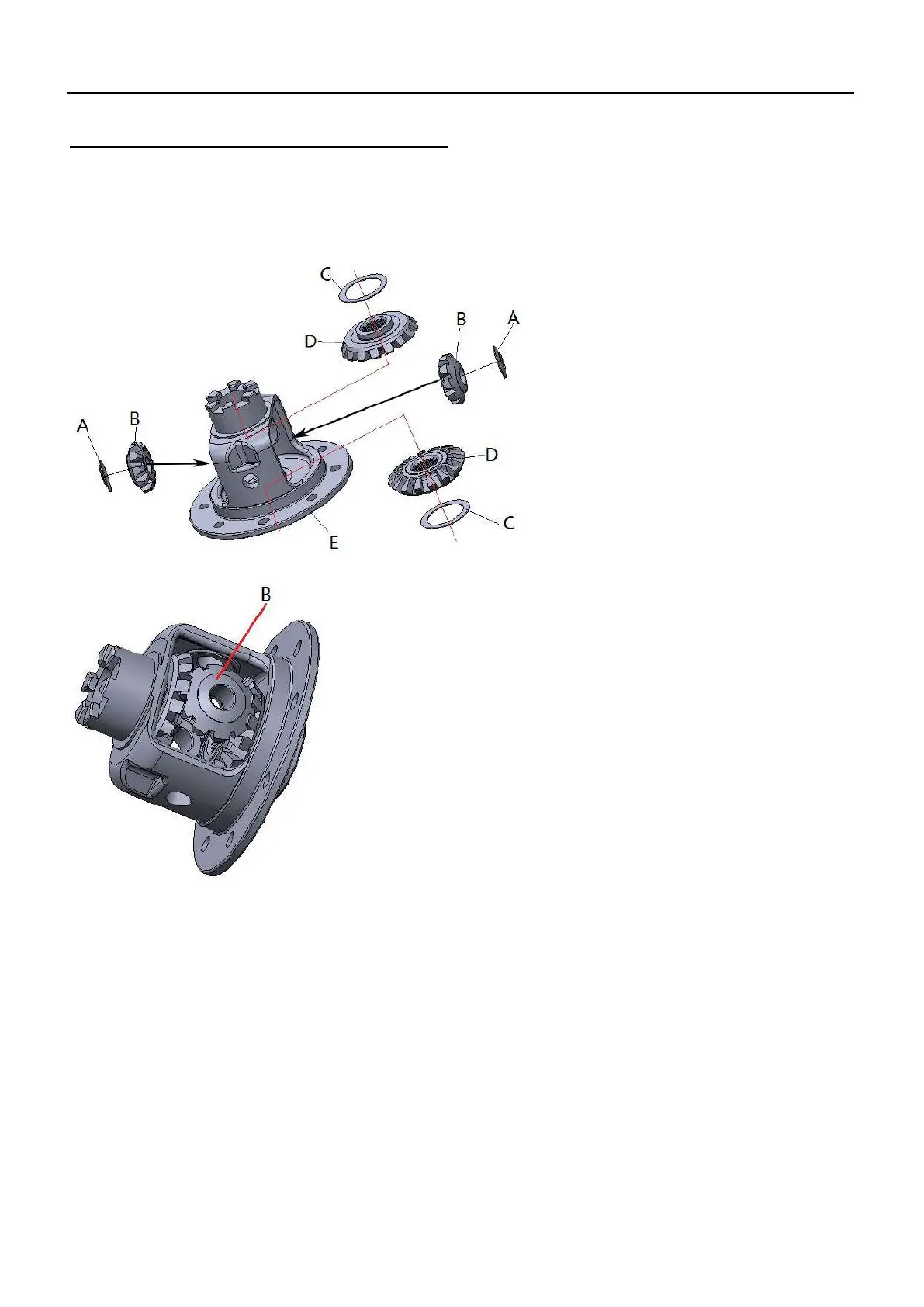

1. Mount Pinion Mate Thrust-Washer A and Diff Pinion Mate Gear B and Side Gear
Thrust-Washer C and Diff Side Gear D and Diff Case E as shown, then turn Diff Pinion Mate
Gear B 90 °.
→Fig 11
Fig 11
