CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
2. Mount the Diff Cross Pin B. Then, mount
the Diff Roll Pin A.

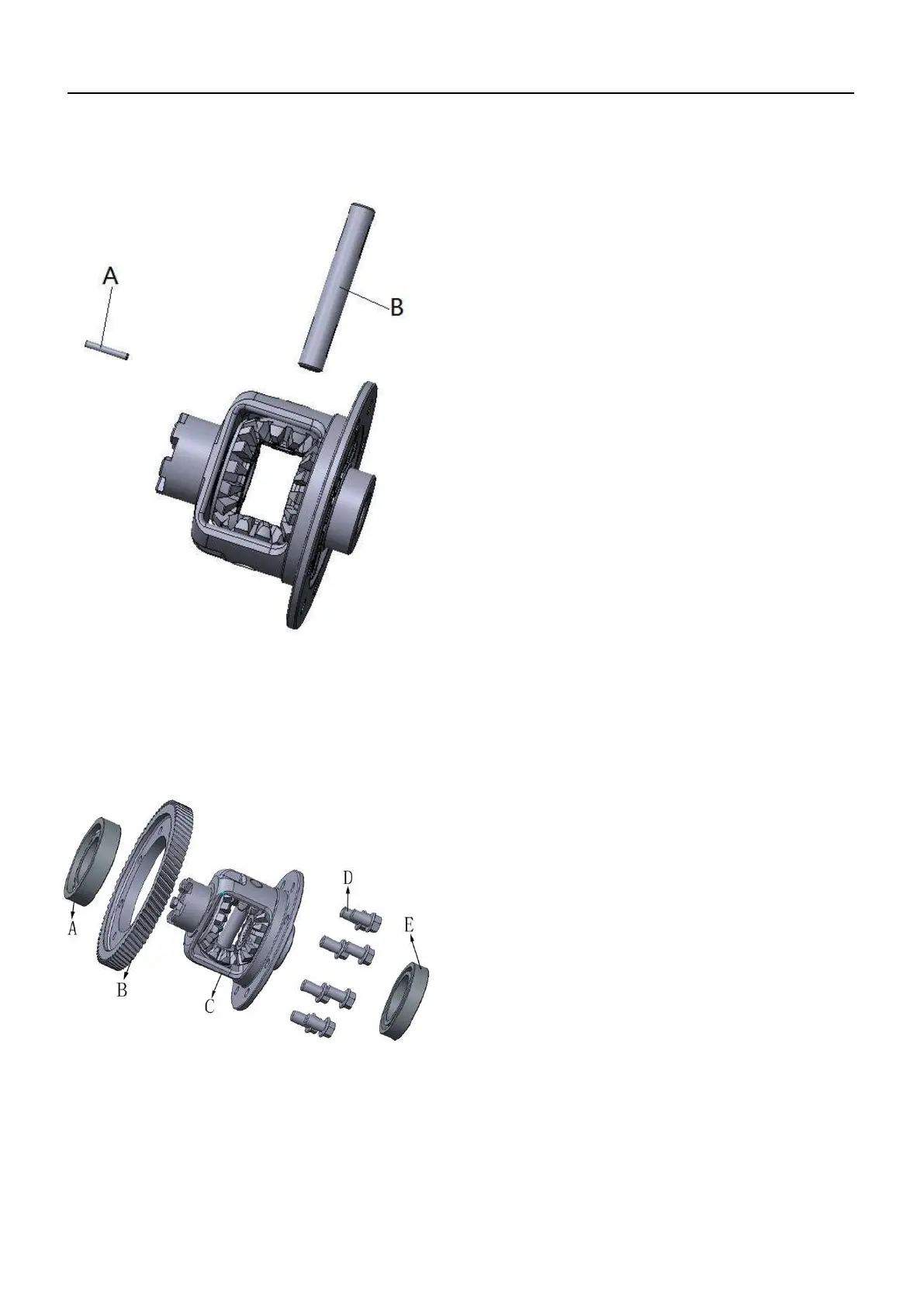

→Fig 12
Fig 12
3. Mount Output Gear B to Diff Assembly C, mount eight Bolts D. Then, mount the Bearing
6210 A and Bearing 110 E.
PS: Apply Loctite 271 evenly on the eight Bolts D screw thread. Tighten the eight Bolts to a torque
of 90~100Nm
→Fig 13
Fig 13
