CHAPTER5 BRAKES LH50DU SERVICE MANUAL19.1
CHAPTER 5 BRAKES PAGE. 5-

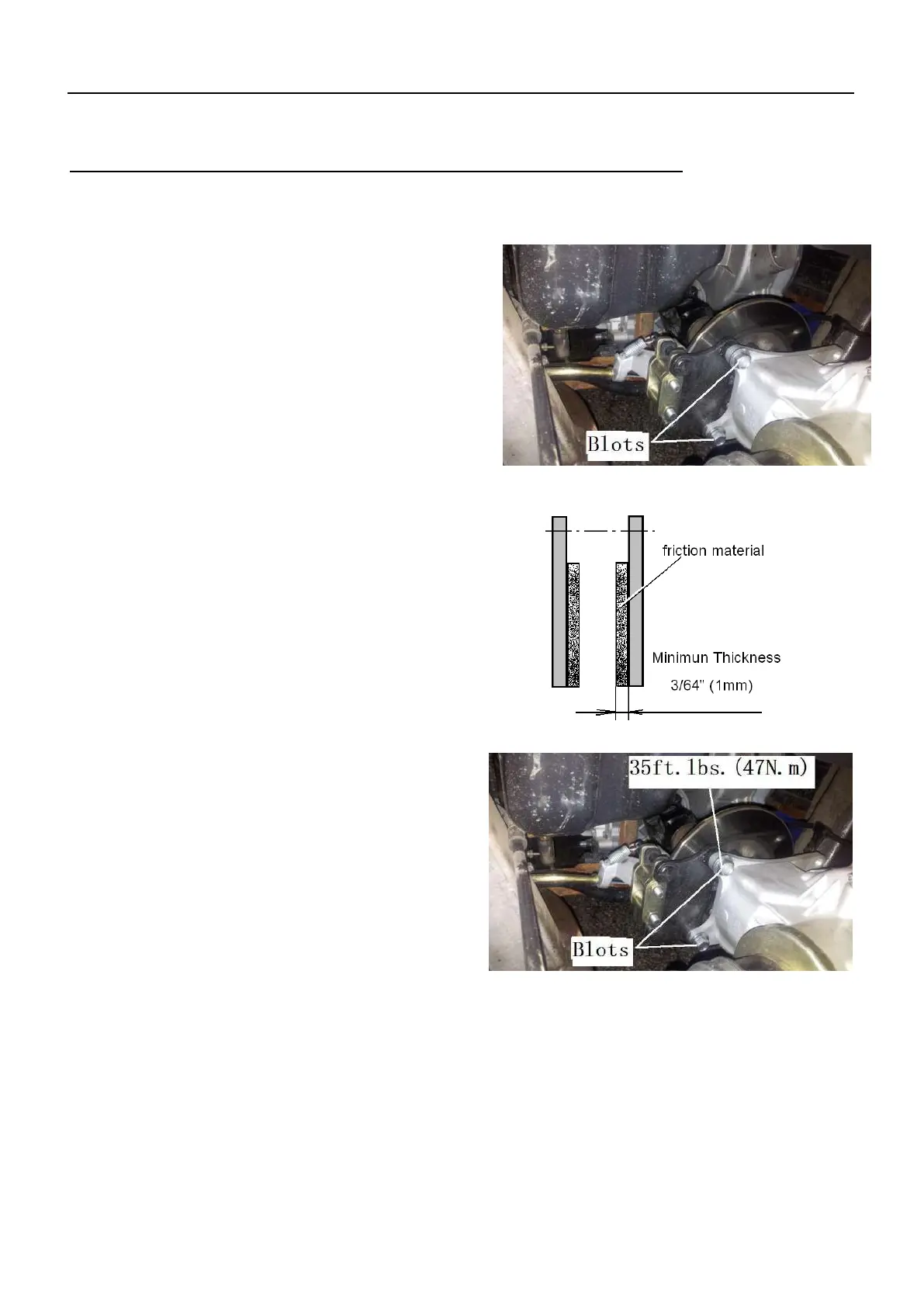

5.8 PARKING BRAKE REAR CALIPER REMOVAL / INSTALL
Park Brake Caliper Disassembly / Pad Inspection
NOTE: Do not get oil, grease, or fluid on the park
brake pads. Damage to the pads may cause the
pads to function improperly.
1. Loosen the two brake caliper bolts in equal
increments. Remove the bolts from the bracket
and lift park brake assembly out.
2. Measure the thickness of the caliper parking
brake pads. Replace pads if worn beyond the
service limit.
Service Limit 0.3/64"(1 mm)
Park Brake Caliper Installation
1. Install the park brake assembly into place.
Tighten the two bolts in increments for proper
installation.
2. Torque the two bolts to 35ft.lbs. (47 Nm).
3. Test the park brake for proper function.
