CHAPTER5 BRAKES LH50DU SERVICE MANUAL19.1
CHAPTER 5 BRAKES PAGE. 5-

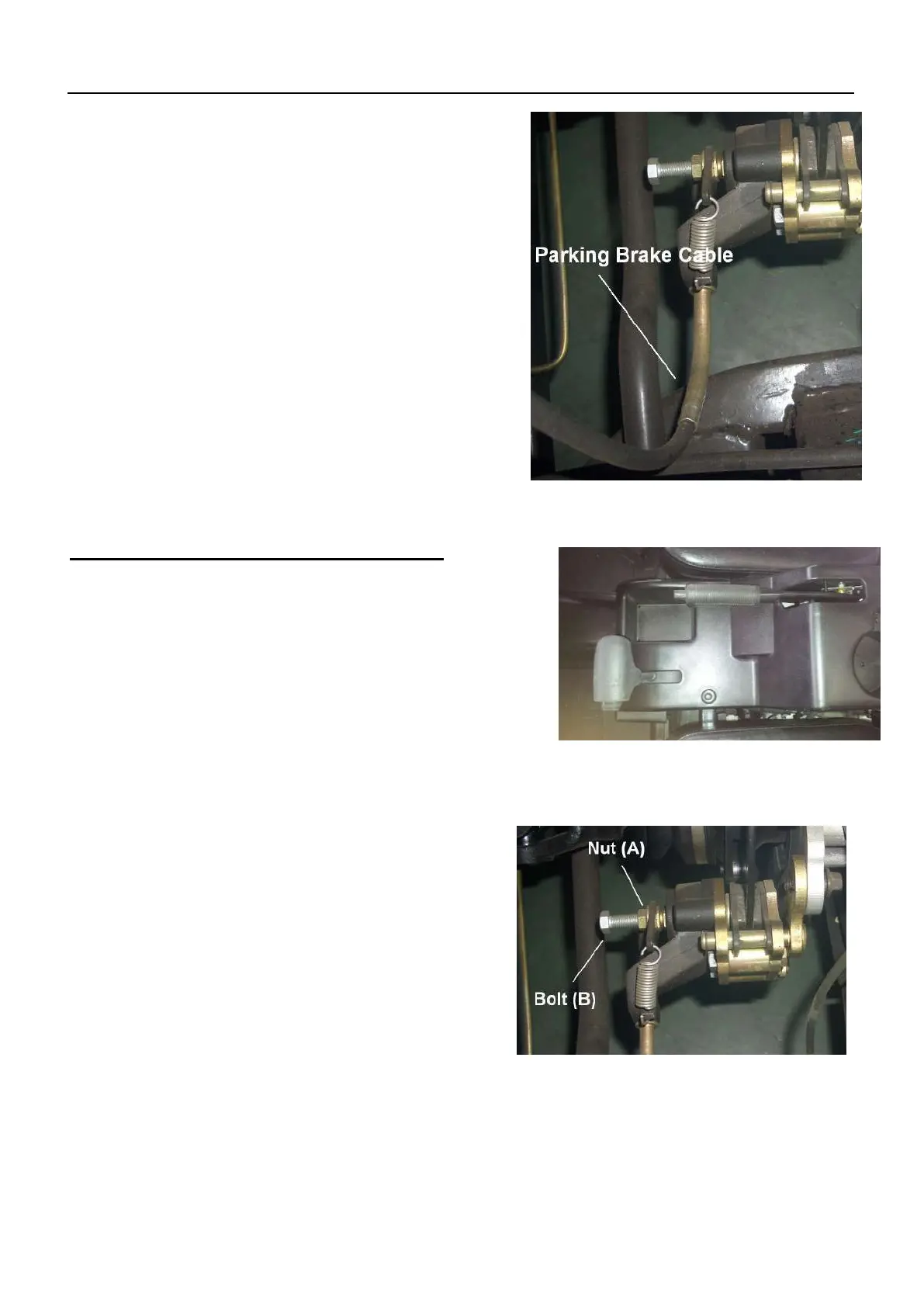

2. Inspect the parking brake cable at the parking
brake lever assembly on the brake caliper.
3. Inspect the brake lines and brake line
connections for possible leaks or loose lines.
5.7 PARKING BRAKE ADJUSTMENT
Parking Brake Inspection
1. Push the parking brake up with your hand.
2. After 2 to 4 clicks of lever travel, the vehicle
should not roll while parked.
3. If the vehicle moves, adjustment is necessary.
4. Adjust the parking brake where the cable
attaches to the lever assembly on the rear brake
caliper.
Parking Brake Adjustment
1. Place the vehicle in neutral on a flat level surface.
2. Carefully lift the rear of the vehicle off the ground
and stabilize on jack stands.
3. Loosen the jam nut (A) on the rear caliper
adjustment bolt (B).
4. Tighten the adjustment bolt (B) until the rear tire
will not roate.
5. Back the adjustment bolt (B) out 1/4 turn.
6. Tighten the jam nut (A) while holding the
adjustment nut (B) in place.
