CHAPTER 6 ELECTRICAL LH50DUSERVICE MANUAL19.1
CHAPTER 6 ELECTRICAL CTRICAL PAGE6

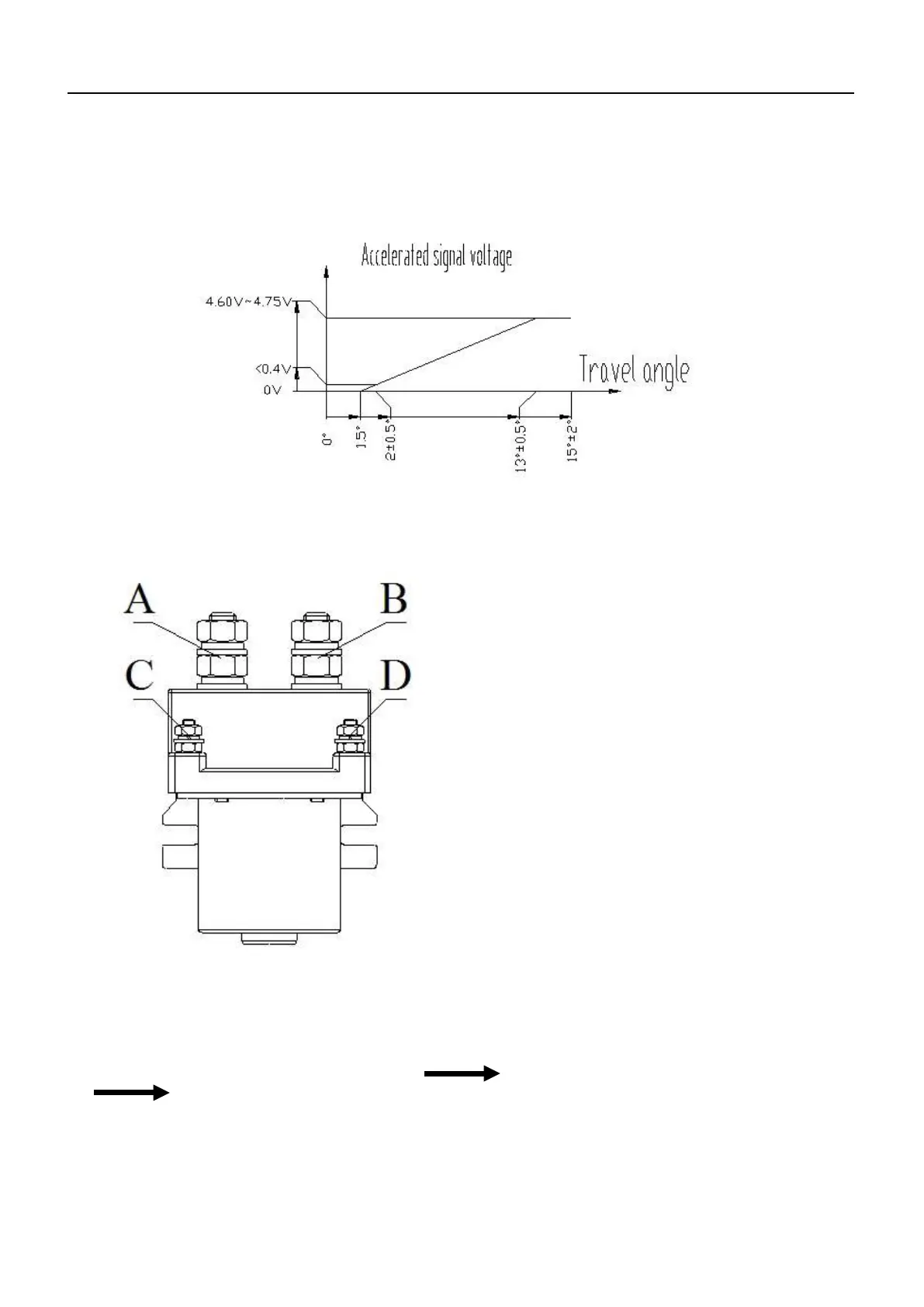

Connect the terminal 3 of the accelerator to the terminal 4 with 12 V DC power
supply according to the figure above, press the pedal to the termination position lightly,
and check the voltage value of terminal 2 and 3 with the multimeter. It fits the figure
below.
10. DC contactor
The DC contactor terminal C and terminal D connected with 12V(DC) voltage, then A and B terminals are
interconnection(Measuring with a multimeter)ć
11.Wiring connection
Check the connection of the entire system POOR CONNECTIONS
correct
