CHAPTER 6 ELECTRICAL LH50DUSERVICE MANUAL19.1
CHAPTER 6 ELECTRICAL CTRICAL PAGE6
9

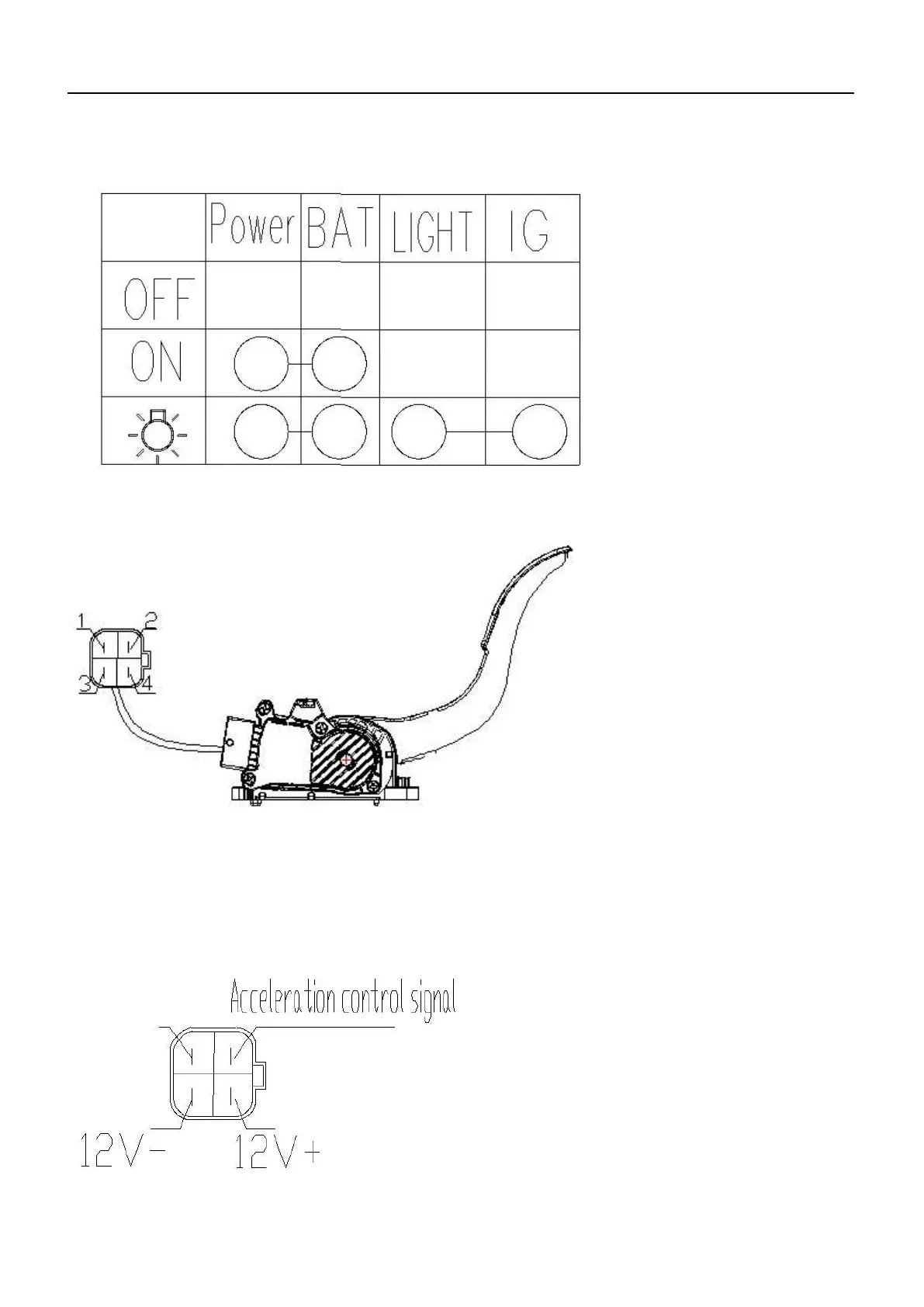

8.Main switch check
9. accelerator
1、Accelerator switching signal 2、Acceleration control signal
3、Accelerator power supply negative pole 4、Accelerator power supply positive pole
Inspection methods and procedures
