Link 1260 - 1/2HP User Manual

Ring 
Fastener
Door
Bracket
Clevis Pin
5/16"x1-1/4"
Curved
Door Arm
Straight
Door Arm
Clevis Pin
5/16"x1"
Lock
Washers
5/16"
Nuts
5/16"-18
Door Bracket
Screws
5/16"-18x7/8"
Manual
Release
Handle
Rope
Lock
Washers
5/16"
Nuts
5/16"-18
Screws
5/16"-18x7/8"
Door Arm to Trolley Sectional
New door brkt
1/96
Cut This End
Inner Trolley
Outer Trolley

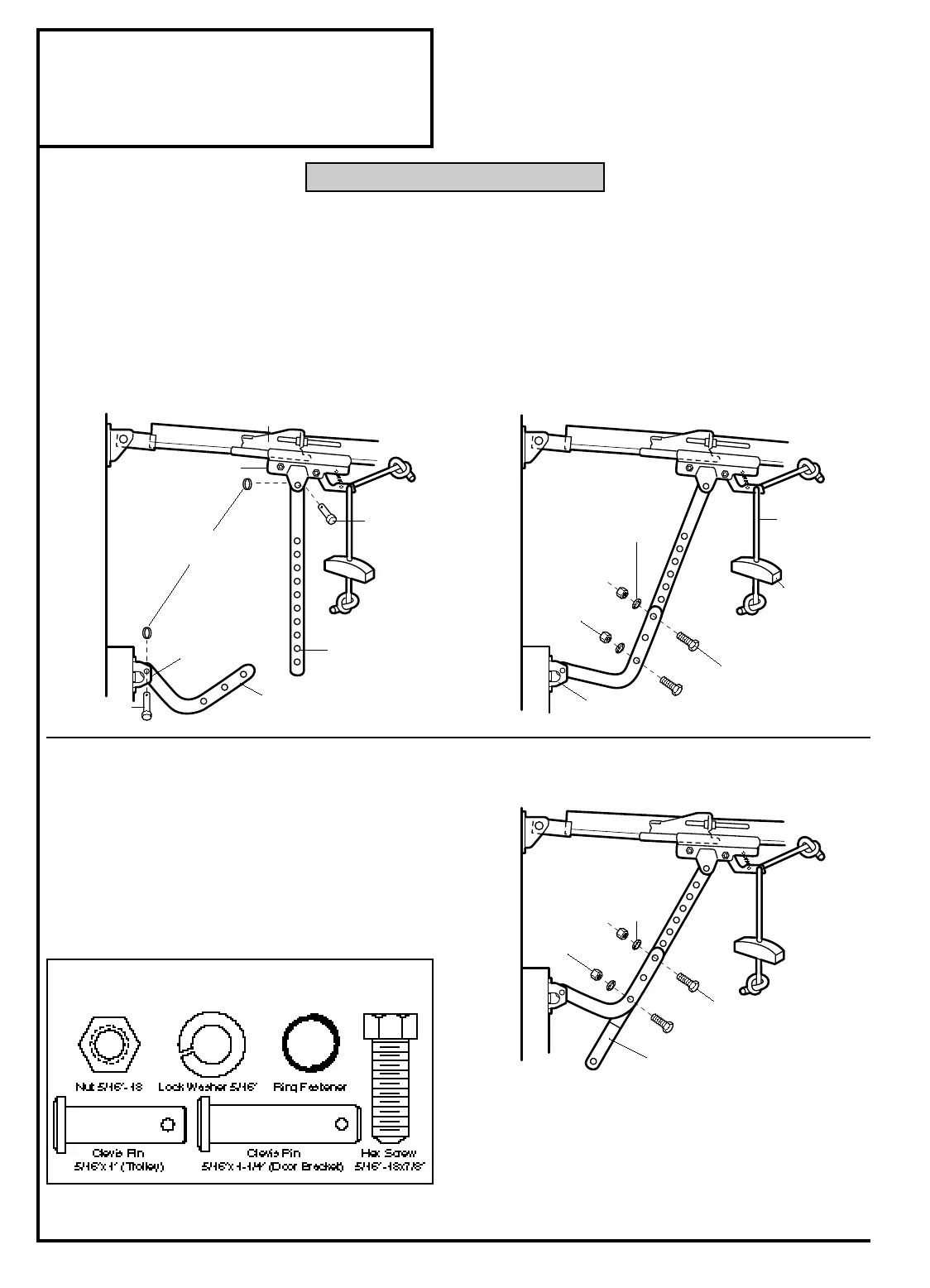

Installation Step 12
Connect Door Arm to Trolley
Follow instructions which apply to your door type
as illustrated below and on page 23.
Make sure garage door is fully closed. Pull the manual release handle to disconnect the outer trolley
from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in
Figures 1, 2 and 3.
Figure 2:
• Bring arm sections together. Find two pairs of holes
that line up and join sections. Select holes as far
apart as possible to increase door arm rigidity.
Figure 3:
• If holes in curved arm are
above holes in straight
arm, disconnect straight arm. Cut about 6" from
the solid end. Reconnect to trolley with cut end
down as shown.
• Bring arm sections together.
• Find two pairs of holes that line up and join with
screws, lock washers and nuts.
Proceed to Adjustment Step 1, page 24. Trolley will re-engage automatically when the opener is operated.
22
Figure 1:
• Fasten straight door arm section to outer trolley
with the 5/16"x1" clevis pin. Secure the connection
with a ring fastener.
• Fasten curved section to the door bracket in the
same way, using the 5/16"x1-1/4" clevis pin.
SECTIONAL Doors Only
Hardware Shown Actual Size
Figure 1 Figure 2
Figure 3
Hole Alignment Alternative
