Link 1260 - 1/2HP User Manual

Safety Reversing
Sensor
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum,
door with glass panels, etc.).
See page 20 for details.
FINISHED CEILING
Support bracket & 
fastening hardware
is required.
See page 13.
— — — — — — — —
Door
Center
Header Wall
Safety
Reversing
Sensor
Floor must be level
across width of door
Extension Spring
Torsion Spring
Access Door
OR
Slack in chain tension
is normal when
garage door is closed.
Chain
Pulley
Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Manual
Release
Rope & Handle
Door Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
Chain
4
Before you begin, survey your garage area to see whether any of the conditions below apply to your installation.

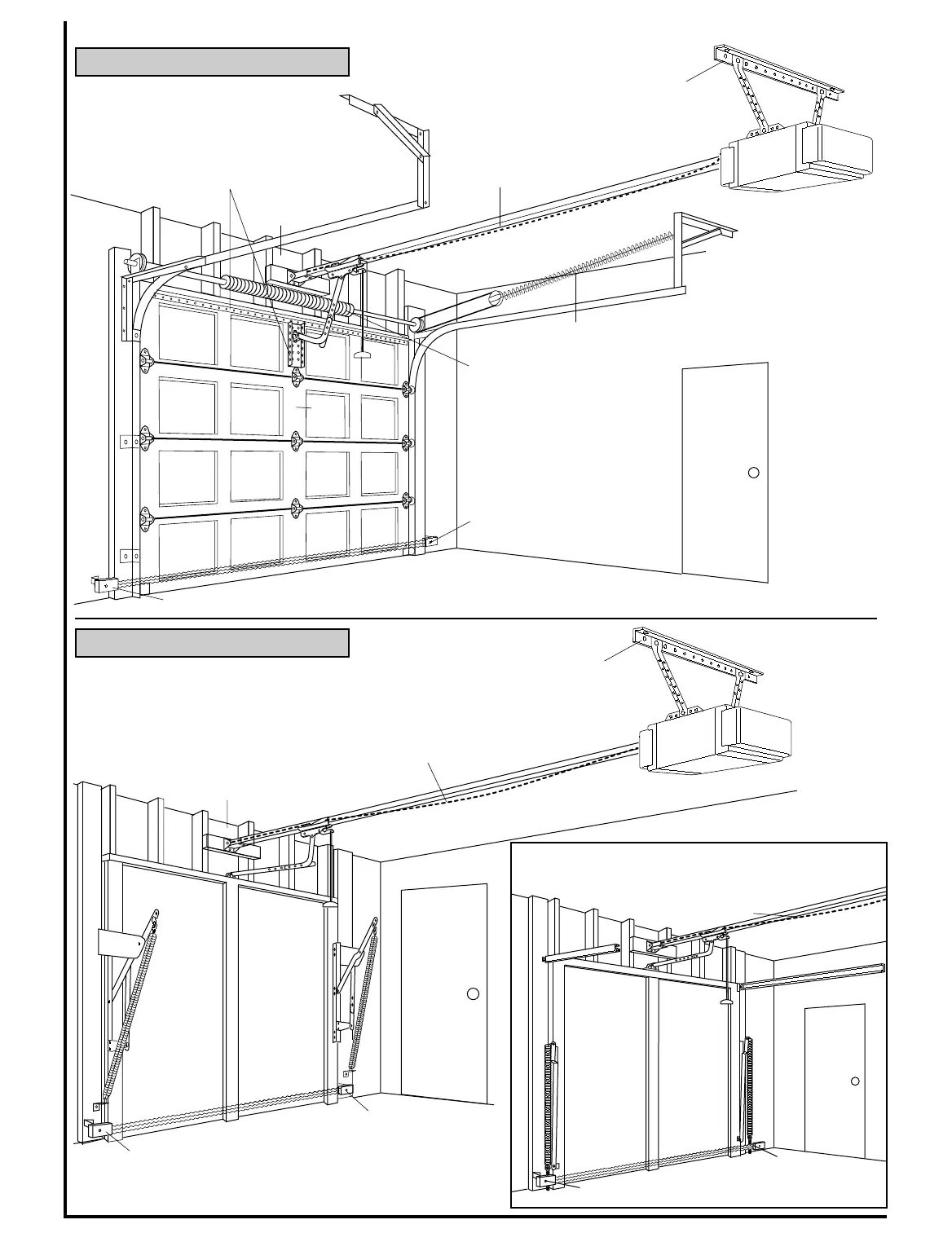

Sectional Door Installation
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 13.
Slack in chain tension
is normal when
garage door is closed.
Safety
Reversing
Sensor
Header
Wall
Access Door
Safety Reversing Sensor
Gap between floor and bottom of
door must not exceed 1/4"
Access
Door
Floor must be level
across width of door
The Chamberlain Group, Inc.
One-Piece Door with Track Installation (Chain -USA)
3/3/93
Slack in Chain Tension
is Normal When
Garage Door is Closed
Safety
Reversing Sensor
Safety
Reversing Sensor
One-Piece Door without Track
One-Piece Door with Track
One-Piece Door Installation
You may find it helpful to refer back to this page as
you proceed with the installation of your opener.
