Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
Header Bracket
UP
CEILING MOUNT ONLY
Safety Reversing Sensor
Mounting Bracket
With Square Holes (2)
"C" Wrap (2)
Safety Reversing Sensor
Mounting Bracket
With Slot (2)
Sprocket Cover
2 Conductor Bell Wire
White & White/Red
Remote Control
Transmitter (1)
with 12V battery
LIGHT
LOCK
Multi-Function
Door Control Panel
Lighted Door Control Button
w/ 6ABx1-1/2" Screws
Light Lens (1)
Light Lens (2)
Remote Control
Transmitter Visor Clip
One-Piece
T-rail
Styrofoam
Chain
Pulley Bracket
Trolley
Chain
(Model 1260)
(Model 1245)
(Model 1260)
(Model 1245)
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with
2-Conductor White & White/Black Bell Wire
attached
Door Bracket

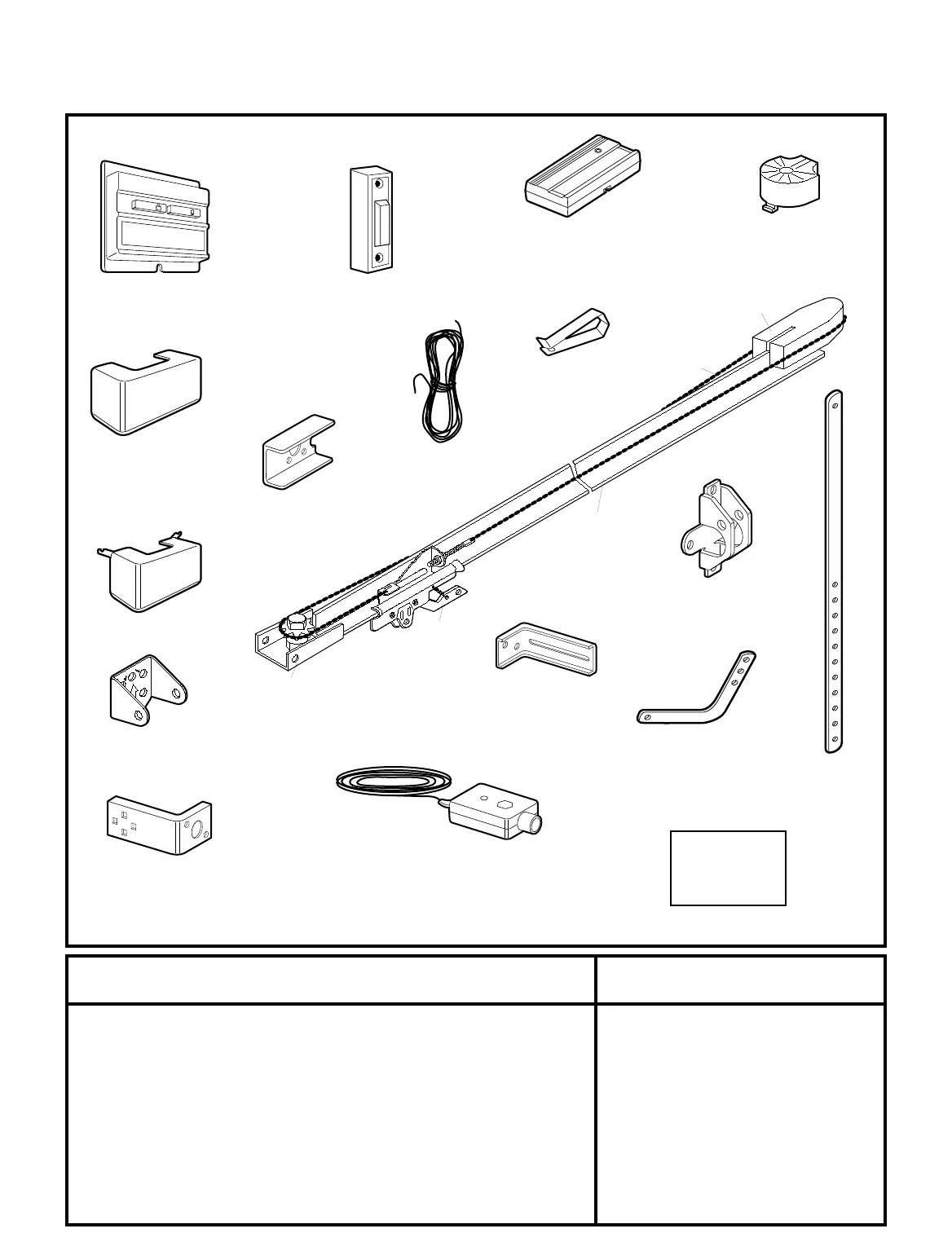

Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is
missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for installation is
also listed below.
Carton Inventory
Hex Screw 5/16"-18x7/8" (4)
Hex Screw #8x3/8" (2)
Lag Screw 5/16"-9x1-5/8" (2)
Lag Screw 5/16"-18x1-7/8" (2)
Carriage Bolt 5/16"-18x2-1/2" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (6)
Lock Washer 5/16" (6)
Screw 6ABx1" (2)
Handle
Insulated Staples (10)
Ring Fastener (3)
Rail Grease
Rope
Dry Wall Anchors (2)
Lag Screw 1/4"x1-1/2" (4)
Carriage Bolt 1/4"-20x1/2" (4)
Lock Nut 1/4"-20 (4)
Wing Nut (2)
Hex Screw 1/4"-20x1-1/2" (2)
Screw #10-32x3/8" (4)
Lock Nut #10-32 (4)
Insulated Staples (20)
Installation Hardware
Safety Reversing Sensor
Installation Hardware
To Next Page
