Linksys E8400

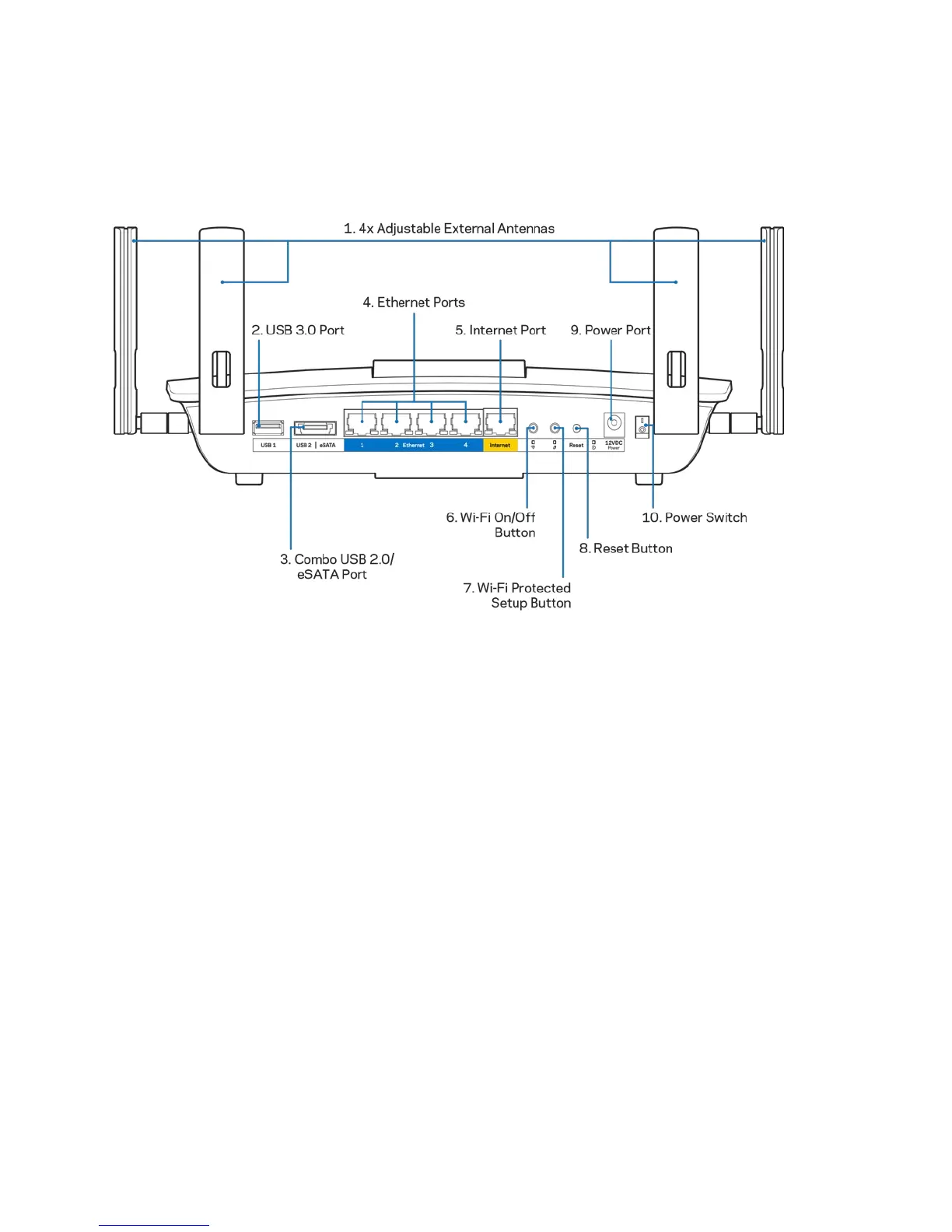

Back view
1. Adjustable external antennas—This router ships with four adjustable external antennas that
should be connected to the router before powering it on. To connect the antennas, twist the
antenna clockwise onto the antenna connector on the router.
Note—For best performance, position the side antennas vertically as shown in the picture.
2. USB 3.0 port—Connect and share a USB drive or USB printer on your network or on the Internet.
3. Combo USB 2.0/eSATA port------Connect and share a USB/eSATA drive or a USB printer on your
network or on the Internet.
4. Ethernet ports------Connect Ethernet cables (also called network or Internet cables) to these
Gigabit Ethernet (10/100/1000) ports and to other wired devices on your network.
5. Internet port------ Connect an Ethernet cable to this port and to your modem.
6. Wi-Fi button------Press to turn the wireless function on and off.
7. Wi-Fi Protected Setup™ (WPS) button------Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled network devices.
8. Reset button------Press and hold until all port lights blink at the same time to reset the router to
its factory defaults.
9. Power port------Connect the included AC power adapter to this port.
10. Power switch------Press | (on) to power on the router.
