Linksys LGS108P User Manual

3

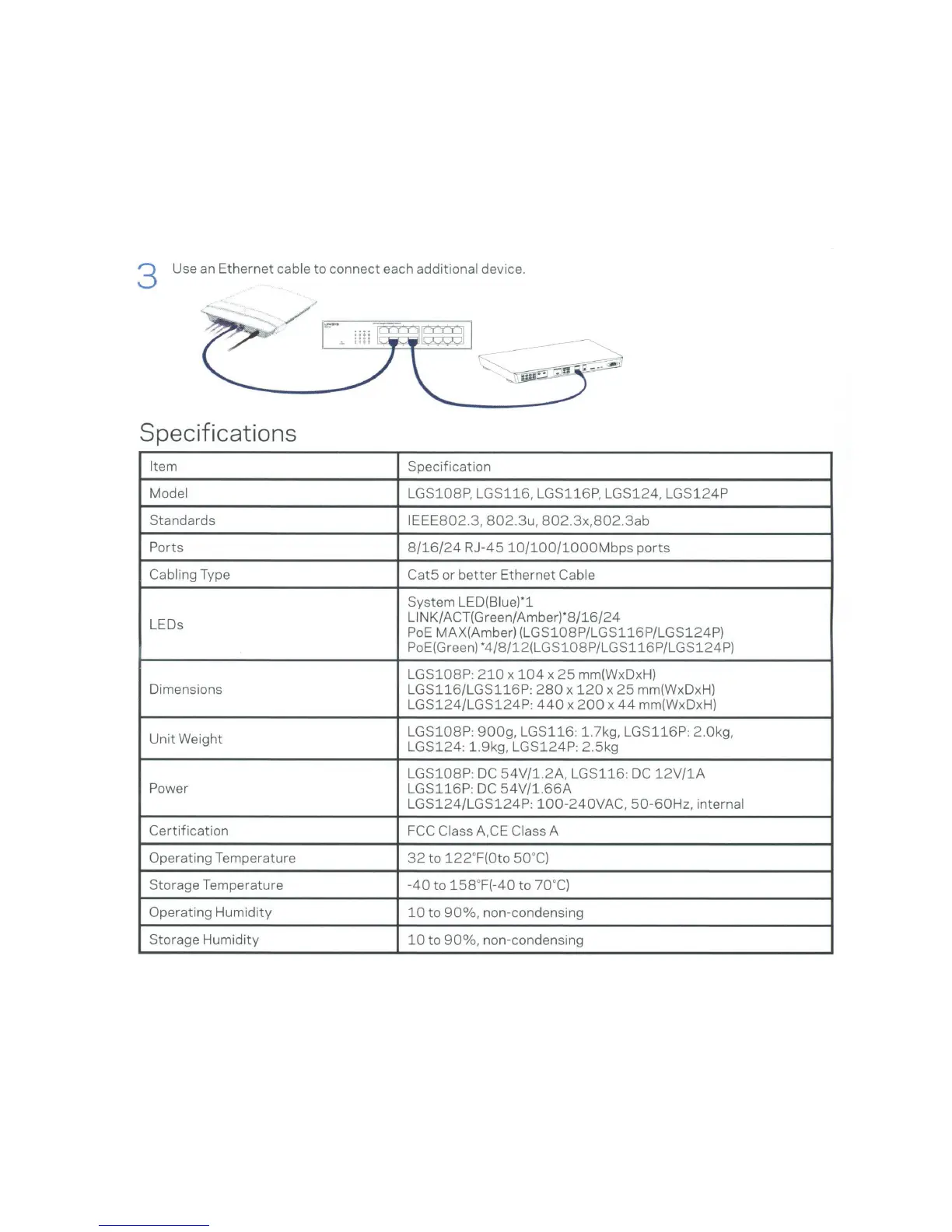

Use an Ethernet cable to connect each additional device.
Specifications
Item
Specification
Model
LGS108P, LGS116, LGS116P,
LGS124 , LGS124P
Standards
IEEE802 .3, 802 . 3u , 802 .3 x, 802 . 3ab
Ports
8/16/24 RJ - 45 10/100/1000Mbps ports
Cabling Type
CatS
or better Ethernet Cable
System LED(Biue)*1
LEOs
LINK/ACT(Green/Amber)*
8/16/24
PoE MAX(Amber) (LGS108P/LGS116P/LGS124P)
PoE(Green)
*4 /8 /1 2 (LG S 108P/LG S116P/LGS 124P)
LGS108P : 210 x 104 x 25 mm(WxDx H)
Dimensions LGS116/LGS116P : 280 x 120 x 25 mm(WxDxH)
LGS124/LGS124P : 440 x 200 x 44 mm(WxDx H)
Unit Weight
LGS108P : 900g, LGS116 : 1.7kg , LGS116P: 2.0kg ,
LGS124 : 1.9kg, LGS124P: 2.5kg
LGS108P : DC 54V/1.2A, LGS116: DC 12V/1A
Power
LGS116P: DC
54V/1.66A
LGS124/ L GS124P : 100-240VAC, 50- 60Hz , internal
Certification
FCC Class A,CE Class A
Operating Temperature
32 to 122 °F(Oto 50 ° C)
Storage Temperature
-40 to 158 oF(-40 to 70 ° C)
Operating Humidity 10 to 90% , non-condensing
Storage Humidity
10 to 90% , non-condensing

Linksys LGS108P Specifications

General

Switch layer	-
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
MAC address table	8000 entries
Certification	FCC Class A, CE
Product color	Black
LED indicators	Activity, Link, PoE
Input current	1.2 A
Input voltage	54 V
Power consumption (typical)	7 W
Total Power over Ethernet (PoE) budget	50 W
Power over Ethernet (PoE) ports quantity	4
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	104 mm
Width	210 mm
Height	25 mm
Weight	556 g
