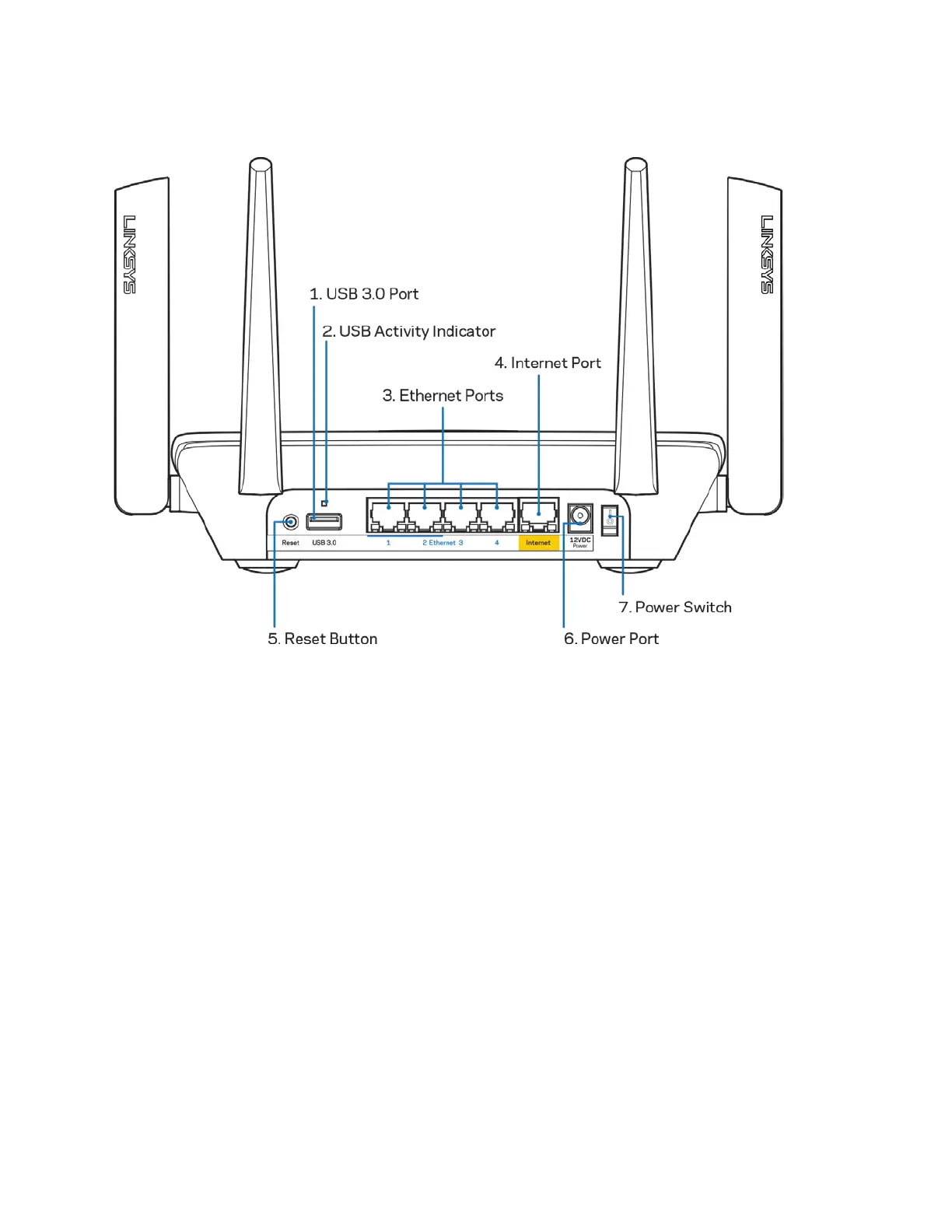

USB 3.0 port (1)— Connect and share USB drives on your network or on the internet.
Note—You might need to update your router firmware to use this port.
USB activity indicator (2)— Lights indicate data transfer to/from external devices.
Ethernet ports (3)—Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to
wired devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Internet port (4)— Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cable on the Internet port.
Reset button (5)— To factory reset your router, press and hold while the light on top of the router
blinks red. Do not release the button until the light goes out and then turns bright red.
Power port (6)—Connect the included AC power adapter.
Power switch (7)—Press | (on) to turn on the router.
