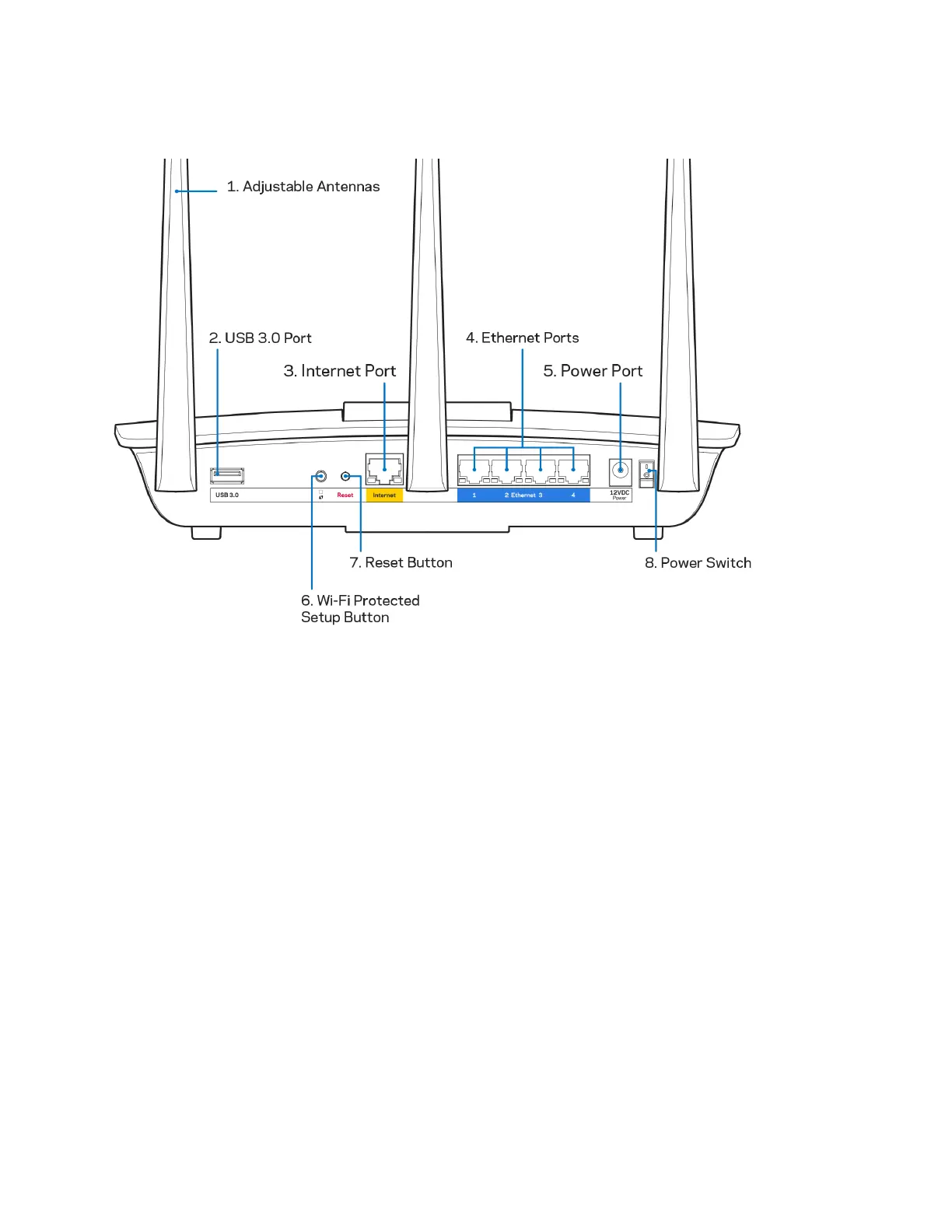

Back view
Adjustable antennas (1)
—For best performance, position the antennas vertically as shown in the
drawing.
USB 3.0 port (2)—Connect and share a USB drive or USB printer on your network or on the internet.
Internet port (3)—Connect an Ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cables on the Internet ports.
Ethernet ports (4)—Connect Ethernet cables to these blue gigabit (10/100/1000) ports, and to wired
devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Power port (5)—Connect the included AC power adapter.
Wi-Fi Protected Setup™ button (6)—Press to configure wireless security on Wi-Fi Protected Setup-
enabled network devices.
Reset button (7)—Press and hold until the illuminated Linksys logo starts flashing to reset the router
to factory settings. You can also restore the factory settings using Linksys Smart Wi-Fi on the internet
or mobile app.
Power switch (8)—Press | (on) to turn on the router.
