Chapter 3: Getting to Know the Wireless-G USB Network Adapter
The USB Port
Wireless-G USB Network Adapter
Chapter 3: Getting to Know the Wireless-G USB Network
Adapter
The USB Port
The Adapter’s USB port is located on the side of the Adapter. You will connect the included USB cable to this port
and your PC’s USB port. All power is provided through the USB connection, so a power adapter is not needed.
The LED Indicators
The Adapter's LEDs indicate the status of the Adapter’s power and wireless connection.
Power Green. The Power LED lights up when the Adapter is adequately powered by the USB connection.
Link Green. The Link LED lights up when the Adapter has an active wireless connection. It will flash when
data is transmitted.

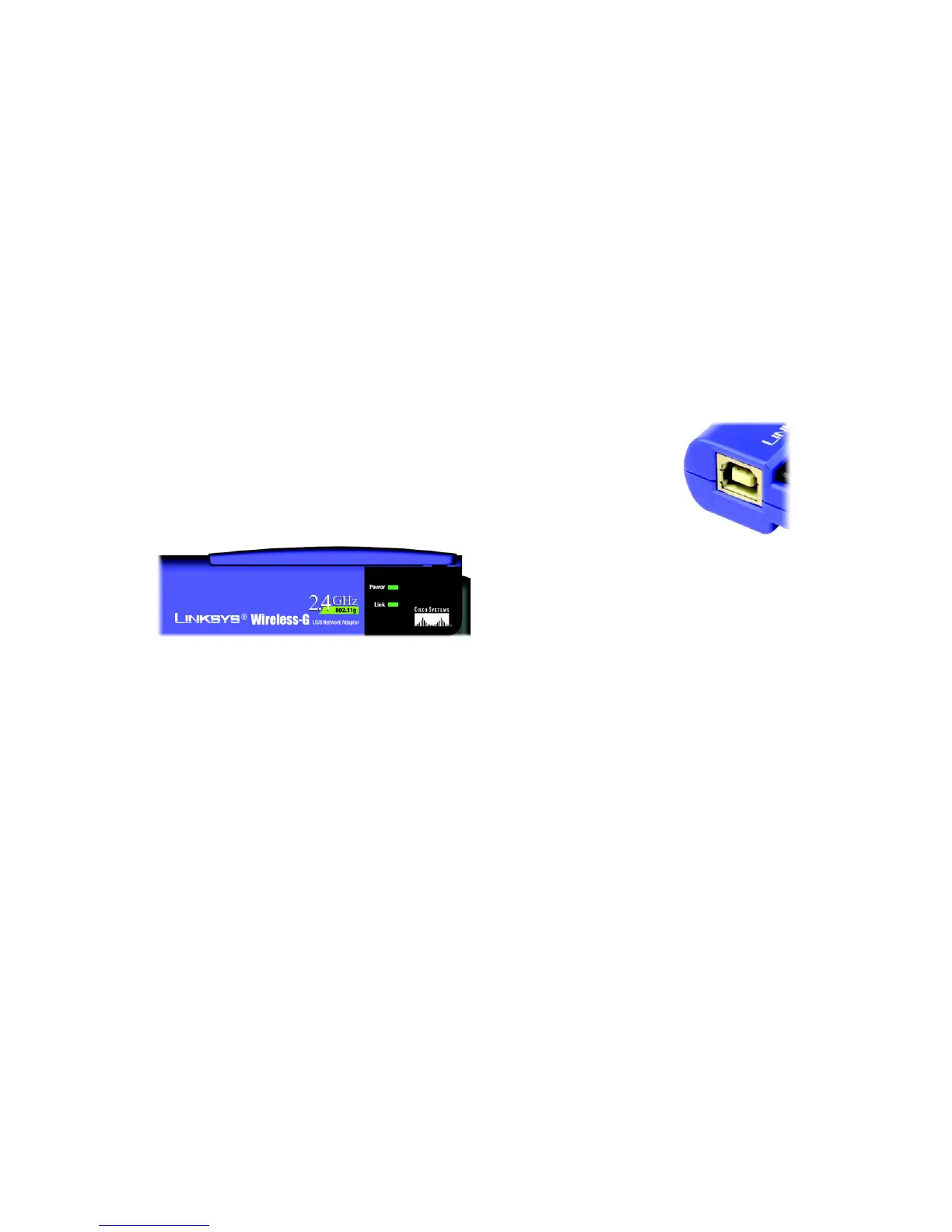

Figure 3-1: USB Port
Figure 3-2: Front Panel
