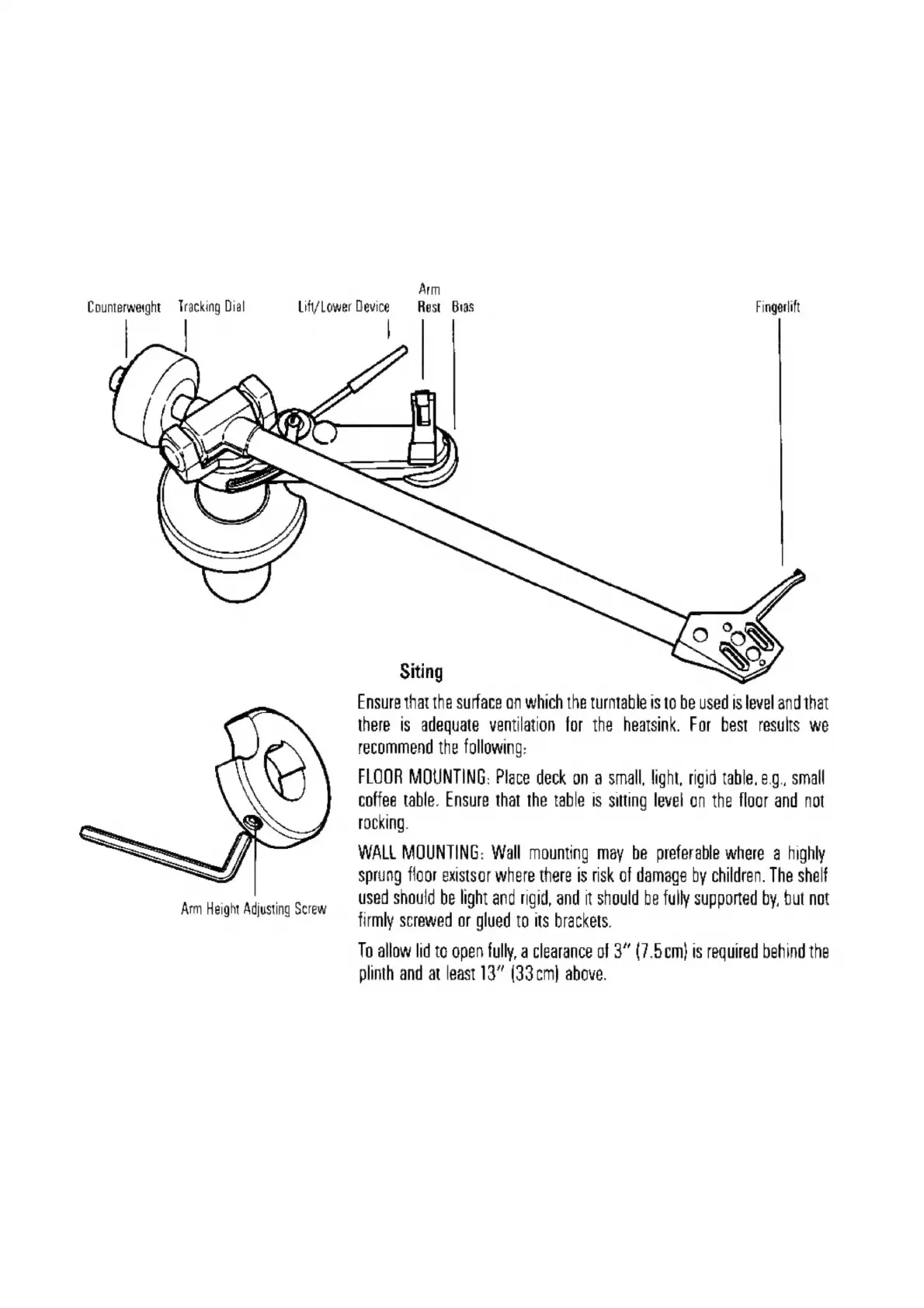

Linn AXIS - Page 4

Arm
Counterweight Tracking Dial Lif/Lower Device Rest Bras Fingerlift
Arm Height Adjusting Screw
Siting
Ensure that the surface an which the turntable ts to be used is level and that
there is adequate ventilation for the heatsink. For best results we
recommend the following:
FLOOR MOUNTING: Place deck on a small, light, rigid table. e.9., small
coffee table. Ensure that the table is sitting level on the floor and not
rocking.
WALL MOUNTING: Wall mounting may be preferable where a highly
spring fioor existsor where there is risk of damage by children. The shelf
used should be light and rigid, and it should be fully supported by, but not
firmly screwed or glued to its brackets.
To allow lid to open fully, a clearance of 3” (7.5cm} is required behind the
plinth and at least 13” (33cm) above.
