Page 12 of 12 FA69348–2 English
Jun 2013
12
How To Configure the Message Editor
and Logo Editor
Linx 5900 & 7900
2.2 Logo Editor Defaults
The options in this section are accessed from the Logo Editor Defaults page. These options
are only available on the 7900 printer.
To access the Logo Editor Defaults page from the Print Monitor page, select Menu > Setup
> Editor Defaults > Logo Editor Defaults. The printer displays the Logo Editor Defaults
page.

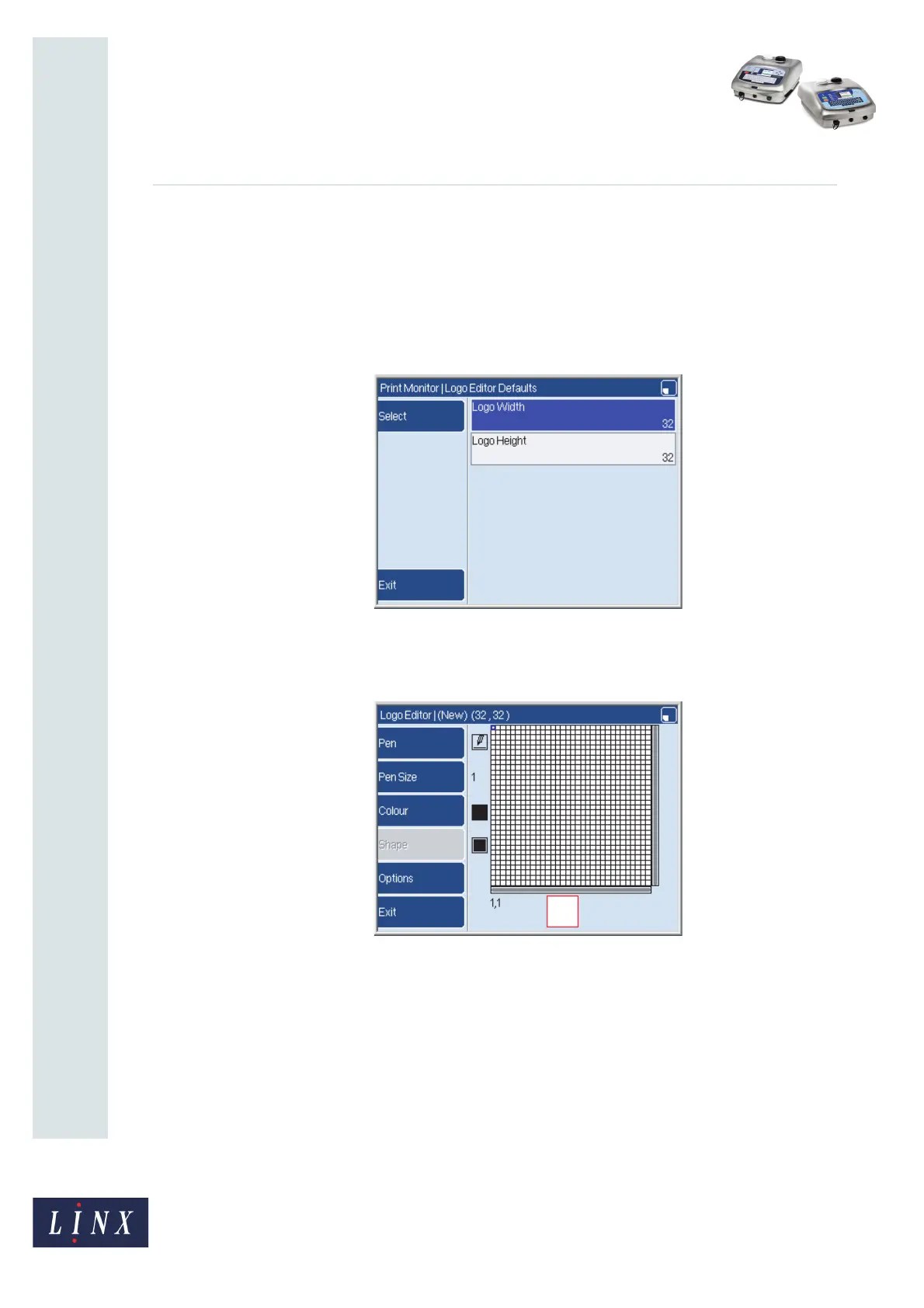

Figure 12. Logo Editor Defaults page
You can use the options on this page to change the default width and height of a new logo.
The width and height are displayed at the top of the Logo Editor page.
Figure 13. Logo Editor: new logo
2.2.1 Logo Width
Use this option to change the default width for a new logo. The minimum value is 1 and the
maximum value is 256.
2.2.2 Logo Height
Use this option to change the default height for a new logo. The minimum value is 1 and the
maximum value is 34.
69246
69247
