How To Create a Production Schedule
Linx 7900
Product Sensor
The printer resets the schedule when a signal is received from the product sensor. If you use
this type of trigger, the printer displays an additional option.

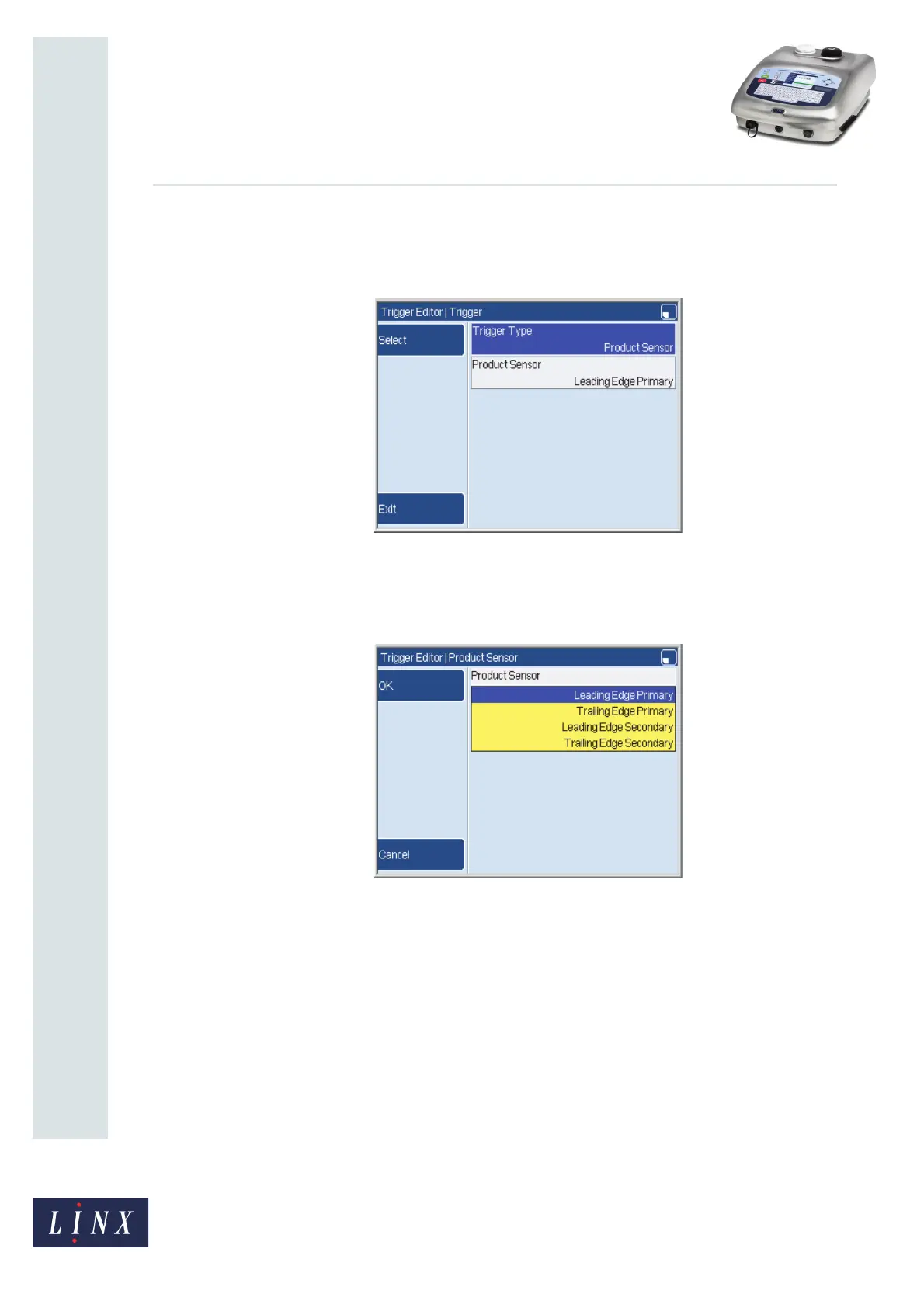

Figure 23. Trigger Editor page: Product Sensor
Product Sensor
Use the Product Sensor option to select the product sensor setup that you use.
Figure 24. Product Sensor page
Leading Edge Primary
The printer resets the schedule when the primary product sensor detects the leading edge
of a product.
Trailing Edge Primary
The printer resets the schedule when the primary product sensor detects the trailing edge of
the product.
Leading Edge Secondary
The printer resets the schedule when the secondary product sensor detects the leading edge
of a product.
