How To Change the System Setup
Linx 5900 & 7900
2.2.1 Speed Selection
Use the Speed Selection page to select the measurement method.

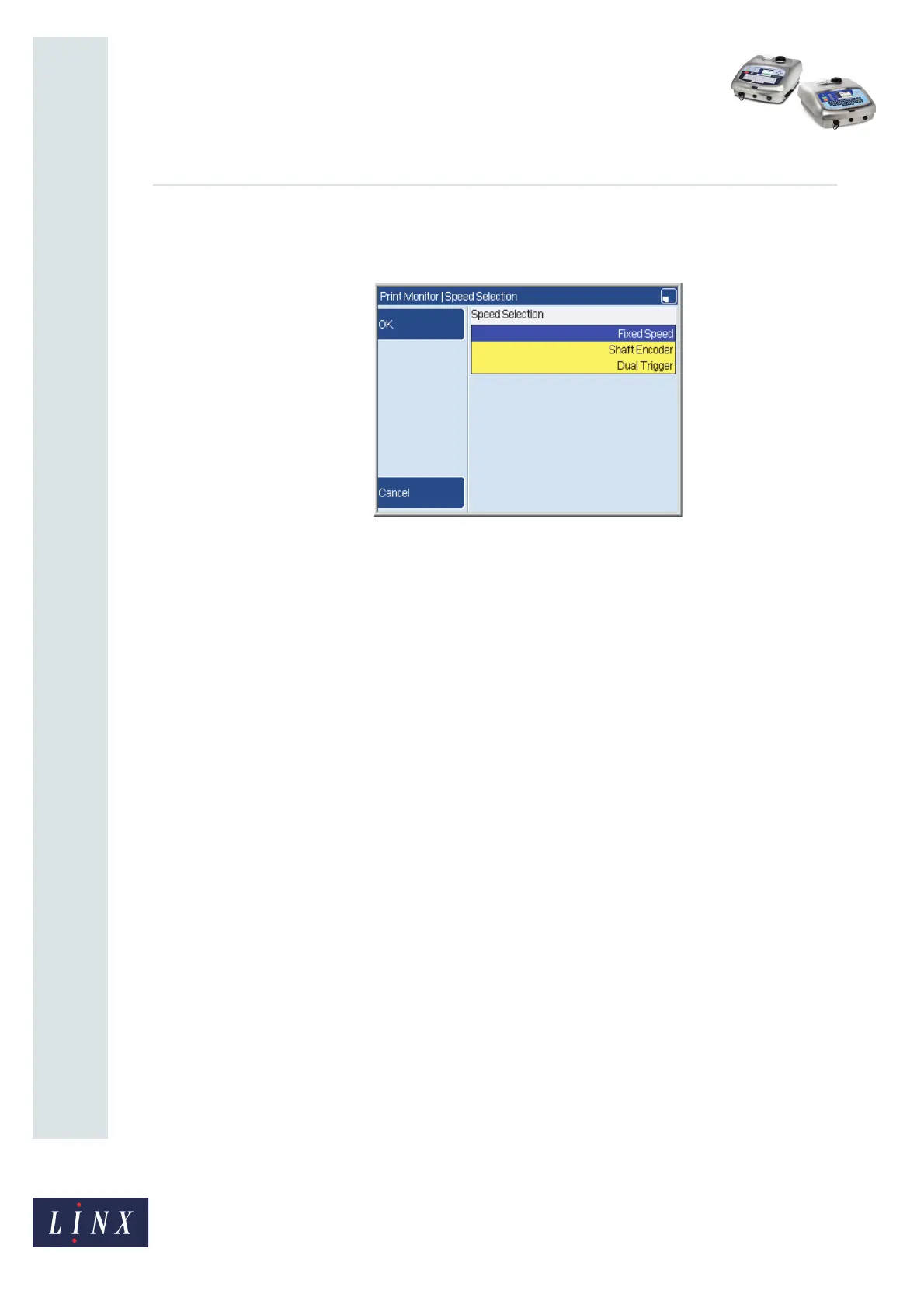

Figure 6. Speed Selection page
You can use any of the following settings:
Fixed Speed
You tell the printer the line speed, and the printer prints at the correct rate.
Shaft Encoder
Use a shaft encoder to make sure that the print speed matches the line speed.
Dual Trigger
Use the time difference between two trigger devices to continuously measure the line
speed.
2.2.2 Fixed Speed
This option is not displayed unless you set the Speed Selection option to ‘Fixed Speed’. Use
this option to enter the value for the line speed. If you do not know the line speed, see
‘Calculate Line Speed’ below.
