Maintenance
Lubricating and Greasing Instructions
The engine should be well oiled and greased in order to run
properly.
Regularly lubricate all side rods, linkage components and pickup rollers to prevent
them from squeaking. Use light household oil and follow the lubrication points
marked “L” below. Do not over-oil. Use only a drop or two on each pivot point.
Removing the Boiler
The locomotive’s internal gearing was greased at the factory and should not need
additional grease until after 50 hours of operation or one year, whichever comes
first. To access the gear box and axles, do the following:

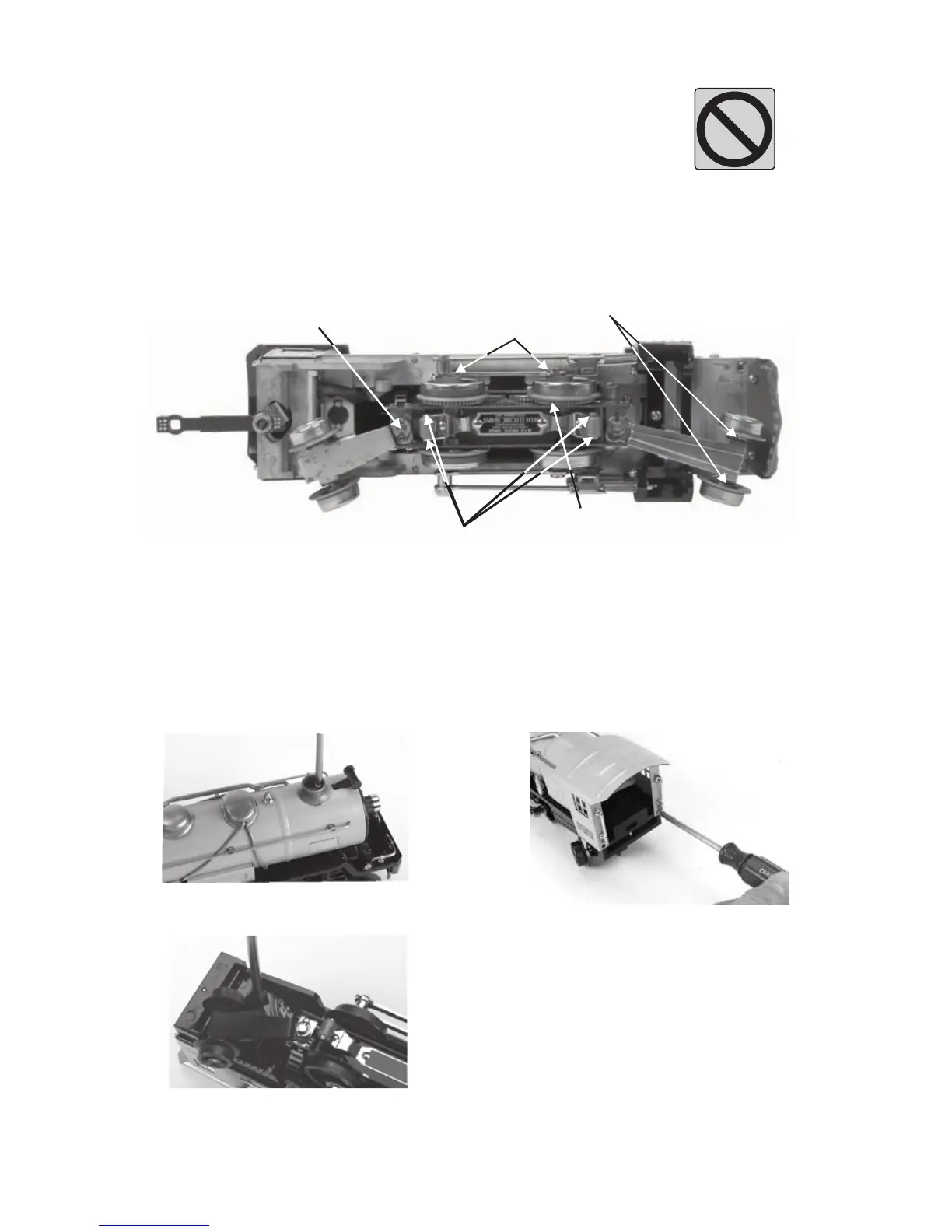

Fig. 8: Lubricating the Locomotive
Lionel Corporation No. 255, 260 & 263 Steam Engines with Proto-Sound® 3.0
33
Figure 9: Removing Screw
Figure 10: Removing Screws
1. Remove screw from top of engine. 2. Remove screws from end.
3. Remove 2 screws from bottom of engine.
Figure 11: Removing Screws
Lubricate Pick Up Rollers (L)
Lubricate Gears (L)
Lubricate Front and Rear Axles
Lubricate Pivot Points
Lubricate Side Rods (L)
