Rev: 09.29.2015
Page 4
Power Tongue Jack Install Manual

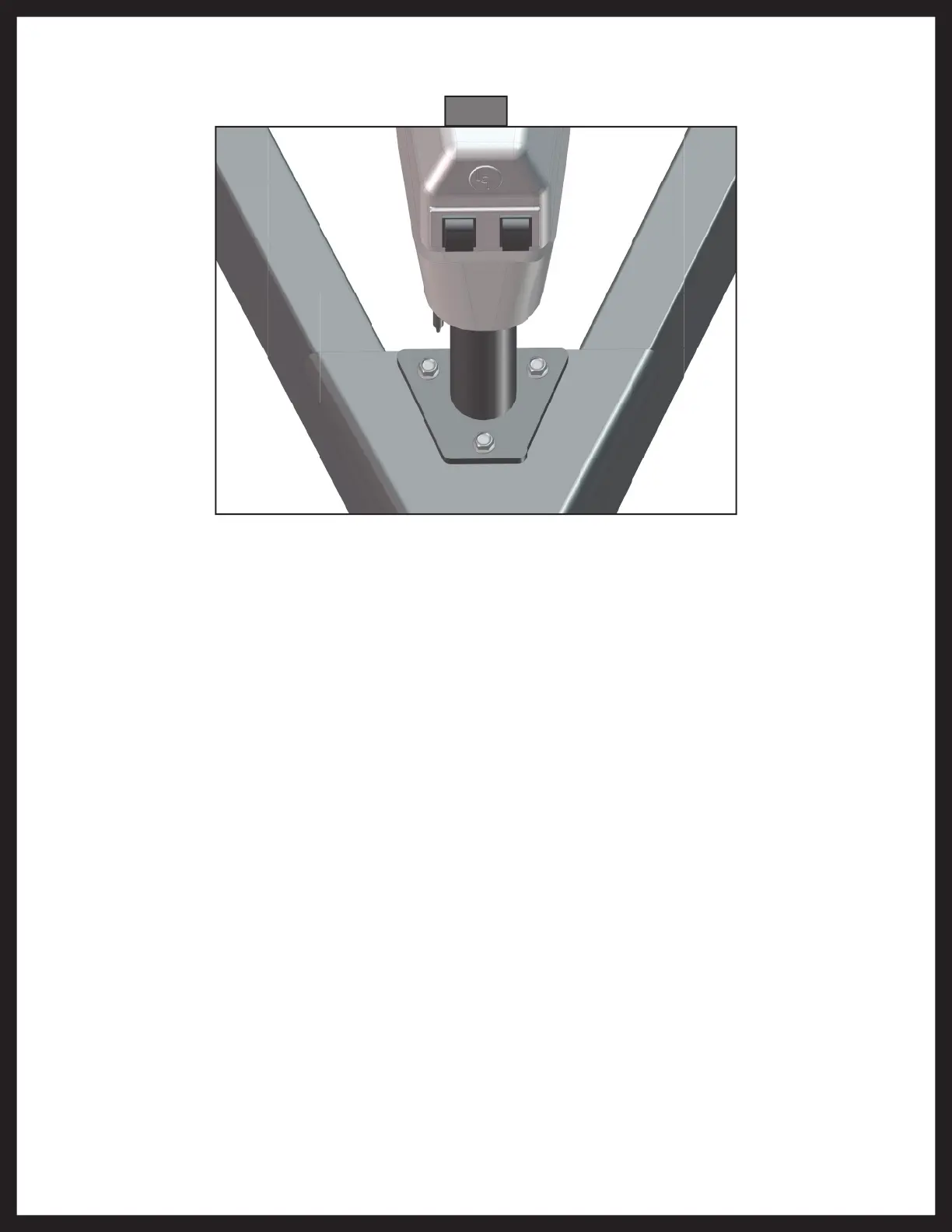

3. Secure the Power Tongue Jack to the coupler plate with three (3) ⁄" - 16x1; Serrated Flange Grade 5
Zinc coated bolts (Fig. 4).
Fig. 4
4. Connect the red power wire from the Power Tongue Jack housing to a grounded 12V power supply on
the travel trailer.
NOTE: The Power Tongue Jack MUST be wired through a 30 amp fused circuit.
5. Reattach the foot pad to the jack leg by sliding the foot pad back over the bottom of the jack leg and
securing it with the clevis pin previously removed.
