Lippert Components 285318 - Parts and Preparation; Parts List; Resources Required; Pre-Installation Steps

Rev: 09.29.2015
Page 3
Power Tongue Jack Install Manual
The coach MUST be supported per OEM specifications before working underneath.
Failure to do so may result in death or serious injury.
Installation

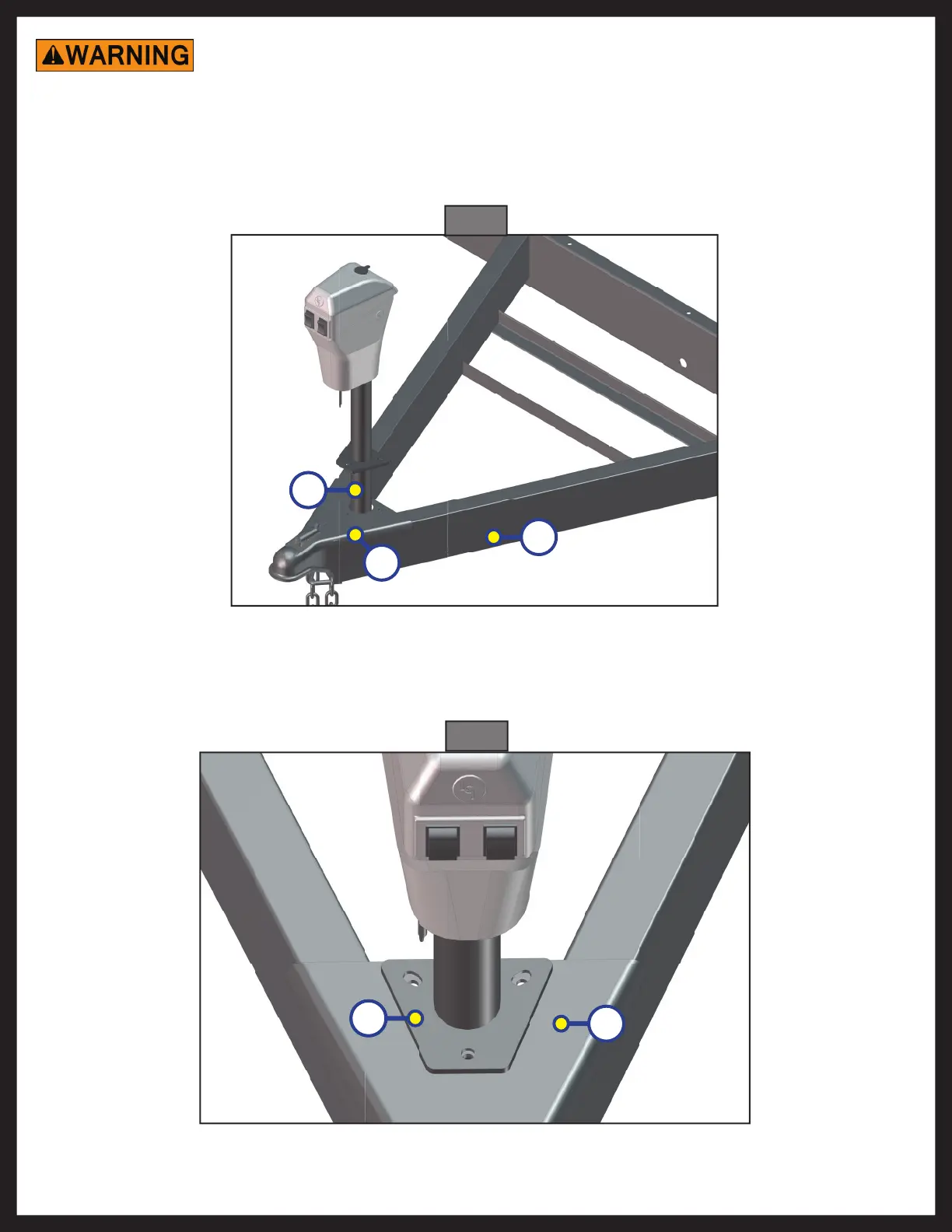

1. Carefully slide the jack leg (Fig. 2A) through the hole in the coupler (Fig. 2B) on the travel trailer “A”
frame (Fig. 2C).
Fig. 2
2. Align the three (3) holes in the Power Tongue Jack mounting plate (Fig. 3A) with the three (3) holes in
the coupler (Fig. 3B).
Fig. 3
AA
B
AA
B
C
