WIRING THE SYSTEM
The Lippert Above Floor Sofa Slideoout System connects to the OEM unit directly
from the Lippert Above Floor Sofa Slideoout System Motor. Three wire leads,
positive (red), ground (black) and motor brake (brown), connect into the OEM
wiring system via weather-pack connector.
For a complete wiring diagram of this system, check with your OEM.

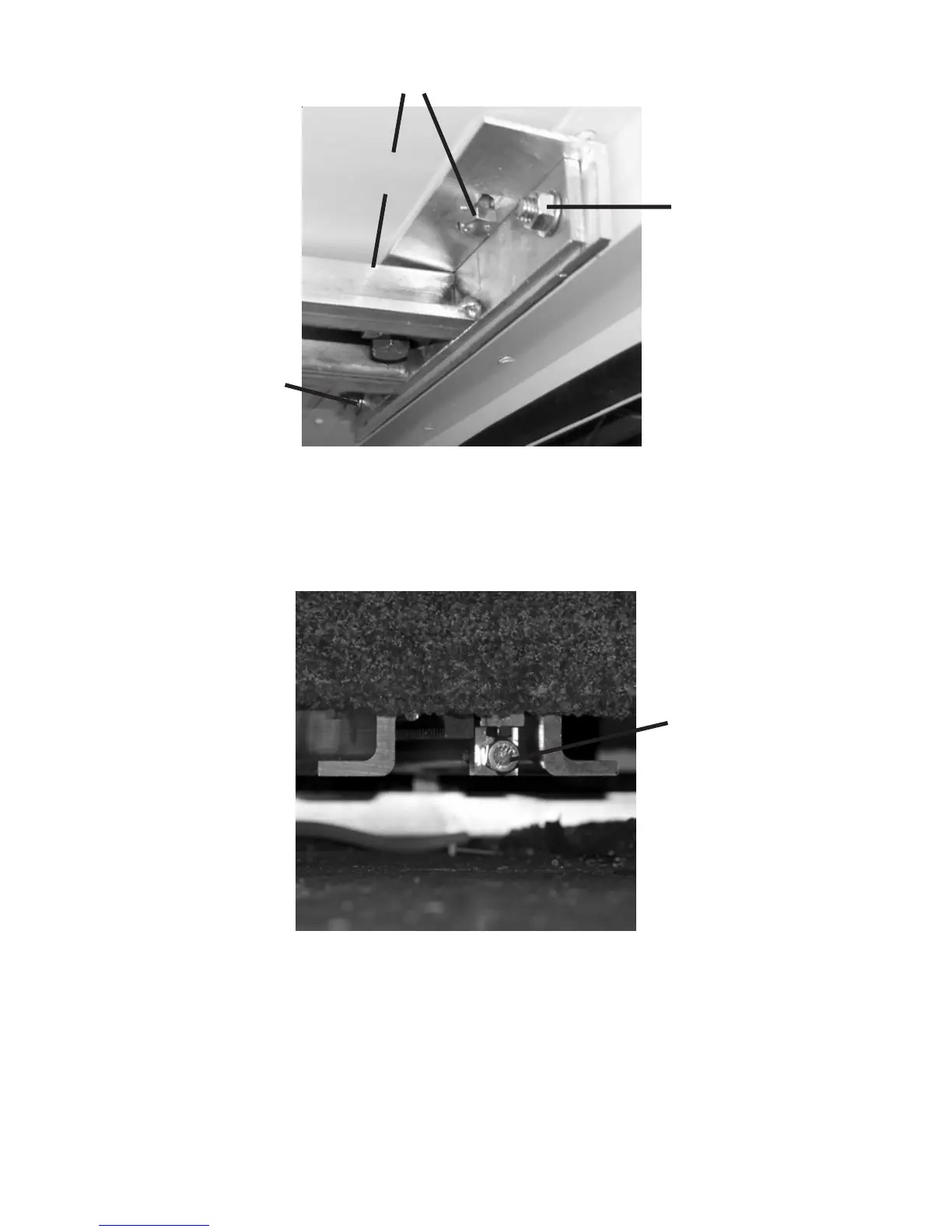

ROOM ADJUSTMENT
HORIZONTAL (SIDE-TO-SIDE) ADJUSTMENT
VERTICAL
(UP AND DOWN)
ADJUSTMENT
VERTICAL
(UP AND DOWN)
ADJUSTMENT
OUT STOP
ADJUSTMENT
NOT SHOWN
1. For Horizontal Adjustment, back both lag bolts out just enough to release
tension. In a Dual System, lag bolts must be loosened on both head stocks to
adjust the room horizontally.
2. Adjust room to desired location.
3. Tighten lag bolts before operating room.
1. Loosen jam nut (shown) on the outside of the Out Stop Bracket.
2. Adjust Stop Bolt to desired location.
3. Tighten jam nut.
