7
PIÈCES DE RECHANGE
ARTICLE 3K COURT 3K STANDARD 4K STANDARD MARINE DESCRIPTION
1 80938/9 80938/9 80938/9 80938/9 Couvercle supérieur (blanc/noir)
2 87057 87057 87057 87057 Vis du couvercle
3 87942 87942 87942 87942 Vis de mise à la masse du moteur
4 86111 86111 86111 86111 Rondelle de blocage
5 75625 75625 75625 75625 Moteur et bornes
6 87916 87916 87916 87916 Tube du couvercle
7 87108 87108 87108 87108 Trousse pour engrenage conique
8 88002 88002 88002 88002 Couvercle de boîte de vitesses
9 70298 70298 71132 70298 Goupille moletée à cartouche
10 87941 87941 87941 87941 Arbre d’entraînement
11 88058/63 88058/63 88058/63 88058/63 Couvercle inférieur
12 80909 80909 80909 80909 DEL*
13 87489 87500 87559 S/O
Boîtier du vérin et ensemble du
piston, course 40,6 cm (16 po)
14 87847 87847 87847 87847 Support de rondelles
15 70667 70667 70667 70667 Tige
16 80992 80992 80992 80992
Faisceau de mise à la terre
(non illustré)
17 87586 87586 87586 87586 Interrupteur de voyant
18 87570 87570 87570 87570 Interrupteur du moteur
19 87912 87912 87912 87912 Douille de réduction de tension
20 80993 80993 80993 80993 Cavalier et fusible
21 S/O S/O S/O S/O Fusibles
22 Optional Optional Optional Optional Manivelle
23 Optional Optional Optional Optional Goupille fendue
24 Optional Optional Optional Optional Pied rond
25 Optional Optional Optional Optional Axe d’épaulement
26 S/O S/O S/O S/O
Écrou d’entraînement hexagonal
(non illustré)
27 S/O S/O S/O S/O Fil de fusible
28 87150 Support
29 84037 Roulette

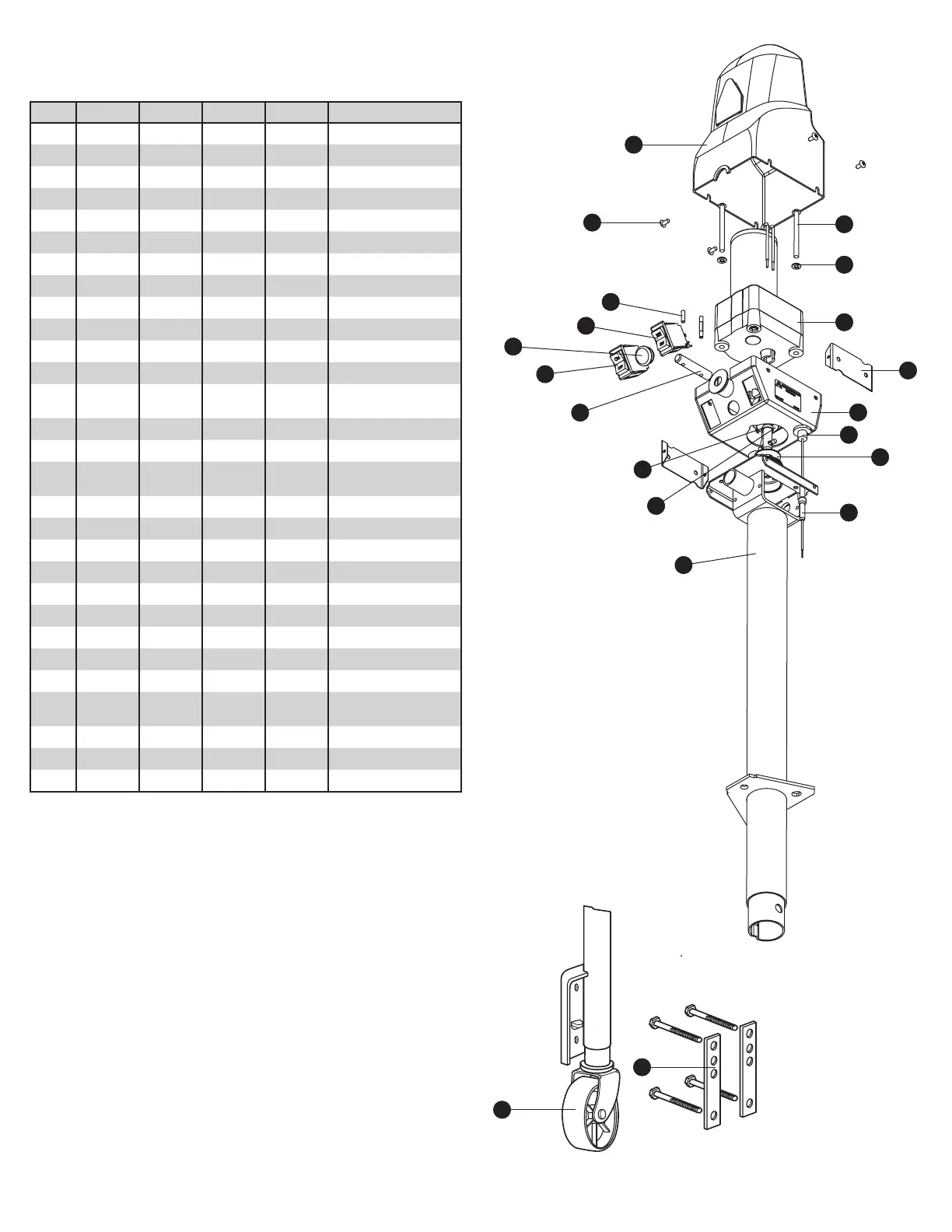

VÉRIN MOTORISÉ 3K ET 4K
1
29
28
VÉRIN MOTORISÉ
POUR MARINE
2
3
4
5
8
11
19
13
20
14
17
12
18
9
10
6
7
s
Fusible AGC-30 A de type Buss
