Lippert Components JT’s Strong Arm 191023 User Manual

3
lci1.com 574-537-8900 Rev: 10.23.19
JT’s Strong Arm
™
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001455

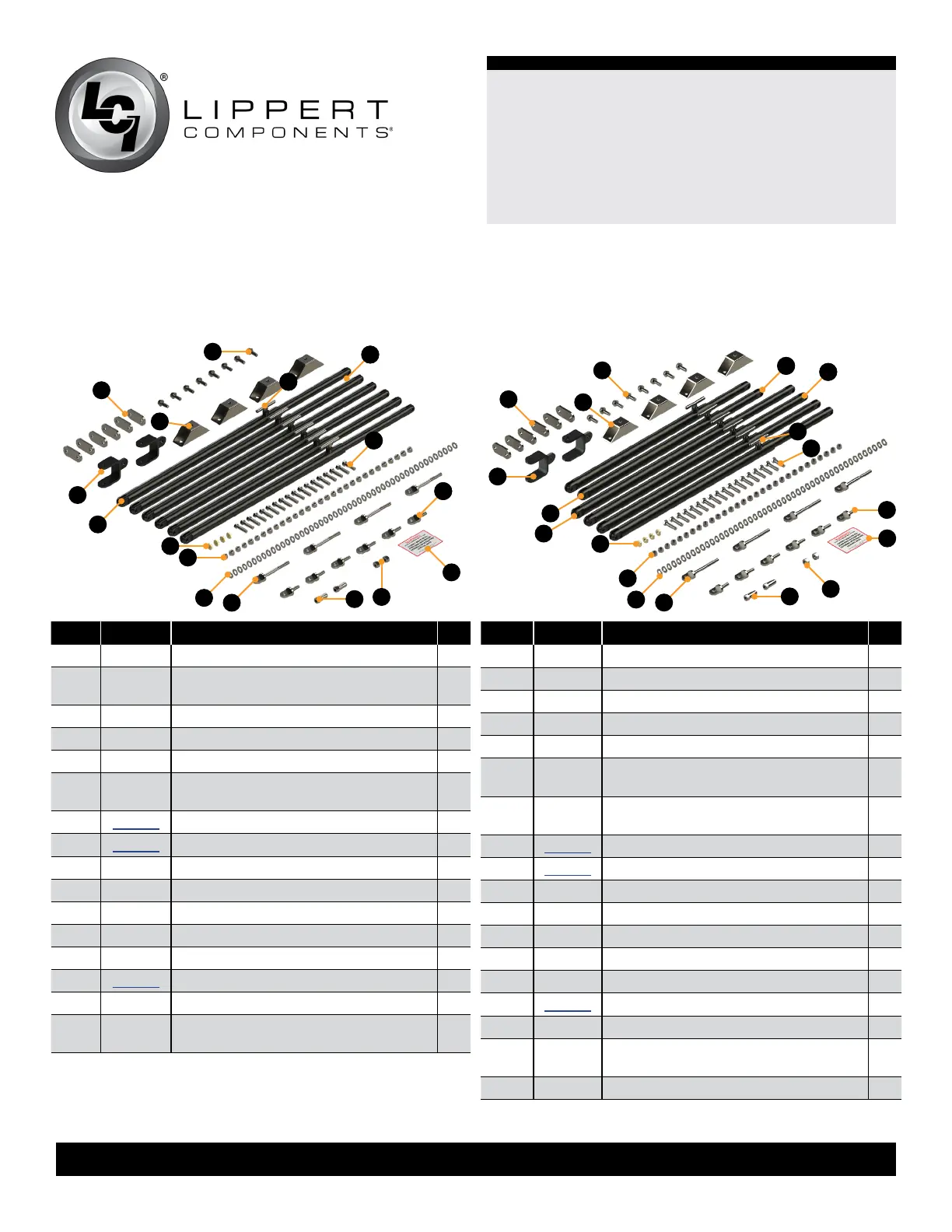

Parts List
P/N 191023 - Jack Stabilizer, 5th Wheel - 58” or
more between front jacks
Letter Part# Description Qty
A 191014 Stabilizer Outer 1 1/4” O.D. 6
B 191016
Label, Front Electric Landing Jacks
“Warning Sticker”
1
C 191015 Stabilizer Inner 1” O.D. 6
D 191018 Clevis for Front Electric Landing Jacks 2
E 191012 T-Bolt, 3/8” - 16 x 3/4” 6
F 191022
Flanged bushing, 3/8” I.D.x 1/2 O.D. x
5/32”
4
G 118044 Nut, 3/8” - 16 Nyloc, Zn 30
H 135840 Washer, 3/8” SAE Flat, Zn 48
I 155004 Hex cap screw, 3/8” - 16 x 1 1/2” Gr5, Zn 18
J 191011 Swing bolt, 3/8” - 16 x 4” 4
K 191010 Swing bolt, 3/8” - 16 x 1 1/4” 6
L 191017 Nut, 3/8” - 16 “silver bullet” lifting handles 2
M 191019 Nut, 3/8” - 16 heavy hex, Grade A, Zn 2
N 191013 Stiffening pad, 2 3/4” x 1 1/4” x 3 Ga 6
O 191020 Spacer mount, 4 1/2” x 1 1/2” x 1 1/2” 4
P 191021
Bolt, 3/8” - 16 x 1” hex washer head,
slotted thread cutting, Zn
8
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Letter Part# Description Qty
A 194468 Stabilizer, outer, 1 1/4” O.D., short* 2
B 191014 Stabilizer, outer, 1 1/4” O.D. 4
C 194469 Stabilizer, inner, 1” O.D., short* 2
D 191015 Stabilizer, inner, 1” O.D. 4
E 191012 T-Bolt, 3/8” - 16 x 3/4” 6
F 191022
Flanged bushing, 3/8” I.D. x 1/2” O.D. x
5/32”
4
G 191016
Label, Front Electric Landing Jacks
“Warning Sticker”
1
H 118044 Nut, 3/8” - 16 Nyloc, Zn 30
I 135840 Washer, 3/8” SAE flat, Zn 48
J 155004 Hex cap screw, 3/8” - 16 x 1 1/2” Gr5, Zn 18
K 191010 Swing bolt, 3/8” - 16 x 1 1/4” 6
L 191011 Swing bolt, 3/8” - 16 x 4” 4
M 191017 Nut, 3/8” - 16 “silver bullet” lifting handles 2
N 191019 Nut, 3/8” - 16 heavy hex, Grade A, Zn 2
O 191013 Stiffening pad, 2 3/4” x 1 1/4” x 3 Ga 6
P 191020 Spacer mount, 4 1/2” x 1 1/2” x 1 1/2” 4
Q 191021
Bolt, 3/8” - 16 x 1” hex washer head,
slotted thread cutting, Zn
8
R 191018 Clevis, front electric landing jacks 2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
P/N 191024 - Jack Stabilizer, 5th Wheel, Short -
Less than 58” between front jacks
*Two arms are 3” shorter
