Quick Drop Tongue
Jack
®
Installation and Owner’s Manual
(For Aftermarket Applications)
FAILURE TO FULLY ENGAGE THE CRANK HANDLE
INTO THE STORED POSITION WHEN USING THE
POWER TOOL OPERATION MODE COULD CAUSE
PRODUCT DAMAGE OR PERSONAL INJURY.
Fig.4
USE OF A POWER TOOL WITHOUT A CLUTCHING
FEATURE AND OPERATED AT FULL SPEED WHILE IN
DRILL OVERRIDE MODE COULD CAUSE PERSONAL
INJURY OR DAMAGE TO THE TONGUE JACK’S DRIVE
NUT MECHANISM. THE DRIVE NUT MECHANISM CAN
BE STRIPPED IF THE POWER TOOL CONTINUES TO
BE OPERATED IN DRILL OVERRIDE MODE AFTER
THE JACK LEG IS RETRACTED/EXTENDED TO THE
FULLEST EXTENT.
DO NOT USE AN IMPACT TOOL TO TURN THE
TONGUE JACK DRIVE NUT. AN IMPACT TOOL
CAN OVERPOWER THE DRIVE NUT MECHANISM,
CAUSING DAMAGE TO THE TONGUE JACK AND
VOIDING THE PRODUCT WARRANTY.
FAILURE TO MAINTAIN POSITIVE CONTROL OF
THE CORDLESS DRILL DURING OPERATION MAY
CAUSE TORQUE TWIST TO OCCUR, INJURING THE
OPERATOR AND/OR DAMAGING EQUIPMENT.
A
B
Operation
Power Tool Operation

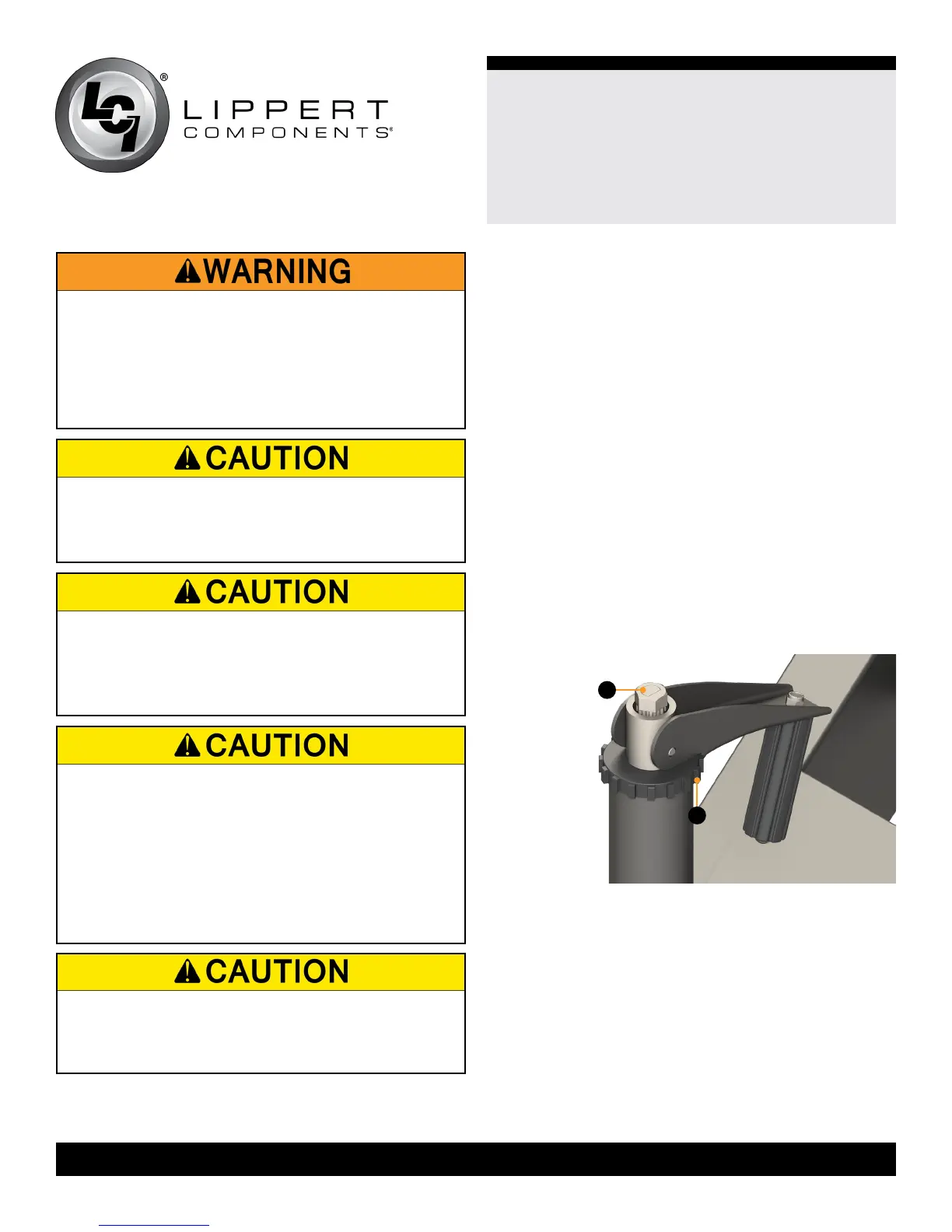

1. Make sure the crank handle is in its stored position
(Fig.4).
NOTE: When the crank handle is in its stored position, the
drive nut is raised up (Fig.4A), making it accessible for use
with a cordless or electric drill or screw gun. Do not use
an impact tool. An impact tool may cause damage to the
tongue jack drive nut screw mechanism.
2. Use a ¾” drive socket with either a cordless or electric
drill or screw gun.
A. Insert the drive socket over the hex head of the drive
screw (Fig.4A).
B. Rotate the drive screw in a clockwise direction to
extend the jack leg.
C. Rotate the drive screw in a counterclockwise direction
to retract the jack leg.
THE QUICK DROP TONGUE JACK HAS A LIFTING
CAPACITY OF 2,000 LBS. DO NOT EXCEED THIS
LIMIT OR SEVERE PRODUCT DAMAGE, SERIOUS
PERSONAL INJURY OR DEATH MAY OCCUR. KEEP
PEOPLE AND PETS AT A SAFE DISTANCE DURING
INSTALLATION AND OPERATION OF THE TONGUE
JACK.
