7
lci1.com 574-537-8900 Rev: 08.14.20
Schwintek
Motorized TV Lift
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0002647

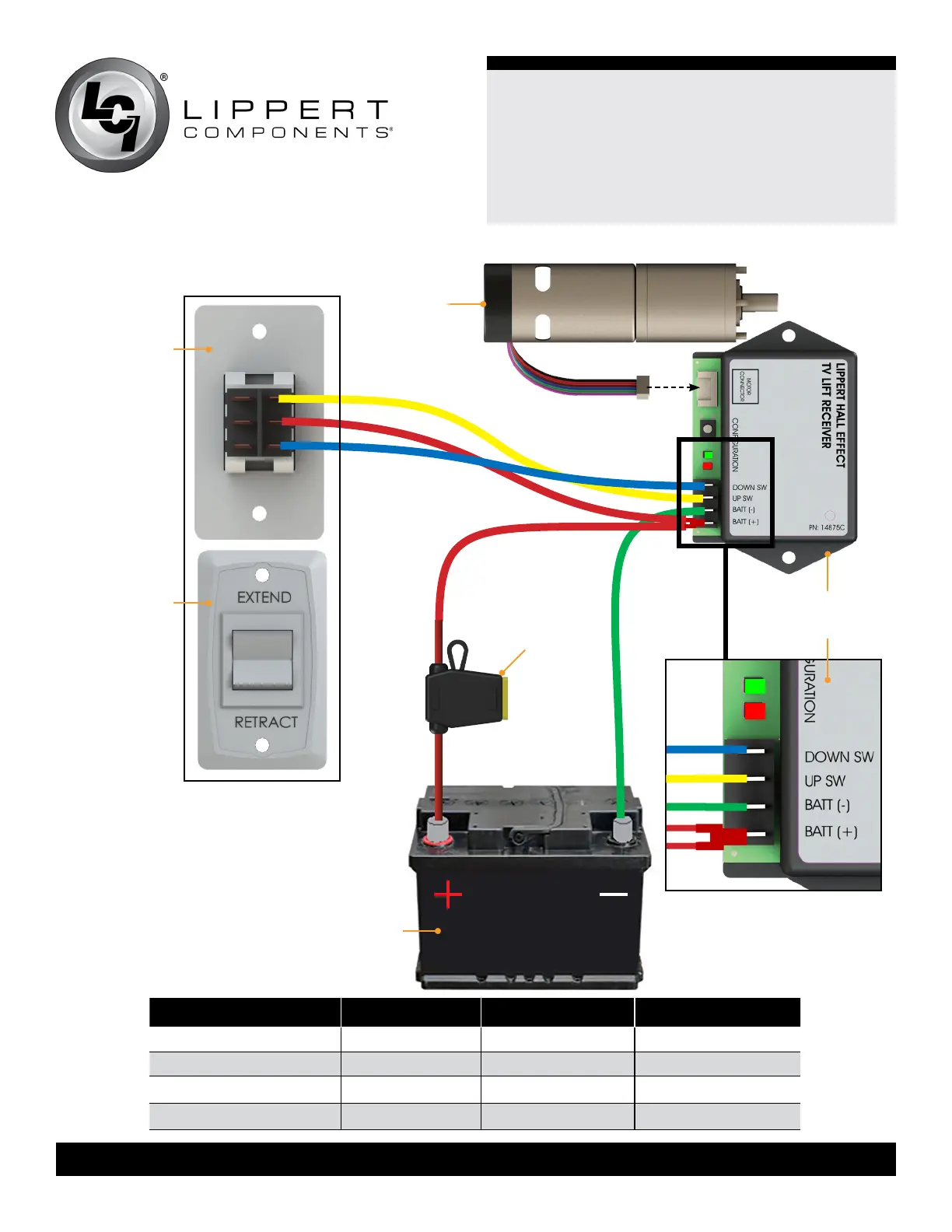

Wiring Diagram
SwitchSwitch ControllerController Circuit ProtectionCircuit Protection 12V DC Battery12V DC Battery
Top Pin (EXTEND) UP SW
Middle Pin (Power) BATT (+) 30 Amp Positive (Red) Post
Bottom Pin (RETRACT) DOWN SW
BATT (-) Negative (Black) Post
PN 253396
controller
PN 325978
motor
PN 199082
back of
switch
PN 199082
front of
switch
12V DC battery
30 amp
circuit
protection
