Smart Jack
™
model no. 643589
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001304lci1.com 574-537-8900 Rev: 04.18.18
Installation

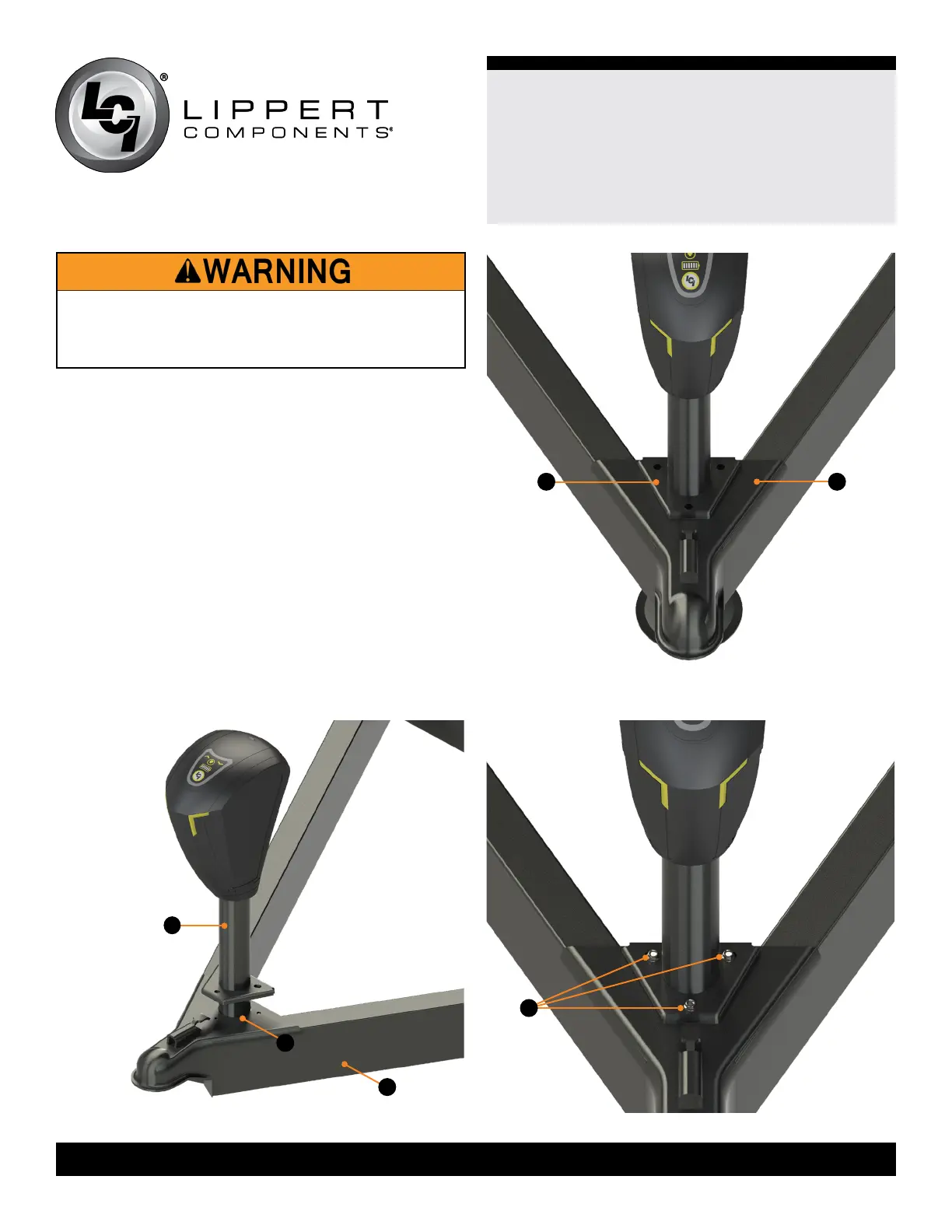

1. Carefully slide the jack leg (Fig.2A) through the hole
in the coupler (Fig.2B) on the trailer A- frame (Fig.2C).
2. Align the 3 holes in the Smart Jack mounting plate
(Fig.3A) with 3 holes in the coupler (Fig.3B).
3. Secure the Smart Jack to the coupler with the bolts
provided (Fig.4A).
4. Connect the red power wire from the Smart Jack
housing to a grounded 12V power supply on the trailer.
NOTE: The Smart Jack MUST be wired with a 30 amp in-
line fused circuit.
5. Reattach the foot pad to the jack leg by sliding the foot
pad back over the bottom of the jack leg, and securing
it with the previously-removed snapper pin.
Fig.2
A
A B
Fig.4
A
B
C
Fig.3
THE TRAILER MUST BE SUPPORTED PER OEM
SPECIFICATIONS BEFORE WORKING UNDERNEATH.
FAILURE TO DO SO MAY RESULT IN DEATH OR
SERIOUS INJURY.
Smart Jack
™
model no. 643589
Installation and Owner’s Manual
(For Aftermarket Applications)
