Lippert Components Solera Hybrid User Manual

6
lci1.com 574-537-8900 Rev: 03.19.18
Solera
®
Universal Hardware
Manual Awning to
Solera Hybrid Awning
(For Aftermarket Applications)
CCD-0001269

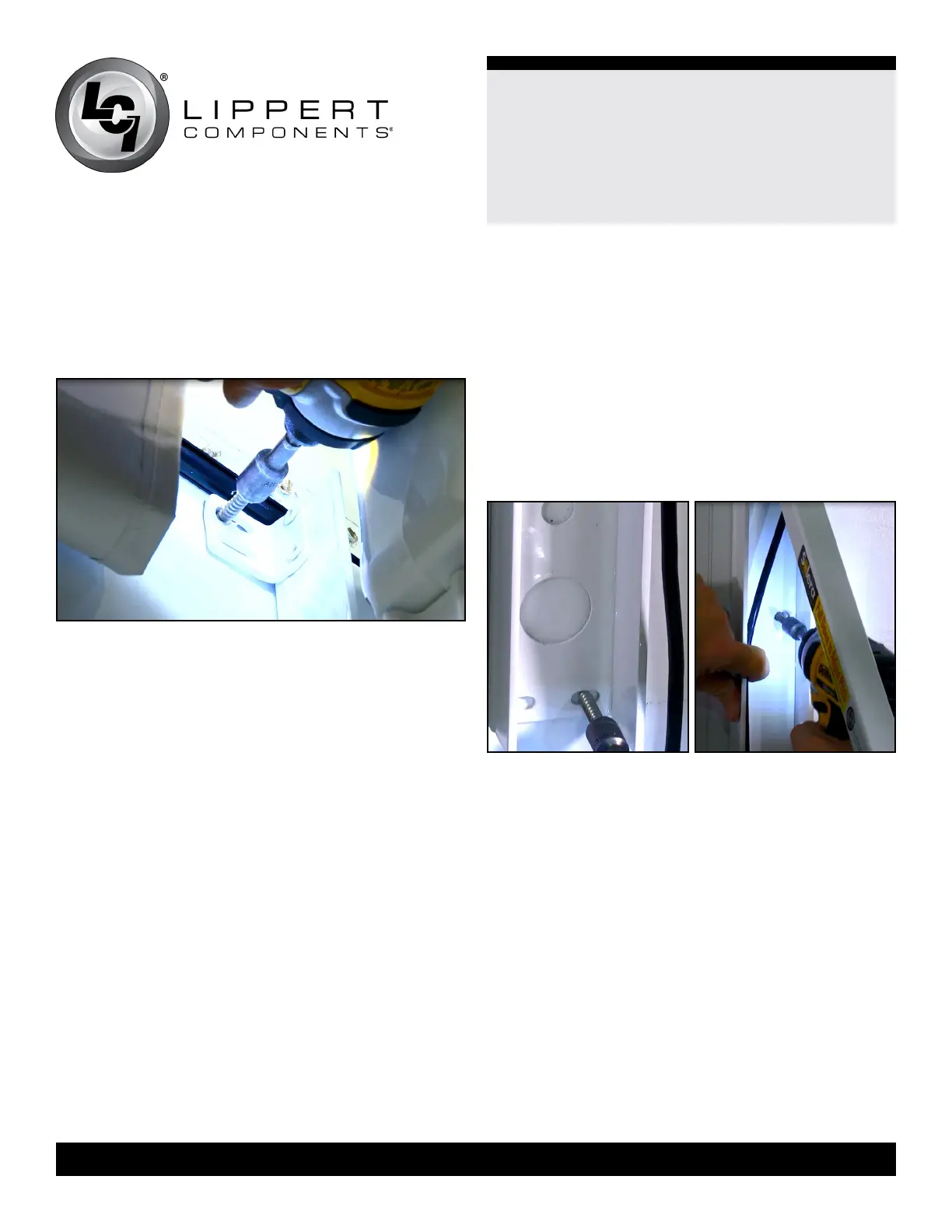

18. Secure the upper section of the drive mount arm to the
unit with 2 of the provided #14 x 1 ¼” screws (Fig.9).
NOTE: Do NOT install fasteners to the lower and middle
sections of the wall mount arm at this time.
Fig.10 Fig.11
21. Use the manual crank to fully extend the awning. See
“Operation” section of this manual.
22. Secure the lower (Fig.10) and middle (Fig.11) sections
of the drive and idler mount arms to the unit with the
provided #14 x 1 ¼” screws or rivets. Make sure the arm
is square on the unit wall. (There will be 2 screws in the
lower holes and 2 screws in the middle holes).
NOTE: For units with berglass sidewalls, LCI requires the
use of rivets for securing the lower and middle sections of
the mount arm.
NOTE: Silicone sealant MUST be used on all screws and
holes to prevent water from inltrating the unit.
23. Repeat Steps 22-23 for the idler mount arm.
Fig.9
19. Repeat Steps 3-18 for the idler side of the awning,
skipping all cam lock instructions.
NOTE: Because the converted awning is approximately 2”
wider than the previous awning, the support arm assembly
on the idler side will NOT align with the previous holes.
NOTE: The idler head does NOT have a cam lock. The
cotter pin is holding all the tension of the spring assembly.
NOTE: Be sure to handle the assembly with care and
always have a secure hold of the idler head.
20. Once the drive and idler side conversions are
complete, cut the nylon ties containing the support arm
assemblies.
