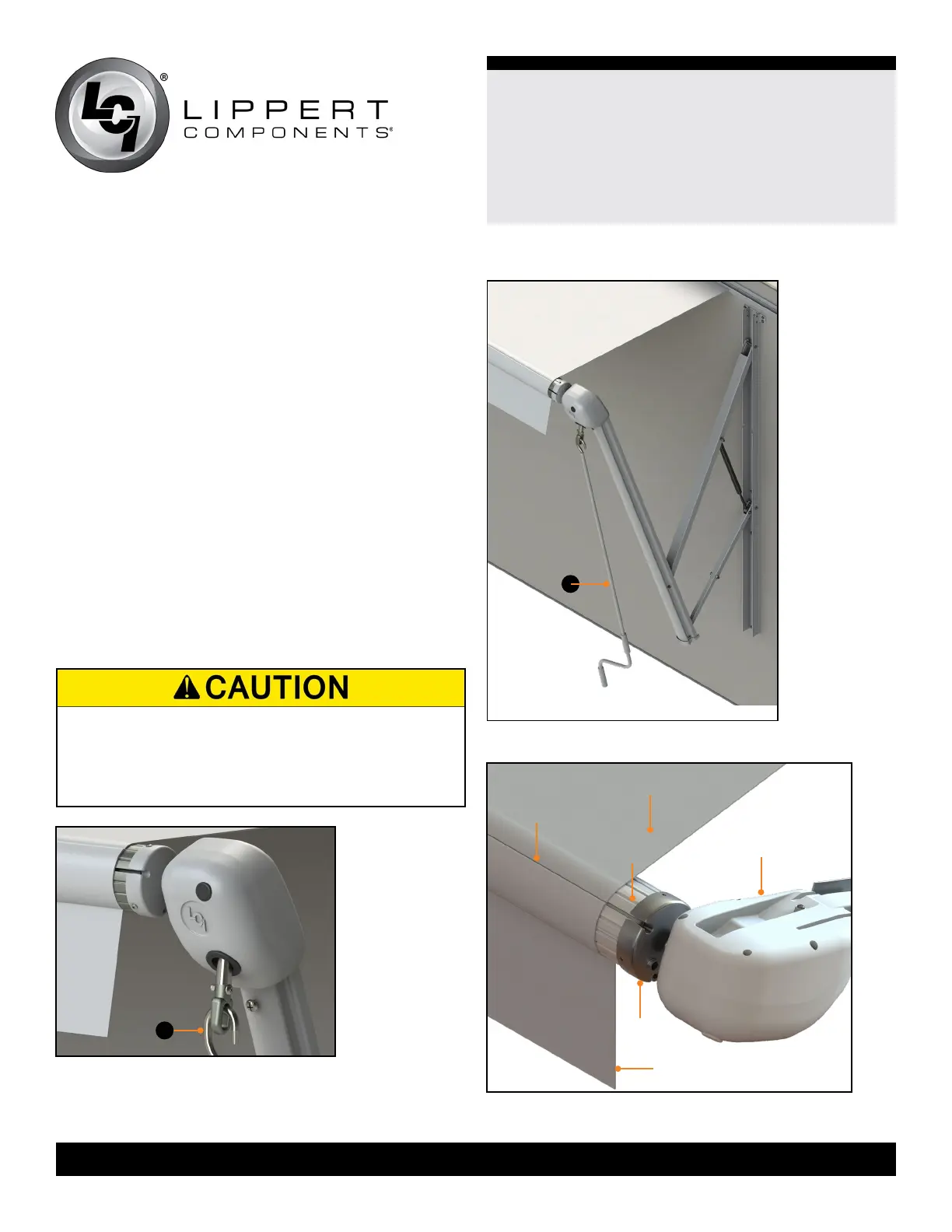

Lippert Components Solera Hybrid User Manual

11
lci1.com 574-537-8900 Rev: 03.19.18
Solera
®
Universal Hardware
Manual Awning to
Solera Hybrid Awning
(For Aftermarket Applications)
CCD-0001269
Operation
NOTE: If the unit is equipped with a locking latch, be sure
to unlock the latch prior to extending the awning. After
retraction and before travel, be sure to lock the support
arms back into place.
Extending the Awning
1. Locate the crank handle for the awning (Fig.27A).
2. Insert the hook end of the crank handle into the eye bolt
on the drive head (Fig. 26A).
3. Turn the crank handle so the eye bolt rotates in a
clockwise direction and fully extend the awning.
NOTE: Keeping the handle as parallel to the support arm
assembly as possible makes it easier to turn.
NOTE: Extension is considered complete when the fabric
is completely unrolled, the valance is hanging down from
the roll tube and a section of the roll tube is exposed
(Fig. 28).
TYING THE ROLL TUBE DOWN ONCE THE
AWNING IS EXTENDED WILL NOT ALLOW THE
FREE FLOATING SUPPORT ARMS TO WORK AS
DESIGNED AND MAY CAUSE DAMAGE TO THE
AWNING OR UNIT.
Fig.26
Fig.27
Fig.28
A
roll tube
drive head
fabric
polycord
fabric
valance
valance
polycord
A
