Lippert Power Steps 2.0 - Safety Label

Rev: 12.15.21 Page 6 CCD-0005300
Door
Door
Black
Large magnetic
reed switch
Black
Small magnetic
reed switch
Black
Round magnetic
switch
Magnet
Switch
Switch
Upper
floor level
Door
Magnet
6"
minimum
Fig. 2

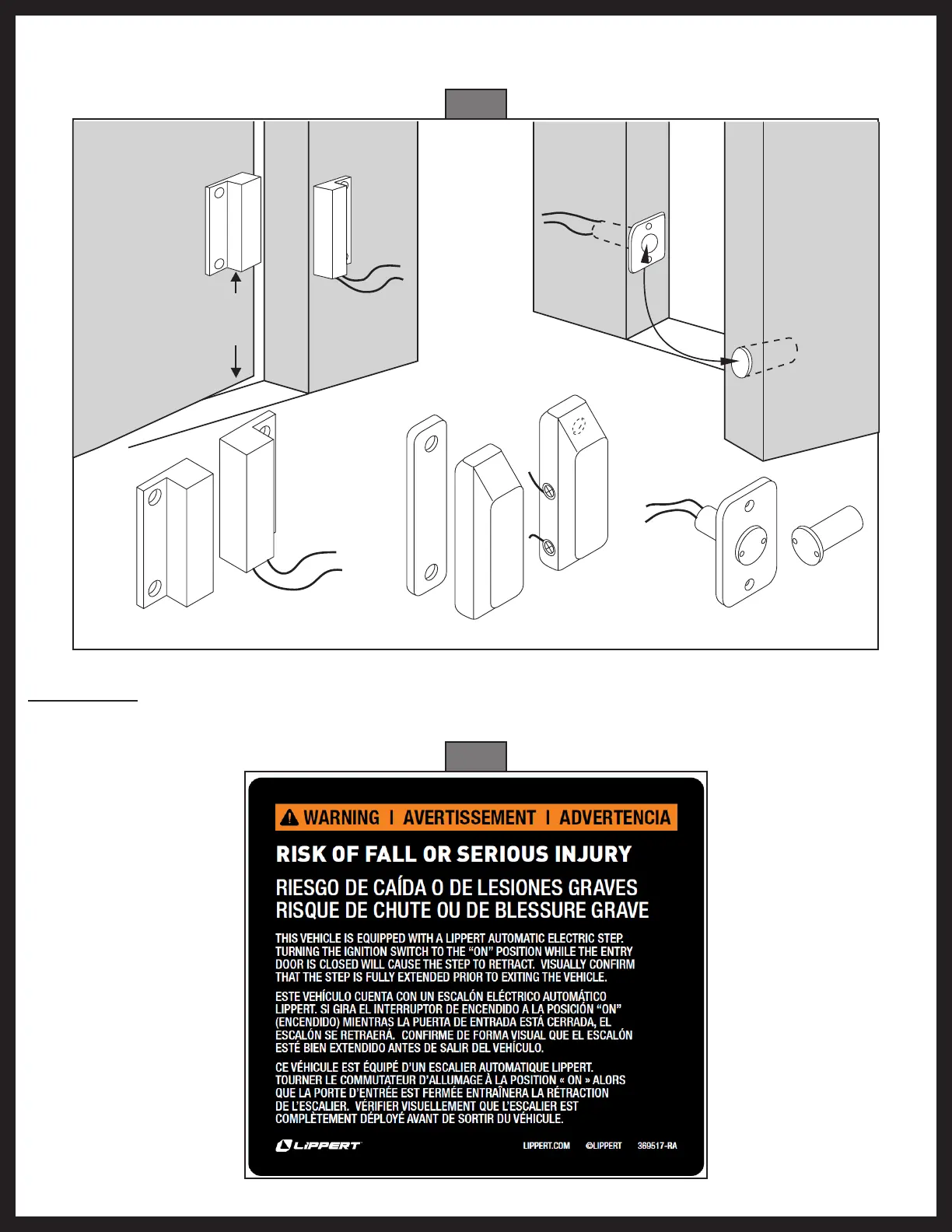

Refer to figure 2 for switch and magnet installation recommendations and common magnetic closure styles.
NOTE: Appearance of switches may vary depending on OEM.
Fig. 3
Safety Label
Install the safety WARNING sticker (Fig. 3) in a visible location on the inside of the door.
