36 37

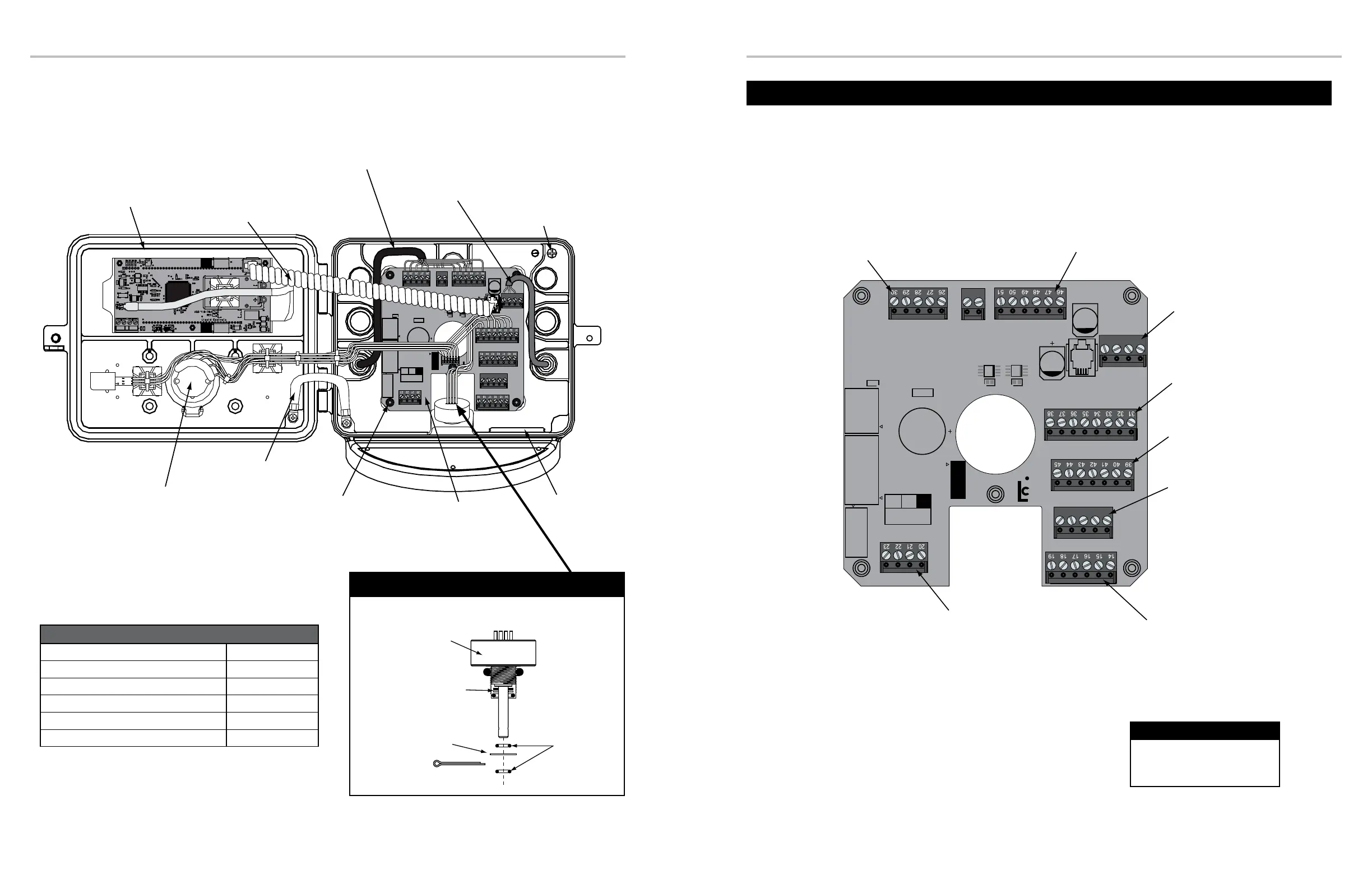

BILL OF MATERIALS - INTERNAL COMPONENTS

PRINTER SERIAL 485 TERMINAL

POWER

COUNTER

MH1

CTS RXD TXD RTS GNDGND 485+A485-B CTS RXD TXD RTS +VP

EARTH

AUX OUTPUTS

PULSE INPUTS

AUX I/O

GND

IN 1

OUT1

OUT2

OUT3

TEMPERATURE PROBE

ASSY

84040

REV.

RTD+S

RTD-D1

RTE-S

RTD+D

OUT4

OUT5

IN 2

IN 3

IN 4

+5V OUT

+VP

PGND

OUT6

+VP

SOL

+VPPGNDOUT7

+VF +VFIN5 OUT8GND

GND

+12-24V

ACC

MH4

J20

J3J2J1

J12

J15

TP1

J14

J18

J19

J10

J17

J11

MH5

MH3

MH2

1110 12 13

52 53 54 55 56

81833

Hollow O-ring Seal

81330

Coiled Cable Handset

81513040-UL

81713040-

IECEx / INMETRO / ATEX

Data Cable

71319

Desiccant

840405

CPU Board Assy

08158

Screw #6-32 x½" (4)

81512-

81712-IECEx / INMETRO / ATEX

Power Cable

08254

Ground Screw #8-32 x ¼"

81836

Ground Strap w/

Screws and Washers

81832

Rotary Switch & Harness Assy

Pulser Field Install Kit—

09380

Nylon Washer (2)

81994

PULSER, 100 PPR

Pulser Field Install Kit

82597

08189

Flat Washer

08201

O-ring (2)

Optional Items (not shown)

Description Part Number

Roll Printer Extension Cable 71237

Flash Cable 81885

Lap Pad Adapter 81514

Lap Pad E40301

Lap Pad with Adapter E403012

BILL OF MATERIALS - CPU BOARDS

81324

J1–5-Pin Connector

81456

J3–8-Pin Connector

81321

J13–6-Pin Connector

81322

J14–4-Pin Connector

84049

J6–4-Pin Connector

81392

J8–8-Pin Connector

81391

J12–7-Pin Connector

81837

J15–5-Pin Connector
