I/O Back Panel Introduction
cont…
(3) Parallel Port and Serial Ports (COM1/VGA)
This connector supports a COM port, VGA port, and Parallel port.
Devices (i.e. printer) can be connected into the Parallel port.
Devices (i.e. mouse and modem etc. can be connected into the Serial ports).
(4) Game Port
This connector supports joystick, MIDI keyboard and other related audio devices.
(5) Audio Connectors
Once onboard audio driver has been installed, the speakers may be connected into the Line out jack,
audio devices such as CD-ROM etc., and a microphone into the MIC in jack.

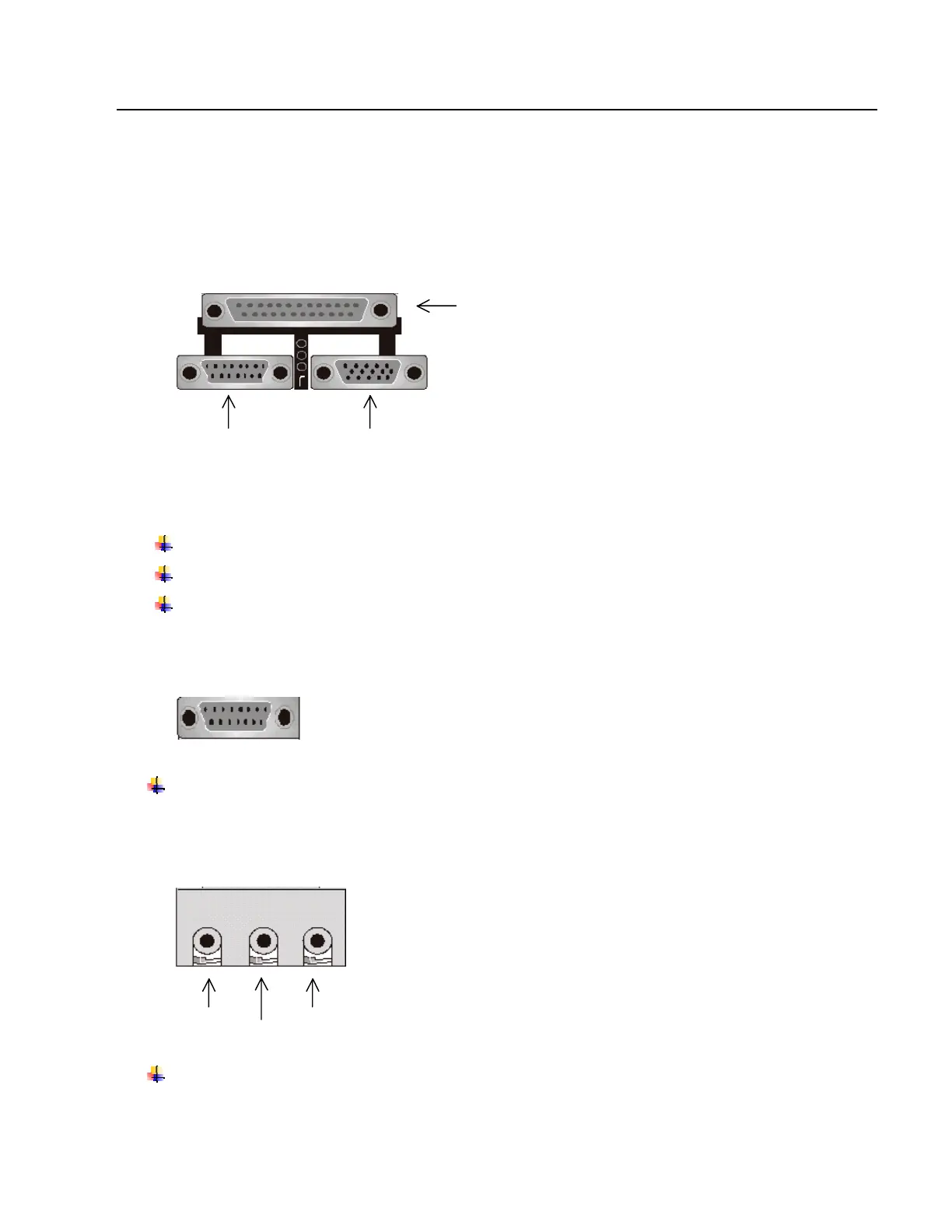

Parallel Port (25 pin Female)
COM 1 VGA
Serial Ports (9 pin Male)
Line out
Line In
MIC in
