LiteDimmer Spectrum AC600
QUICK-START GUIDE
The LiteDimmer Spectrum AC600 is a new class of
dimmers made specifi cally with Auroris in mind.
Complete with local control and new communication
protocols, this dimmer can control 12 large format
pixels, making pixel mapping large overhead areas
easier than ever.
Specially designed with advanced processing power,
integrated Ethernet switch, expanded memory, and a
faster processor, this new hardware allows for Ethernet-
based communication protocols such as Art-Net
and sACN, advanced color control, and cutting-edge
software features. An integrated USB-A port enables
easy updates that will bring new, innovative software
for years to come.
1
2
6
4
7
8
11 12 13
5
3
9
10
17
16
15
14
OLED Display
Left Encoder
Right Encoder
Power LED Indicator
Data LED Indicator
Function Buttons
3-Position Rocker Switch
USB-A Port
Wireless Antenna
Cooling Fan
EtherCon Ports
PDX Connector
DMX In Connector
DMX Through Connector
28-Pin Connector
Power Switch
PowerCon Connectors
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.

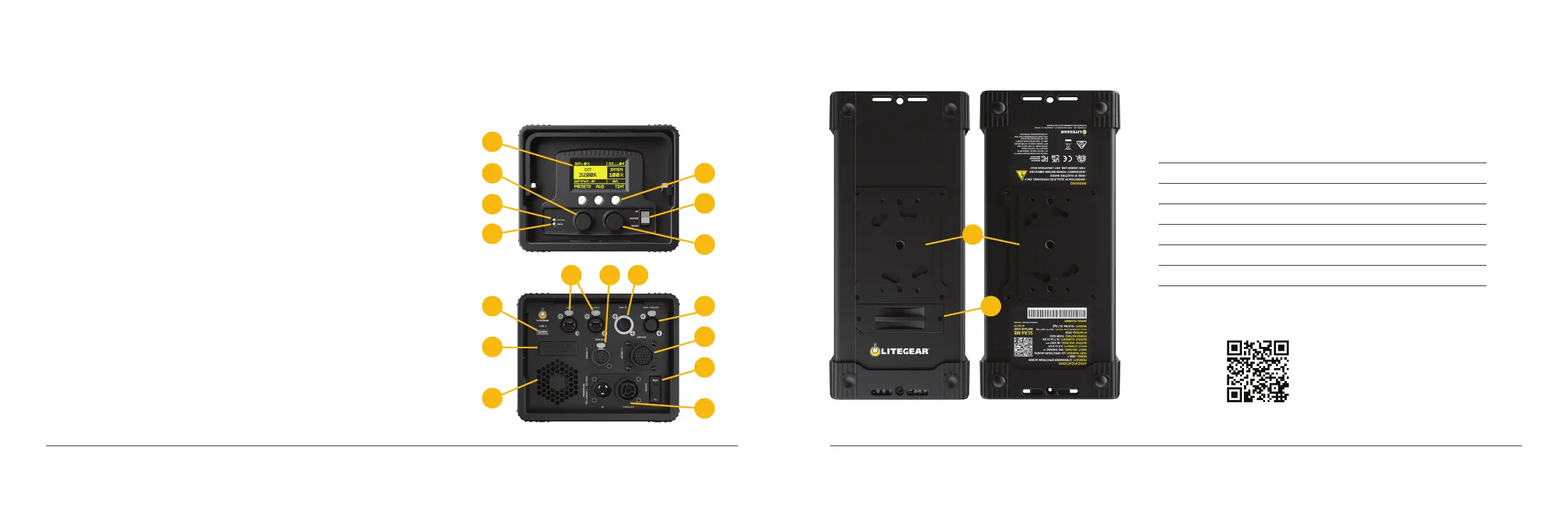

FRONT PANEL:
BACK PANEL:
2
1
K-Mount Plate Fuse Access Port1. 2.
SCAN BEFORE USE OR GO TO
LITEGEAR.COM/INFO_LDSAC600
TOP BOTTOM
LITEDIMMER SPECTRUM AC600 SPECIFICATIONS
Input Voltage: 100-240VAC, 50/60 Hz
Input Current: 4.5A to 9A
Output Voltage: 48VDC
Output Current: 14.7A to 21A
Weight: 12.6 lbs (5.7 kg)
Dimensions: Height: 5.8 in(147.3 mm) Width: 7.2 in(182.9 mm) Length: 15.7 in(388.8 mm)
Power: 700W Maximum
Certifi cations: ETL, CE, UKCA, FCC
