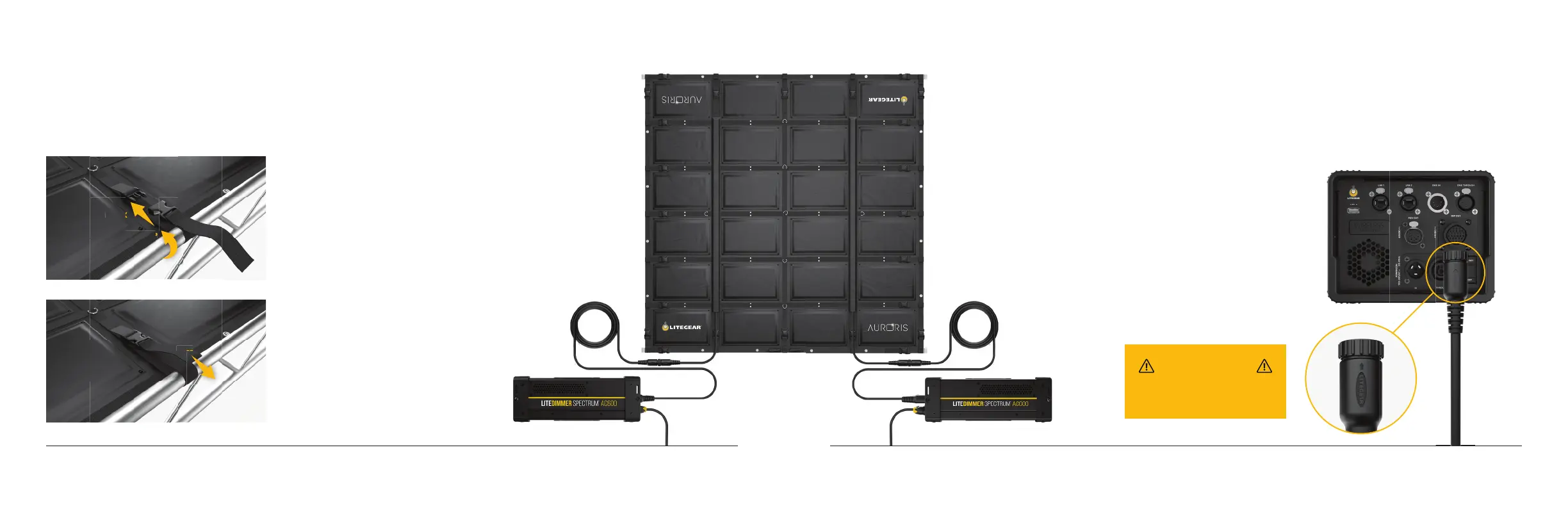

Set-Up
To secure Auroris to ladder truss,
loop strap around truss and
connect buckles with a click.
Ensure the buckle is fully inserted
with both prongs locked in place.
To tighten, pull strap horizontal
using normal force.
Do not pull with an upwards
angle or with excessive force.
STEP 1
STEP 2
Securing Auroris to Ladder Truss
Arrow on cable must be oriented
to the top when connecting
28-pin cable to dimmer.
Insert the cable connector into
dimmer, rotate the locking ring
clockwise 1/4 turn.
STEP 1
STEP 2
Connecting 28-Pin Cable to Dimmer
WARNING
INCORRECT ORIENTATION
MAY CAUSE DAMAGE TO PINS
LOOP
CLICK
PULL
Note:
Auroris V functions
with 1 lite dimmer
Auroris and Dimmer
not to scale
