3.3 Keypad and Terminal Cover Installation
It is not necessary to remove the keypad before wiring. You just need to loosen the terminal
cover screw and remove the terminal cover. After wiring, affix the terminal cover back in
position and tighten the screw. For wiring instructions and screw tightening torque please refer
to Chapter 4.

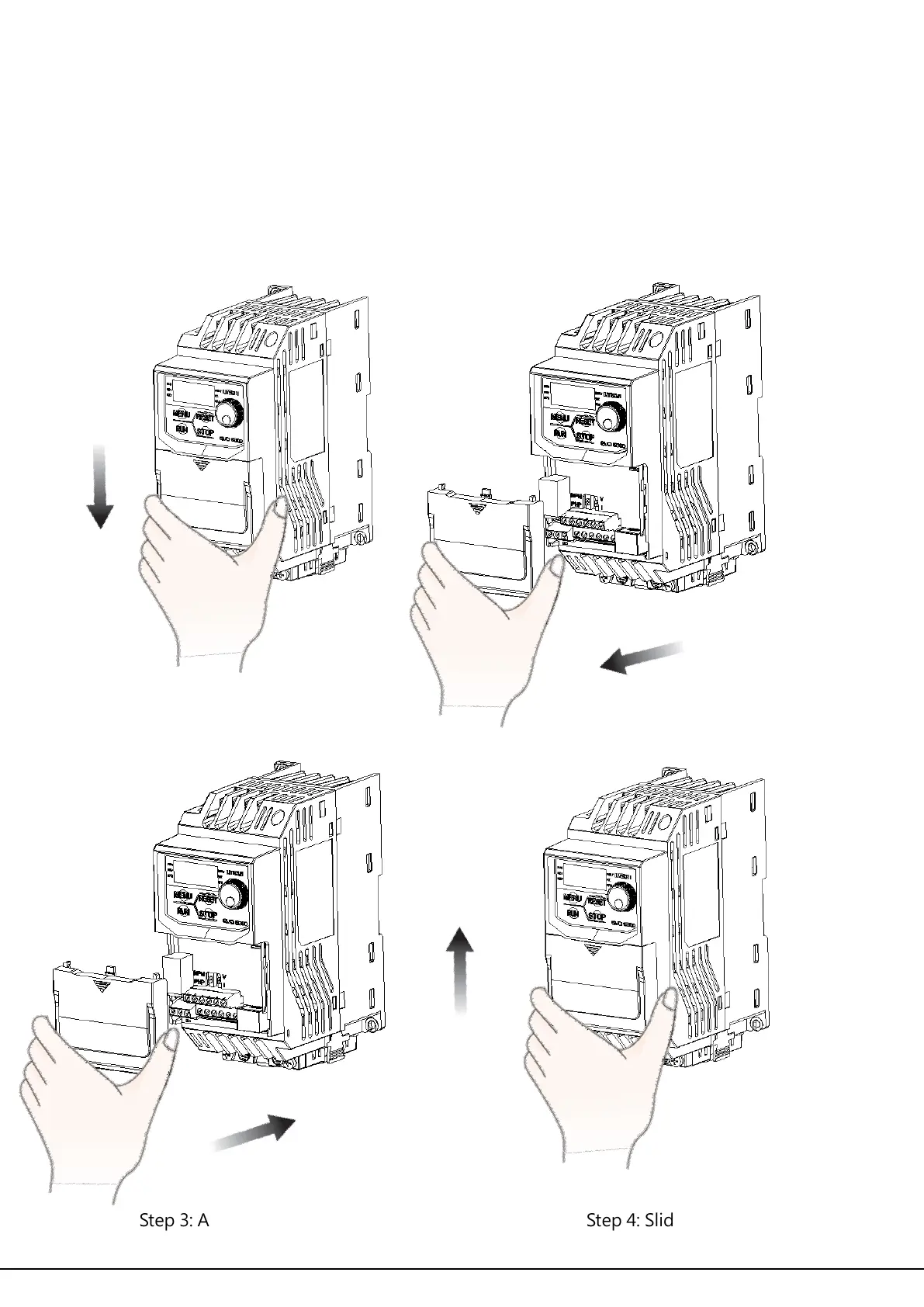

Step 1: Slide the terminal cover down Step 2: Remove the terminal cover
Step 3: Affix the Terminal Cover After Wiring Step 4: Slide the terminal up
