5.3.3 Keypad Programming

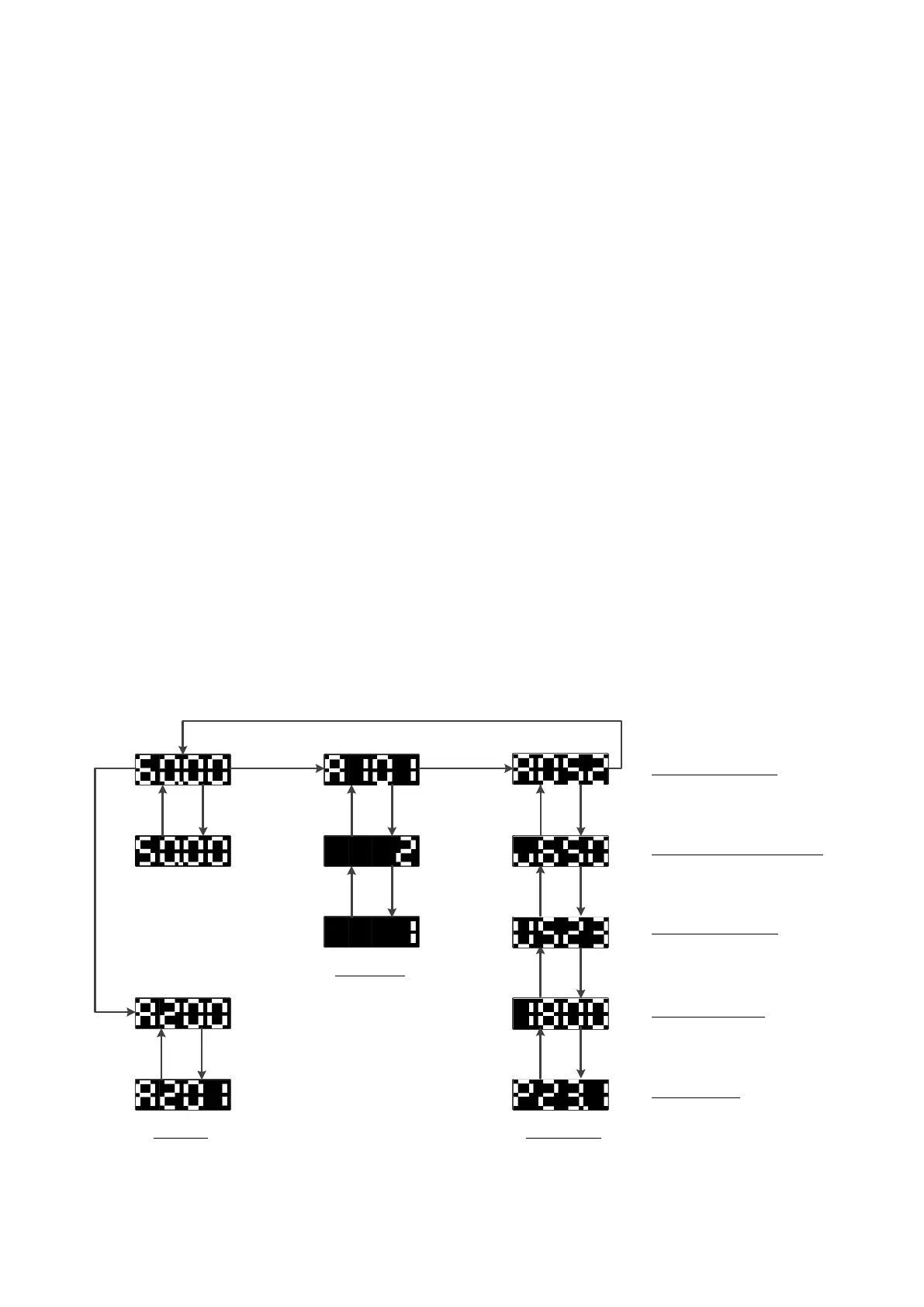

 Keypad Display Menu Structure
A. Standard setting mode: Press MENU to switch among monitor group, A1-00
parameter group and A2-00 user-defined parameter group. Press ENTER, MENU,
Non-slip setting dial, and RESET to monitor and edit settings.
B. Holding MENU for 3 seconds for entering User Parameter A2-00
C. During-operation setting mode: Durirng operation in Local mode, use the non-slip
setting dial to change the drive output frequency.
D. Holding Non-slip setting dial for 3 seconds in menu level can enter forward and
reverse switching page, for more detail please refer to parameter b1-13.
Menu Menu
Menu
Up/DownEnter EnterMenu/Enter
Menu/Enter Up/Down
Up/Down
Up/Down
Up/Down
Up/Down
Up/DownMenu/Enter
Menu ( 3 sec )
U1-03 (Output Current)
U1-06 (Main Circuit DC Voltage)
U1-05 (Output Voltage)
U1-04 (Motor Speed)
AI1 (Percentage)
User Para. Monitor Para.
Para. Setting
