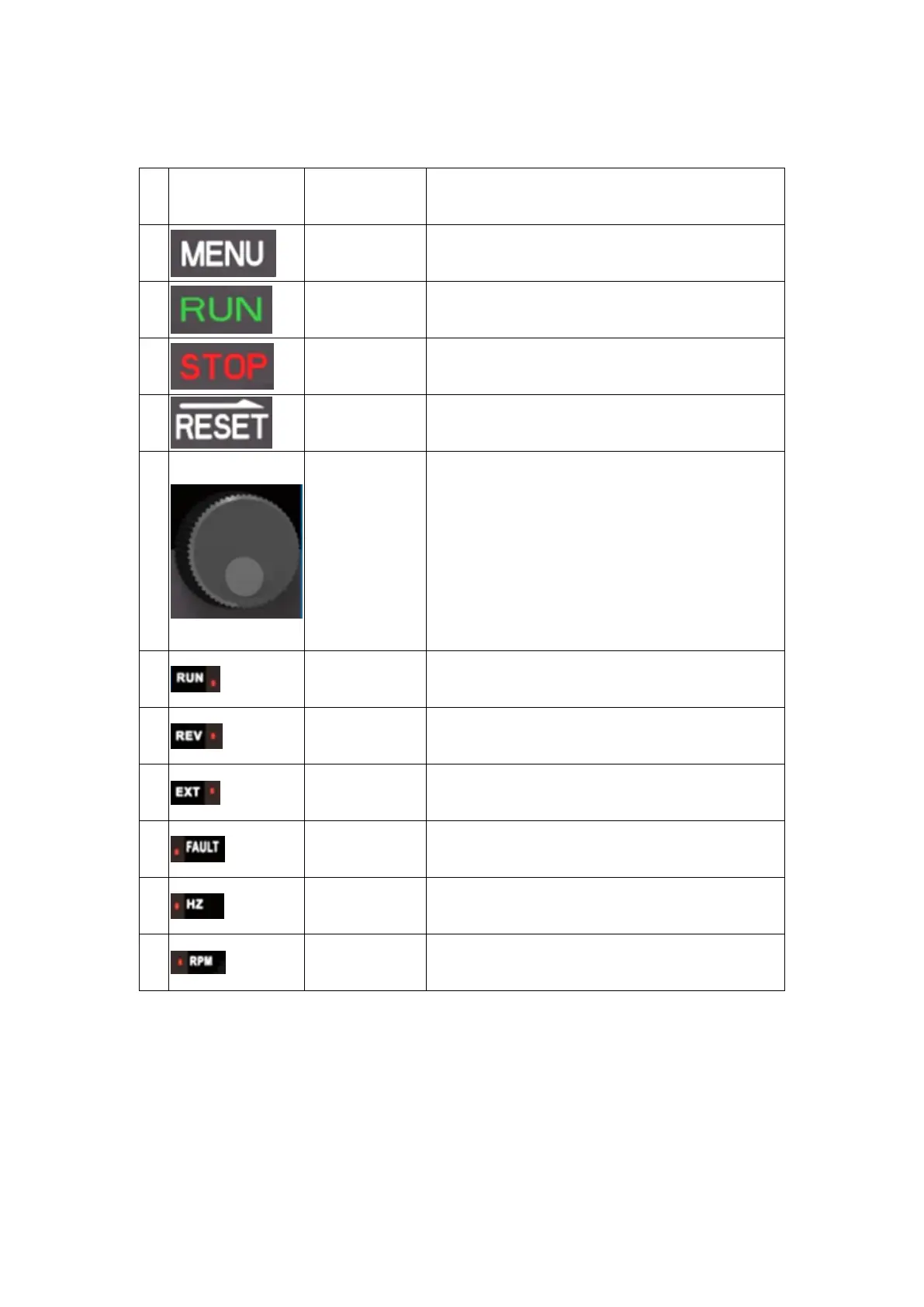

Table 5.3.1 Keypad Keys and Displays
No
Display
Name
Function
1
MENU Key
 Enters or exits the parameter group
 Switches the displayed menu
2
RUN Key
Forward/reverse selection
3
STOP Key
Stops the drive. Refer to Table 5.1.2.2
4
RESET Key
 Moves the cursor to the right
Resets the drive to clear a fault situation
5
Non-Slip
Setting Dial
Press it as “ENTER” key:
 Enters parameter value, parameter and
setting
 Enters parameter setting menu.
 Confirms the frequency set by the dial
Press it as “Dial”key:
Increases or decreases parameter numbers,
setting value and frequency
6
RUN Light
Refer to Table 5.3.2.2
7
REV Light
Refer to Table 5.3.2.2
8
EXT Light
Refer to Table 5.3.2.2
9
Fault Light
Refer to Table 5.3.2.2
10
Hz Light
Refer to Table 5.3.2.2
11
RPM Light
Refer to Table 5.3.2.2
