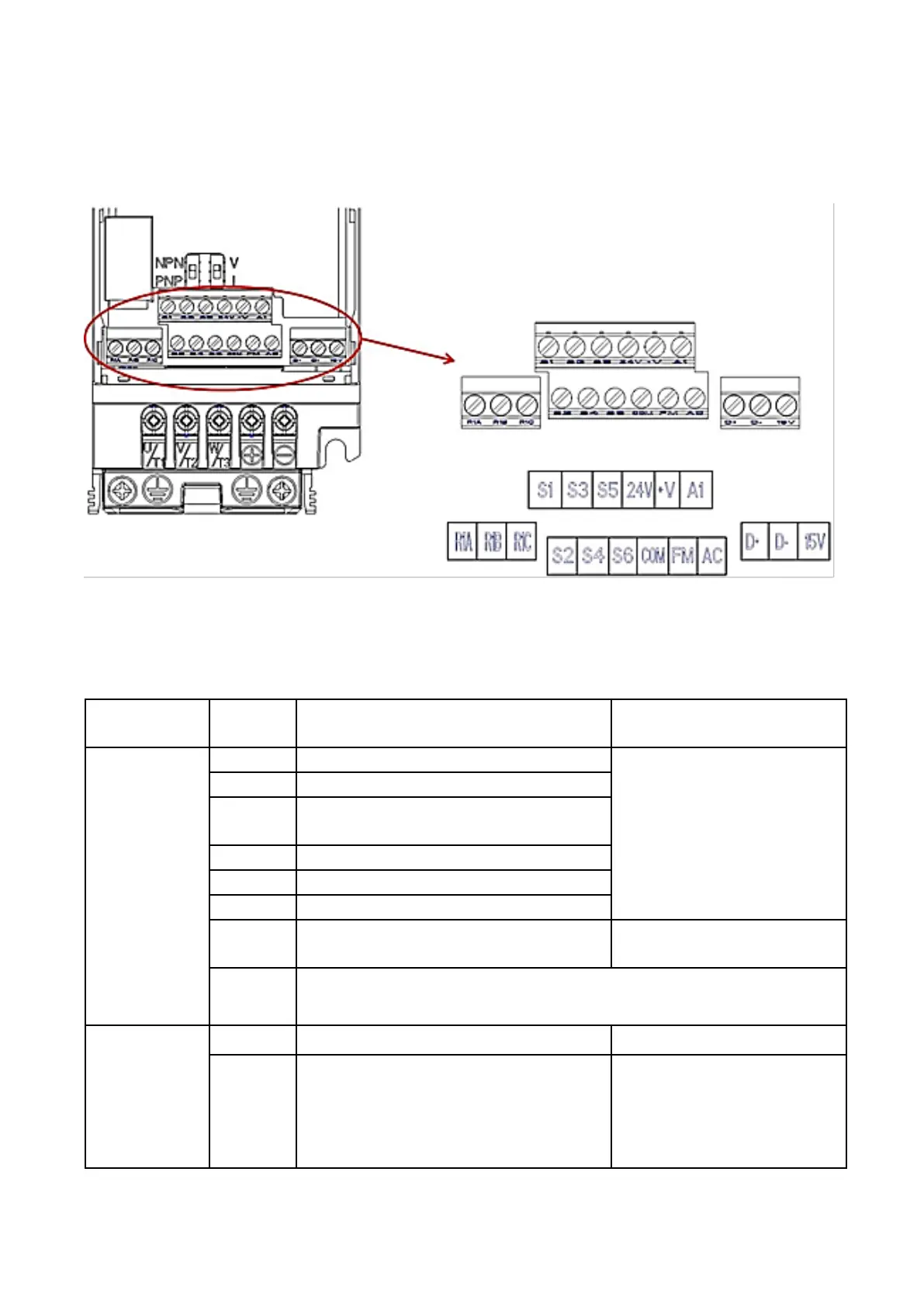

4.3.1 Control Circuit Terminals
4.3.1.1 Input Terminals
Table 4.3.1.1 Control Circuit Input Terminal
Terminal Type
Terminal
Code
Terminal Name
Terminal Description
Multi-Function
Digital Inputs
S1
Digital input terminal 1 (forward/stop)
Photocoupler, 24 V, 8 mA.
Use NPN/PNP switch to select
multi-function digital input
type. The default is NPN mode.
S2
Digital input terminal 2 (reverse/stop)
S3
Digital input terminal 3 (external fault
1)
S4
Digital input terminal 4 (fault reset)
S5
Digital input terminal 5 (Jog)
S6
Digital input terminal 6 (Baseblock)
24V
+24V auxiliary power terminal for analog
input
+24V 25mA
COM
Digital input common terminal for NPN/PNP mode switch. Select the mode
correctly when connecting.
Multi-Function
Analog Inputs
+V
Auxiliary power terminal +10V
Analog input power+10V
A1
Analog input terminal 1
(main frequency command)
Voltage input:
0 to 5V or 0 to 10V
Current input:
0 or 4 to 20mA
