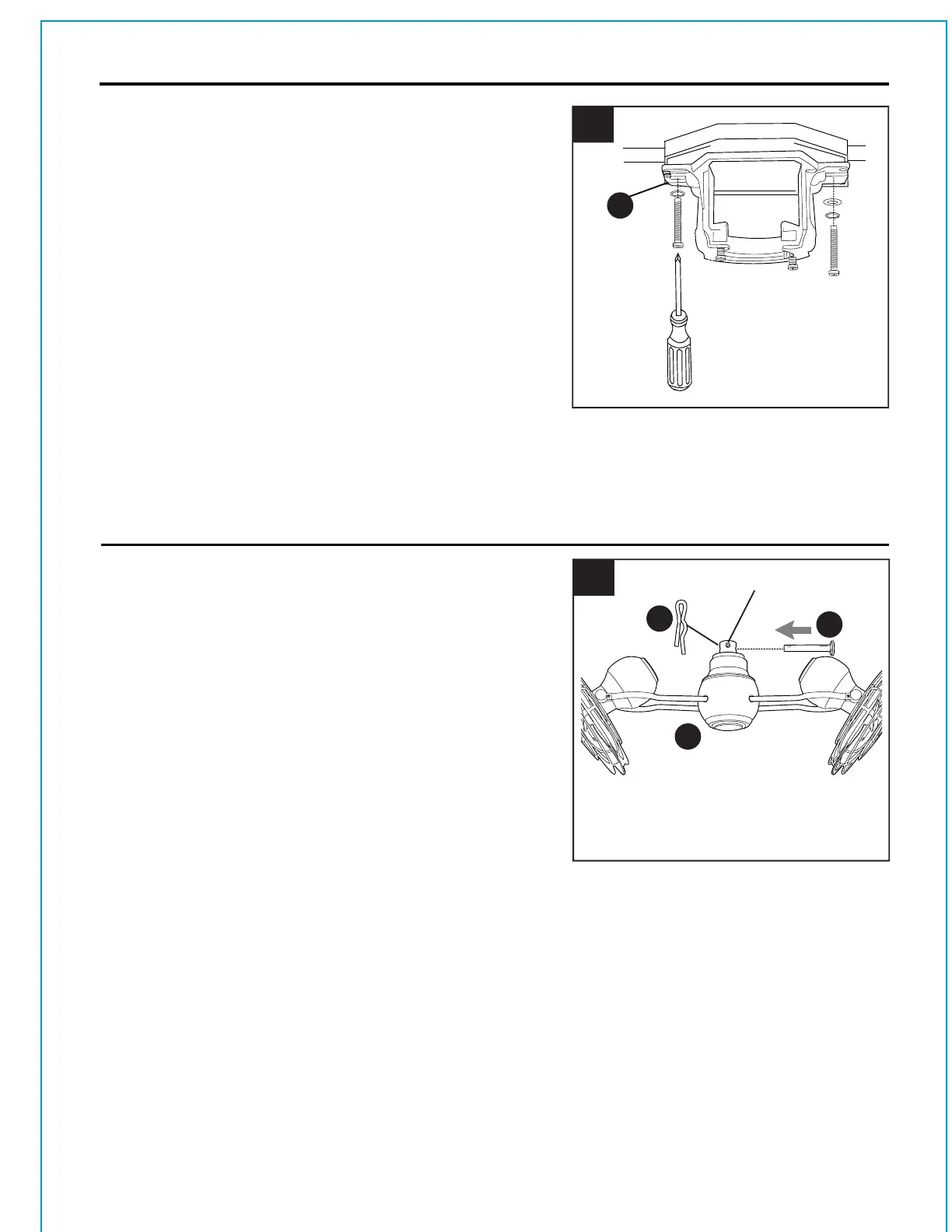

Remove pin (E) and clip (F) from yoke at top of
motor assembly (D) and partially loosen
preassembled set screws.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. (2.44 m) high or higher. For
taller ceilings you may want to use a longer downrod
(not included) than the one provided. A longer
downrod is sometimes necessary to ensure proper
blade clearance.
1.
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers, and flat
washers provided with the outlet box.
*NOTE: It is very important that you use the
proper hardware when installing the mounting
bracket (C) as this will support the fan.
4.
4
INITIAL INSTALLATION
FAN MOUNTING
7
C
Set Screw
D
E
F
1
To Next Page
