Installation Instructions
WST LED 2016 Premium Back Box
©2016 Acuity Brands Lighting, Inc.
All Rights Reserved.

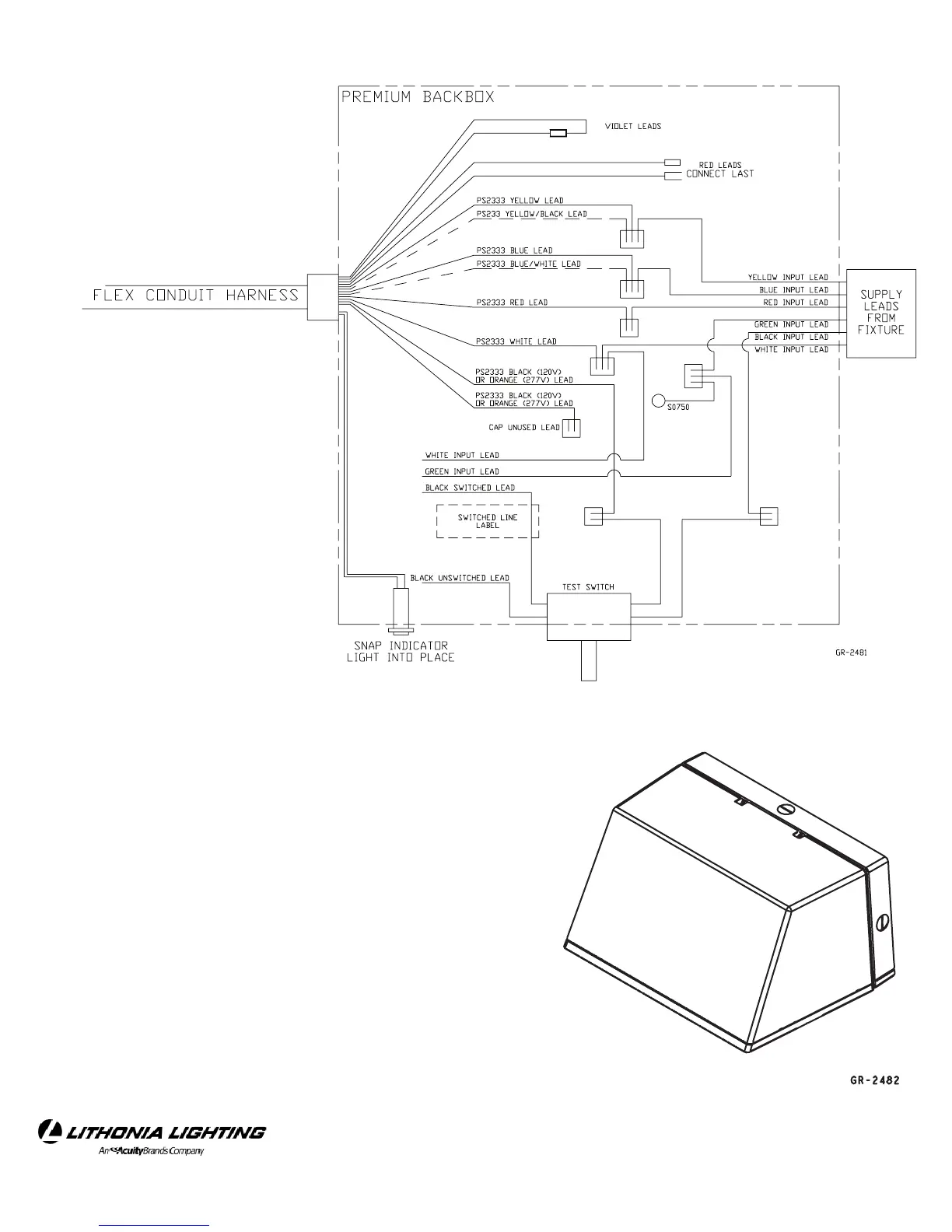

FIGURE 4b:
E23WHR wiring diagram (GR-2481)
If any NPT entries are not used (figure 5):
Thread plugs in until they are tight and seal with silicon
sealant (sealant not provided).
Feed supply wired through backbox plate and reinstall
using supplied 8-32 screws.
Be sure no wires are being pinched and that gasket is
securely placed in channel.
Refer to IM-401 for installation instructions of fixture
to backbox plate via the preinstalled fixture mounting
bracket and wall mounting plate.
figure 5
