Modi Buggy™ Edition 7 p. 21

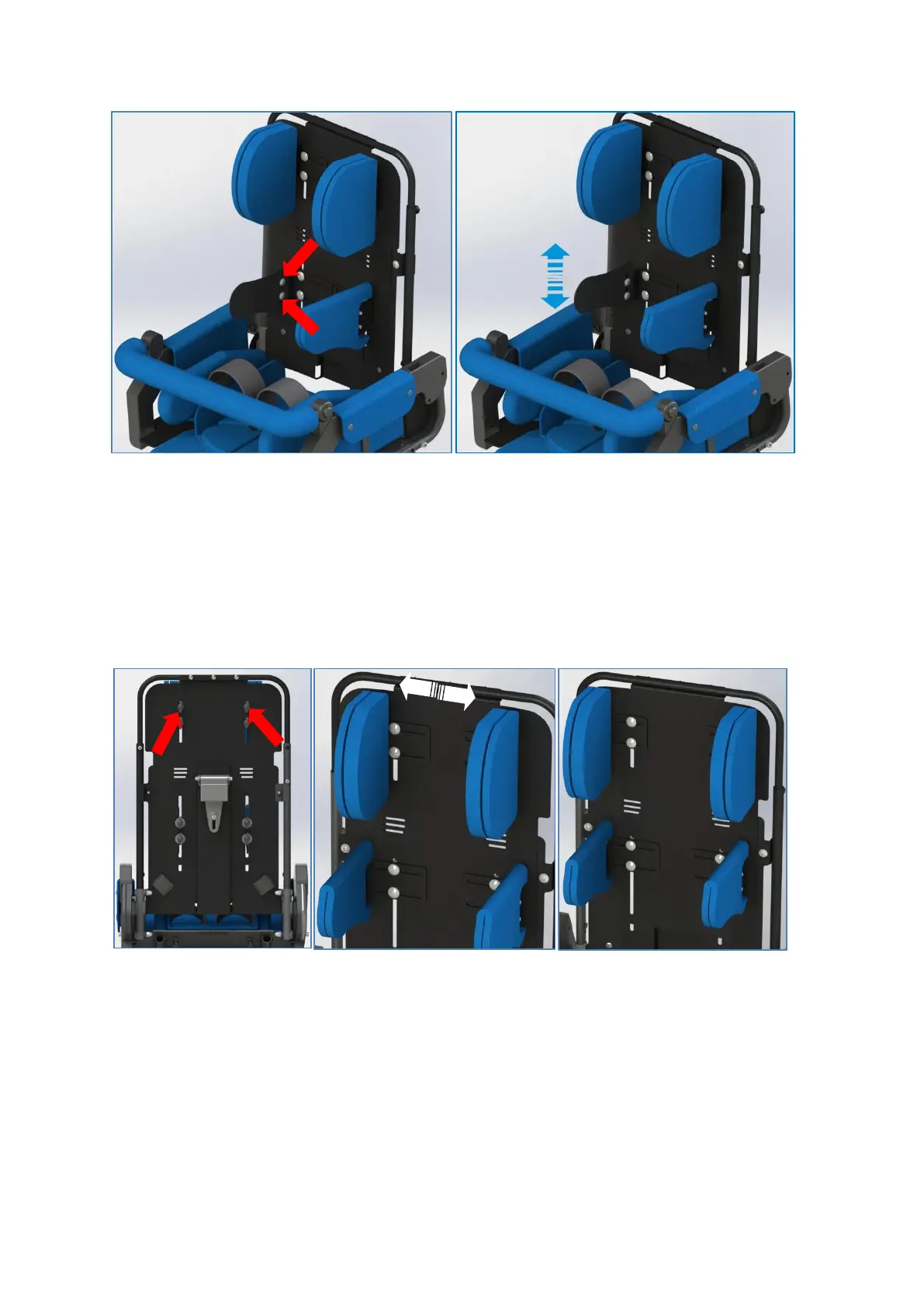

Fig. 27 Asymmetrical height adjustment
For asymmetrical height adjustment of the side supports, loosen the locking screws and set the
desired height of the supports. Fig. 27. Next tighten the locking screws. Maximum height
difference is 20 mm. Greater asymmetry can be achieved by changing the side supports height
through loosening the locking knobs Fig. 26.
8.12 Head supports adjustment
Fig. 28 Adjusting the width of the head supports
Loosen the locking knobs Fig. 28 and set the desired width of the head supports in the range of 15
to 20 cm and its height ± 2 cm Fig. 28. Tighten the locking knobs.
